Home > Lights & Lighting > LED Encapsulation Series > Lamp LED > 0.2W 4.8mm / 5mm Strawhat LED With 120 Degree Viewing Angle

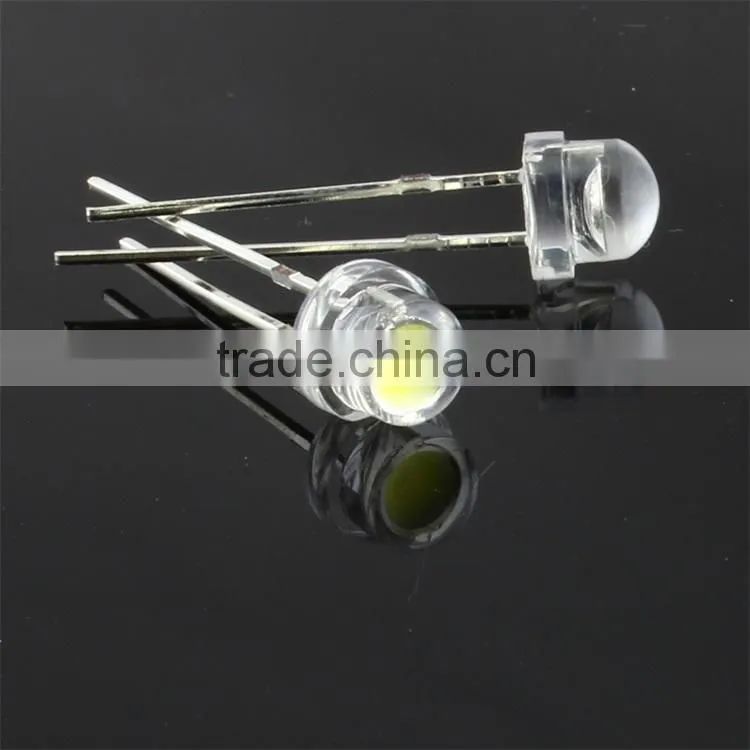

0.2W 4.8mm / 5mm Strawhat LED With 120 Degree Viewing Angle
US$ 0.01 - 0.02
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-5013NW
Chip Material:
InGaN
Emitting Color:
Other, Warm white / pure white / cool white
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Transparent Yellow 5mm Oval Led Diode Water Clear LensUS$ 0.02 - 0.03MOQ: 1000 Pieces -
546 5mm Oval Led Light Diffused Color 70/60 DegreeUS$ 0.01 - 0.02MOQ: 1000 Pieces
-
590nm - 595nm Color Diffused Yellow Green Oval Led 5mm DiodeUS$ 0.02 - 0.03MOQ: 1000 Pieces
-
5mm Flat Top Dip Power Led Diode 8 - 9lmUS$ 0.01 - 0.02MOQ: 1000 Pieces
-
5mm Christmas Light Concave LED Diode 6000K - 7000KUS$ 0.01 - 0.02MOQ: 1000 Pieces
Model Number
TDS-5013NW
Chip Material
InGaN
Emitting Color
Other, Warm white / pure white / cool white
Luminous Intensity
8000-10000mcd
Luminous Flux(lm)
22-25lm
Optical Attenuation(%)
0.0005
Power
Other, 0.2W, 0.2W
Power Dissipation
0.001
Color Rendering Index(Ra)
75
Color Temperature
2000-25000K
Operating Temperature(℃)
-20, 80
Storage Temperature(℃)
-30, 70
Place of Origin
Jiangsu, China
Brand Name
TDS
Certification
CE
Product Description
| Part Number | Chip Material | λD(nm) CCT Typ. |
POWER | lm | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ |
|||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 5-6lm | 2000 | 2200 | 3.0 | 3.4 | 120-140 | |
| TDS-5013NW4CN | InGaN | 2700-20000K | 0.06W | 6-7lm | 2400 | 2600 | 3.0 | 3.4 | 120-140 | |
| TDS-5013PW4CN | InGaN | 2700-20000K | 0.06W | 7-8lm | 2800 | 3000 | 3.0 | 3.4 | 120-140 | |
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 8-9lm | 3200 | 3500 | 3.0 | 3.4 | 120-140 | |
| TDS-5013HR2CN | InGaN | 620-630NM | 0.06W | 4-5lm | 1400 | 1600 | 1.9 | 2.3 | 120-140 | |
| TDS-5013AY3CN | InGaN | 580-595NM | 0.06W | 5-6lm | 2000 | 3000 | 1.9 | 2.3 | 120-140 | |
| TDS-5013RB2CN | InGaN | 450-465NM | 0.06W | 3-4lm | 1200 | 1400 | 3.0 | 4.0 | 120-140 | |
| TDS-5013BG5CN | InGaN | 515-530NM | 0.06W | 5-6lm | 2000 | 3000 | 3.0 | 4.0 | 120-140 | |
The Following is the Data of the 0.2W 5mm Strawhat LED.(60mA 3-3.2V With Bigger Reflector)
| Part Number | Chip Material | λD(nm) CCT Typ. |
POWER | lm | IV(mcd)@IF=60mA | VF(V)@IF=20mA | Viewing Angle 2θ½ |
|||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013NW2CN | InGaN | 2000-15000K | 0.2W | 19-22LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
| TDS-5013NW3CN | InGaN | 2000-15000K | 0.2W | 25-30LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
