Home > Lights & Lighting > LED Encapsulation Series > Lamp LED > 460 - 470nm Blue 5mm Oval Led Diode Without Stopper
460 - 470nm Blue 5mm Oval Led Diode Without Stopper
US$ 0.01 - 0.02
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-506X Series
Chip Material:
InGaN
Emitting Color:
Blue
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.2W 4.8mm / 5mm Strawhat LED With 120 Degree Viewing AngleUS$ 0.01 - 0.02MOQ: 1000 Pieces -
Transparent Yellow 5mm Oval Led Diode Water Clear LensUS$ 0.02 - 0.03MOQ: 1000 Pieces
-
546 5mm Oval Led Light Diffused Color 70/60 DegreeUS$ 0.01 - 0.02MOQ: 1000 Pieces
-
590nm - 595nm Color Diffused Yellow Green Oval Led 5mm DiodeUS$ 0.02 - 0.03MOQ: 1000 Pieces
-
5mm Flat Top Dip Power Led Diode 8 - 9lmUS$ 0.01 - 0.02MOQ: 1000 Pieces
Model Number
TDS-506X Series
Chip Material
InGaN
Emitting Color
Blue
Luminous Intensity
800-1000MCD
Luminous Flux(lm)
3-4lm
Optical Attenuation(%)
0.0005
Power
Other, 0.06W, 0.06W
Power Dissipation
0.001
Color Rendering Index(Ra)
75
Color Temperature
455-460-470nm
Operating Temperature(℃)
-20, 80
Storage Temperature(℃)
-30, 70
Place of Origin
Jiangsu, China
Brand Name
TDS
Certification
CE
TDS Recommend you to How to Select / Order The LED ?
1. With stopper / Without Stopper
2.Lens Color: water clear / diffused
3.Viewing angle: 70/40 90/50 110/50
3.Color: Red / Green / Blue / Yellow Green / White / Pink
| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. |
Lens Color |
IV(mcd)@IF=20mA | VF(V)@IF=20mA |
Viewing Angle 2θ½ |
|||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5067AR3CN | AlGaInP | Red | 625 | Colored Diffuse | 1000-1600 | 1.9 | 2.3 | 70/40 | ||
| TDS-5067EG5CN | InGaN | Green | 520 | Colored Diffuse | 3000-4000 | 3.0 | 3.4 | 70/40 |
||
| DOUBLE COLOR | ||||||||||
| TDS-5069AR3CN | AlGaInP | Red | 625 | Colored Diffuse | 500-600 | 1.9 | 2.3 | 95/50 | ||
| TDS-5069EG5CN | InGaN | Green | 520 | Colored Diffuse | 1700-2500 | 3.0 | 3.4 | 95/50 | ||
| TDS-5069EB4CN | InGaN | Blue | 465 | Colored Diffuse | 400-500 | 3.0 | 3.4 | 95/50 | ||
| FULL COLOR SCREEN | ||||||||||
| TDS-506ACR3CN | AlGaInP | Red | 625 | Colored Diffuse | 800-1000 | 1.9 | 2.3 | 110/50 | ||
| TDS-506AEG5CN | InGaN | Green | 520 | Colored Diffuse | 1700-2500 | 3.0 | 3.4 | 110/50 | ||
| TDS-506AEB4CN | InGaN | Blue | 465 | Colored Diffuse | 400-500 | 3.0 | 3.4 | 110/50 | ||
| TDS-506AW5CN | InGaN | White | 6500K | Colored Diffuse | 3500-4000mcd | 3.0 | 3.4 | 110/50 | ||

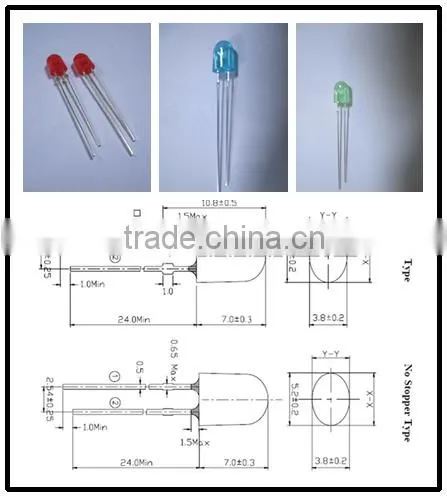

LED Dimension
Packaging & Shipping
Company View
Related Product
Send Inquiry to This Supplier
Business Type
Trading Company
Year Established
2015
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
