pre-expander1.automatic & Vacuum box forming
2.English touch screeen control
3.with CE

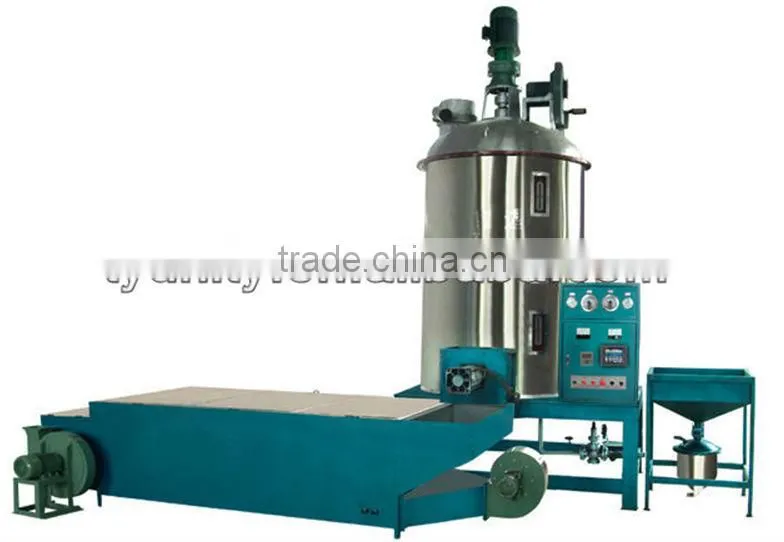

high quality pre-expander

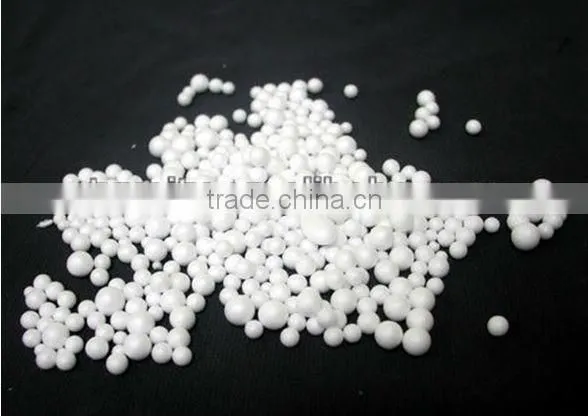

EPS Foam Balls Pre-expander
A. main features:
1.This machine adopts PLC programmable controller and touching screen to carry out automatic production from feeding, temperature control, ration, pressurizing and feeding.
2.Top-grade sealing foaming with constant pressure, high thermal efficiency, save 50% steam or above than continuous foaming machine
3.Adopt high-precision imported pneumatic control valve so that temperature can be controlled at ±1%, EPS grains are at same level with low water content.
4.Correct feeding method can assure even density
B. Technical Data
Items |
TypeUnit |
PSJ-500 |
PSJ-800 |
PSJ-1100 |
PSJ-1200 |
|
Chamber Size |
Diameter |
mm |
460 |
800 |
1100 |
1200 |
Height |
mm |
700 |
1200 |
1500 |
1500 |
|
Chamber Vol. |
m3 |
0.1 |
0.6 |
1.6 |
1.8 |
|
Foaming Density |
kg/m3 |
10-60 |
10-60 |
10-60 |
10-60 |
|
Production Efficiency |
kg/h |
20-50 |
60-100 |
150-300 |
200-400 |
|
Steam Inlet DN |
mm |
50 |
50 |
50 |
50 |
|
Steam Pressure |
Mpa |
0.4-0.8 |
0.4-0.8 |
0.4-0.8 |
0.4-0.8 |
|
Air-Compressed Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Inlet of steam |
mm |
50 |
50 |
50 |
50 |
|
Control Mode |
|
Electronic computation |
Electronic computation |
Electronic computation |
Electronic computation |
|
Drying Way |
|
Fluidized Bed |
Foaming Tank Drying |
Fluidized Bed |
Fluidized Bed |
|
Max. Contour Size |
mm |
2100×700×2400 |
1800×1300×3000 |
1800×2200×4600 |
1800x2200x4600 |
|
Machine Weight |
kg |
1500 |
2000 |
2500 |
3000 |
|
