Specifications
EPS shape forming machinetwo engineers to install and train
-spare parts for free
-PLC English control
China best price EPS shape forming machine

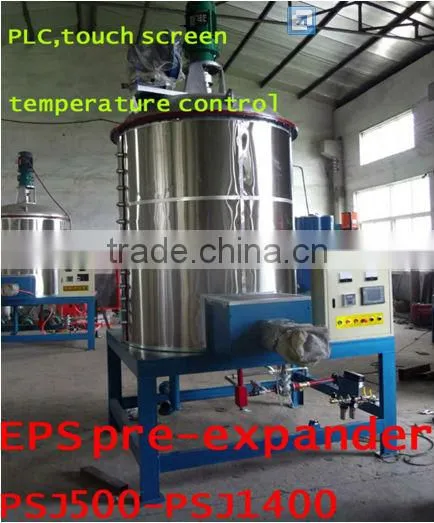

1)EPS Batch Pre-Expander
Foam making machine
Technical Data
Items |
TypeUnit |
PSJ-500 |
PSJ-800 |
PSJ-1100 |
PSJ-1200 |
|
Chamber Size |
Diameter |
mm |
460 |
800 |
1100 |
1200 |
Height |
mm |
700 |
1200 |
1500 |
1500 |
|
Chamber Vol. |
m3 |
0.1 |
0.6 |
1.6 |
1.8 |
|
Foaming Density |
kg/m3 |
10-60 |
10-60 |
10-60 |
10-60 |
|
Production Efficiency |
kg/h |
20-50 |
60-100 |
150-300 |
200-400 |
|
Steam Inlet DN |
mm |
50 |
50 |
50 |
50 |
|
Steam Pressure |
Mpa |
0.4-0.8 |
0.4-0.8 |
0.4-0.8 |
0.4-0.8 |
|
Air-Compressed Pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Inlet of steam |
mm |
50 |
50 |
50 |
50 |
|

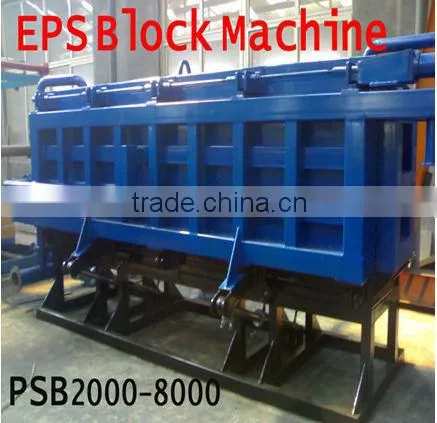

Foam making machine
Technical Data
Item |
Unit |
PSB-2000 |
PSB-3000 |
PSB-4000 |
PSB-6000 |
PSB-8000 |
Mould chamber internal size |
mm |
2040x1020x530 |
3060x1250x630 |
4080x1250x630 |
6100x1250x630 |
8160X1250X630 |
Mould chamber volume |
M3 |
1.10 |
2.41 |
3.21 |
4. 82 |
6.43 |
Product density |
Kg/m3 |
4-45 |
4-45 |
4-45 |
4-45 |
4-45 |
Product efficiency |
Piece/h |
2-9 |
2-9 |
2-9 |
2-8 |
2-8 |
Steam pressure |
Mpa |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |

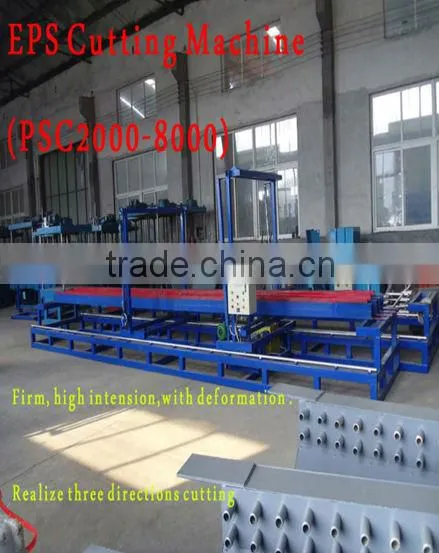

3) EPS Cutting Machine
Adopts high quality rectangle steel pipe which features in reasonable structure, firm,high intension, without deformation. Equipped with horizontal, vertical and block cutting equipment. Stable movement, precise cutting size and adjustable. Realize three directions cutting.
Foam making machine
