Home > Manufacturing & Processing Machinery > Plastic Machinery > Thermoforming Machine > Automatic EPS Production Line With Best Quality

Automatic EPS Production Line With Best Quality

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Foaming Machine

Plastic Type:

EPS

Contact Supplier Request Quote Chat Now

Longkou Unity Machinery Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Foaming Machine

Plastic Type EPS

Automatic Yes

Place of Origin Shandong, China

Brand Name TY

Model Number PSZ-1220

Voltage 380V

Power(W) 4KW

Weight 4500x1800x2900MM

Dimension(L*W*H) 4300KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

EPS Production Line
one year guarantee,spare part for free
-two engineers for installation
-lifetime service

Automatic EPS Production Line with Best Quality

Product Introduction

1. PS foam sheet extruder: make PS foam sheet from raw material

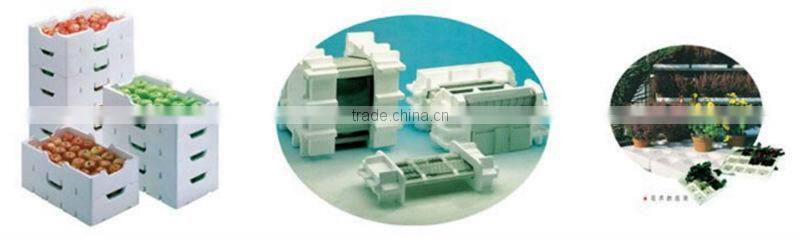

2. Fully auto forming and cutting machine: make PS sheet to finished products, such as PS foam tray, PS foam box etc (we can design mould according to customer requirements)

3. Plastic recycle machine: recycle waste products to granules, the can mix with new material and put into

PS foam sheet extruder again.

Main Technical parameters

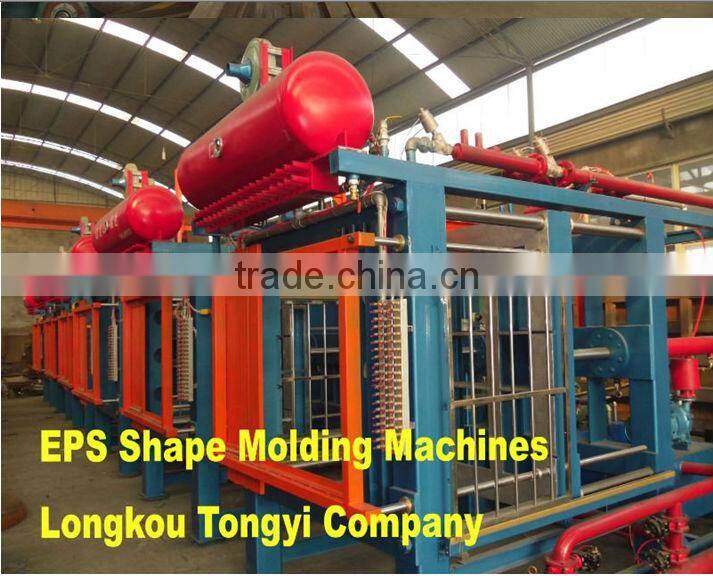

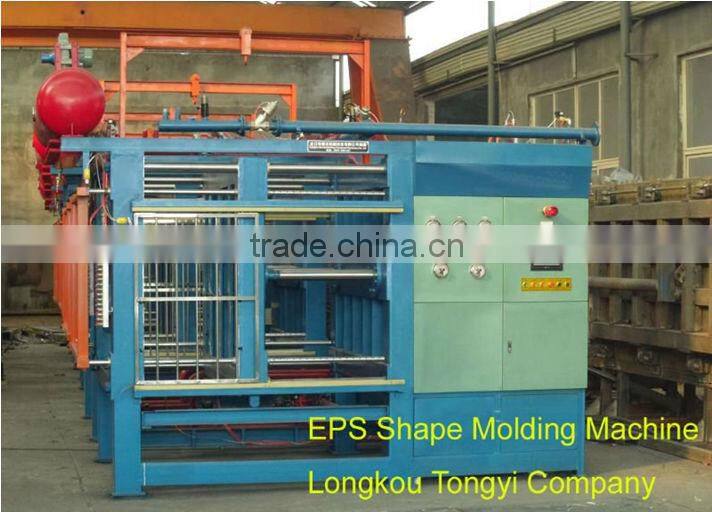

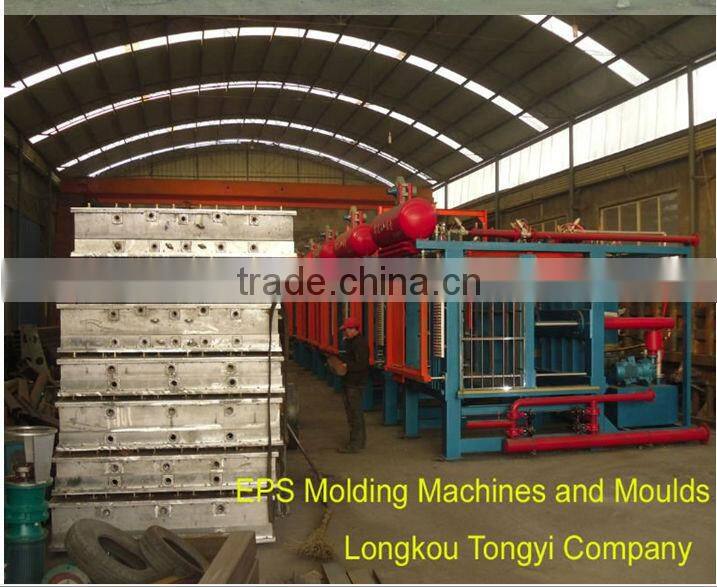

Main feature of EPS Shape Molding Machine:

1.It adopts Japan Mitsubishi Corporation PLC, imported touch screen, full English display, graphical interfaces intelligent control, achieve man-machine conversation.

2. It can carry out full automatic, semi-automatic, middle startup and manual operation.

3. Taiwan AIRTCA hydraulic system is stable run, low noise, high clamping force.

4. Vacuum system accelerates product shaping speed, shorts the cooling time, reduce product water content.

5. Optimized design is clear and easy with high intensity and high performance-price rate.

6. This machine can carry out heating, cooling, feeding and ingot stripping process to adapt to different EPS products.

7. Perfect malfunction checkout system and motor protecting system which guarantees safe running of equipment.

Item/Type	Unit	PSZ-900	PSZ-1220	PSZ-1420	PSZ-1520	PSZ-1620	PSZ-1720	PSZ-1820	PSZ-2000
Mould Dimension	mm	900x800	1200x1100	1400x1300	1500x1400	1600x1500	1700x1600	1800x1700	2000x1900
Product Dimension	mm	750x650 x350	1050x850 x350	1220x1100x350	1320x1200 x350	1420x1300 x350	1610x1400 x350	1610x1400 x350	1850x1650 x350
Max Mould Opening	mm	1200	1200	1400	1400	1400	1400	1400	1400
Mini Mould Opening	mm	150	150	200	200	200	200	200	200
Inlet of steam	mm	80	80	80	80	80	80	80	100
Cooling water Inlet	mm	80	80	80	80	80	80	80	100
Compressed Air inlet	mm	80	80	80	80	80	80	80	80
Steam Pressure	Mpa	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7	0.5-0.7
Cooling Water Pressure	Mpa	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Air Pressure	Mpa	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Fluid Drive Pressure	KW	3.6	5.5	5.5	5.5	5.5	5.5	5.5	7.5
Amount of Tube	Num.	16	20	40	40	40	40	40	40
Vacuum Pump Power	KW	4	4	4	4	5.5	5.5	5.5	5.5
Vacuum pump Inspiratory capacity	m3/h	165	165	165	165	230	230	230	230
Overall dimension	mm	4500x1500 x2400	4500x1800 x2900	4600x2000 x3100	5000x2100 X3100	5000x2200 X3200	5000x2300 X3300	5000x2400 X3400	5000x2600 X3600
Weight	Kg	3800	4300	4800	5000	52000	5700	6200	6500
