Home > Products > Eps machine > mono layer extrusion EPS foam block machine line with vacuum
mono layer extrusion EPS foam block machine line with vacuum
- 100 Set / Sets per Month
- QINGDAO
- T/T
Product Details
Condition: | New | Automatic Grade: | Automatic | Place of Origin: | China |
Brand Name: | TY | Voltage: | 380V |
Packaging Details
EPS foam block machine line with vacuum
standard exported packing
Product Description
Specifications
EPS foam block machine line with vacuumEps machine for building
PLC&touch screen
-EPS block molding machine
mono layer extrusion EPS foam block machine line with vacuum
EPS production line mainly includes three parts:
1.EPS pre-expander: it is used in first foam for polystyrene material which has deat with the foaming agent (just is pre-foam)
2.EPS block molding machine: it is the large and special machine for producing the expandable polystyrene foam block
3.EPS sheet metal cutting machine: it is used to cut complax shapes of EPS products

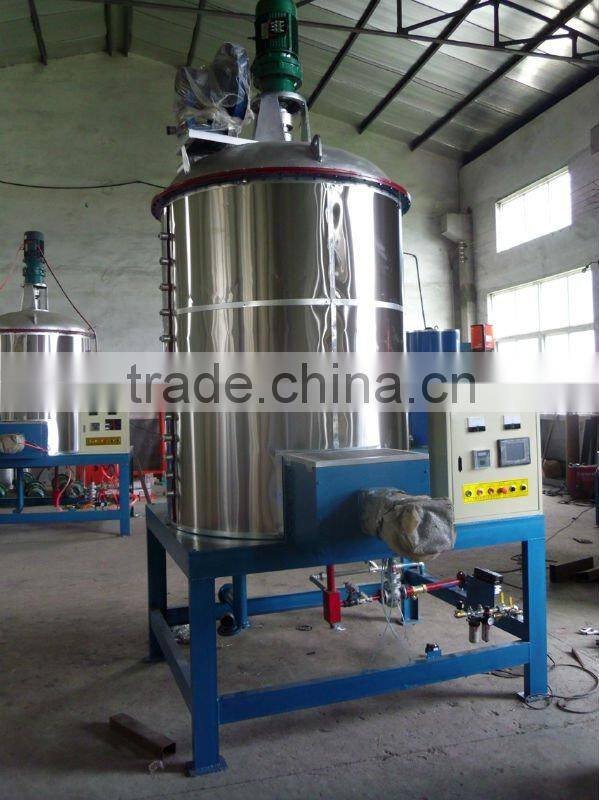

A:EPS Pre-expander

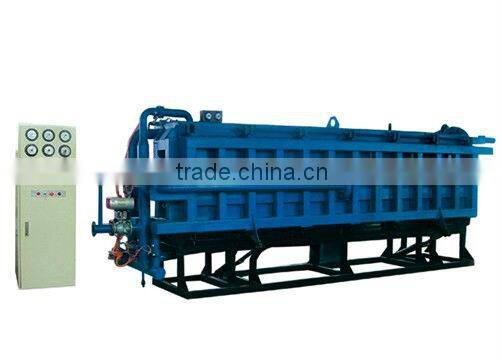

B. EPS block molding machine
1. It is welded by high-quality shape steel and treated in an effective way which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
2. The machine adopts PLC and touch screen for automatic mould opening ,mould closing ,material feeding ,steaming ,temperature keeping ,air cooling ,de-moulding and ejecting;
3. The surface of the mould is made of special aluminum ally which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
4. Adopting advanced moulding technique ,the machine is applicable to produce blocks of high-density and low-density and can ensure same quality of inside and outside block
Item
| Unit | PSB-2000 | PSB-3000 | PSB-4000 | PSB-6000 | PSB-8000 |
Cavity Net Size | mm | 2040*1020*530 | 3060*1250*630 | 4080*1250*630 | 6120*1250*630 | 8160*1250*630 |
Cavity Volume | M3 | 1.10 | 2.41 | 3.21 | 4.82 | 6.43 |
Produce Density/Proportion | Kg/M3 | 4-45 | 4-45 | 4-45 | 4-45 | 4-45 |
Production Efficiency | P/h | 2-9 | 2-9 | 2-9 | 2-8 | 2-8 |
Steam Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Entrance Diameter for Compressed for Air | mm | 80 | 80 | 80 | 80 | 80 |
Entrance Compressed for Steam | mm | 80 | 80 | 108 | 159 | 159 |
Power Supply | v | 380 | 380 | 380 | 380 | 380 |
powe | kw | 7 | 7 | 13 | 13 | 13 |
Max Overall Size | mm | 3600*2000*2750 | 4500*2150*2950 | 5500*2150*2950 | 7500*2150*2950 | 9500*2150*2950 |
Weight | kg | 2800 | 4600 | 6000 | 9600 | 10600 |
C. EPS sheet metal cutting machine
Adopt high quality rectangle steel pipe which features in reasonable structure,firm,high intension,without deformation
Equip with horizontal,vertical and block equipment.
Stable movement,precise cutting size,adjustable.
Realize three direction cutting
Company Profile
Shandong Longkou GBL Machinery Co., Ltd. cooperate with italian engineer and adopts italian technic. We own large-scale modernized workshop and advanced CNC processing center and we have accumulated rich experience in equipment manufacturing and products processing, at the same time we get more than 30 patents. Our company has rich specialized technical force and manufacture ability, professional technicians is over 40% of total employees.
Shandong Longkou GBL Machinery Co., Ltd. has got the CE certificate. Our products are exported to the countries and regions all over the world, such as Canada, Russia, Italy, Britain, France, Germany, Mexico, Chile, Salvador, Venezuela, South Africa, Nigeria, Tunisia, Vietnam and etc. And we have received favorable comments from international customers.
Shandong Longkou GBL Machinery Co., Ltd. will insist the principle of "High quality and Customer is God" and technology innovation to be a world famous brand. Shandong Longkou GBL Machinery Co., Ltd. wishes to build a good future with all friends both at home and abroad together!
