Through Hole 5mm Round Led Light 30 Degree

Through Hole 5mm Round Led Light 30 Degree thumbnail-1
Through Hole 5mm Round Led Light 30 Degree thumbnail-2
Through Hole 5mm Round Led Light 30 Degree thumbnail-3
Through Hole 5mm Round Led Light 30 Degree thumbnail-4
Through Hole 5mm Round Led Light 30 Degree thumbnail-5
Through Hole 5mm Round Led Light 30 Degree thumbnail-6
Through Hole 5mm Round Led Light 30 Degree photo-1
Through Hole 5mm Round Led Light 30 Degree photo-2
Through Hole 5mm Round Led Light 30 Degree photo-3
Through Hole 5mm Round Led Light 30 Degree photo-4
Through Hole 5mm Round Led Light 30 Degree photo-5
Through Hole 5mm Round Led Light 30 Degree photo-6
US$ 0.01 - 0.03 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-5011 Series
Chip Material:
InGaN
Emitting Color:
Red
Contact Supplier Request Quote Chat Now
Wuxi TDS Lighting Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TDS-5011 Series
Chip Material InGaN
Emitting Color Red
Luminous Intensity 8000-12000MCD
Luminous Flux(lm) 12-15lm
Optical Attenuation(%) 0.0005
Power Other, 0.06W, 0.06W
Power Dissipation 0.001
Color Rendering Index(Ra) 75
Color Temperature 620-625-630nm
Operating Temperature(℃) -20, 80
Storage Temperature(℃) -30, 70
Place of Origin Jiangsu, China
Brand Name TDS
Certification CE
Product Description

through hole 5mm round Led light 30 degree

Part Number Chip Material Emitted Color λD(nm) CCT
Typ. 		IV(mcd)@IF=20mA VF(V)@IF=20mA Viewing Angle
 2θ½
Min. Max. Min. Max.
TDS-5011JR3CN AlGaInP Red 625-630 6000 8000 1.9 2.3 15
TDS-5011KR3CN AlGaInP Red 625-630 8000 12000 1.9 2.3 15
TDS-5011LR3CN AlGaInP Red 625-630 12000 18000 1.9 2.3 15
TDS-5011GR2CN AlGaInP Red 625-630 5000 6000 1.9 2.3 45
TDS-5011GR3CN AlGaInP Red 625-630 3000 4000 1.9 2.3 60
TDS-5011GY2CN AlGaInP Yellow 585-590 4000 6000 1.9 2.3 15
TDS-5011JY2CN AlGaInP Yellow 592 6000 8000 1.9 2.3 15
TDS-5011KY2CN AlGaInP Yellow 592 8000 12000 1.9 2.3 15
TDS-5011LY4CN AlGaInP Yellow 592 5000 6000 1.9 2.3 45
TDS-5011LY2CN AlGaInP Yellow 592 3000 4000 1.9 2.3 60
TDS-5011AM2CN AlGaInP Amber 592 8000 12000 1.9 2.3 15
TDS-5011AM2CN AlGaInP Amber 592 5000 6000 1.9 2.3 60
TDS-5011EB4CN InGaN Blue 465 3000 4000 3.0 3.4 15
TDS-5011GB4CN InGaN Blue 465 8000 9000 3.0 3.4 15
TDS-5011GB6CN InGaN Blue 465 7000 8000 3.0 3.4 45
TDS-5011GB6CN InGaN Blue 465 4000 6000 3.0 3.4 60
TDS-5011TDS4CN InGaN Green 515 14000 18000 3.0 3.4 15
TDS-5011QG4CN InGaN Green 515 16000 18000 3.0 3.4 45
TDS-5011QG5CN InGaN Green 515 14000 16000 3.0 3.4 60
TDS-5011MW4CN InGaN Warm White 2900K 12000 14000 3.0 3.4 15
TDS-5011OW4CN InGaN Warm White 2900K 15000 18000 3.0 3.4 15
TDS-5011PW4CN InGaN Warm White 2900K 16000 20000 3.0 3.4 15
TDS-5011PW7CN InGaN Warm White 2900K 6000 7000 3.0 3.4 45
TDS-5011MW2CN InGaN White 6500K 12000 14000 3.0 3.4 15
TDS-5011PW2CN InGaN White 6500K 18000 22000 3.0 3.4 15
TDS-5011PW8CN InGaN White 6500K 30000 35000 3.0 3.4 15
TDS-5011TW2CN InGaN White 6500K 7000 8000 3.0 3.4 30
TDS-5011OW2CN InGaN White 6500K 4000 5000 3.0 3.4 60
TDS-5011PW2CN InGaN White 6500K 5000 6000 3.0 3.4 45



Plesae contact our salesman for the updated Pirce and Stocks. If we do not have stocks, MOQ will be 10K Pcs.

through hole 5mm round Led light 30 degree

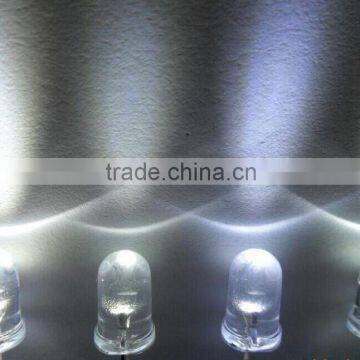

Test Photo

through hole 5mm round Led light 30 degreethrough hole 5mm round Led light 30 degree

Related Product

through hole 5mm round Led light 30 degree

Payment and Warranty

1. Prices conditions

Price can be FOB, CIF ,EXW, or With taxes.



2. What will be the delivery time ?

We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes



3. Shipment will be over sea or by air ?

Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.



4. Could you please send me the sample ? Then i could see and analyze its quality?

Yes. We can send samples first, samples need to be charged if the value is higher.



5. Will there be any contract for this business or trade ?

Yes, there is a normal contract before the order is placed.



6. How will invoice be generated ?

Invoice can be generated with formal contract with company seals



7.payment:



T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque



If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
