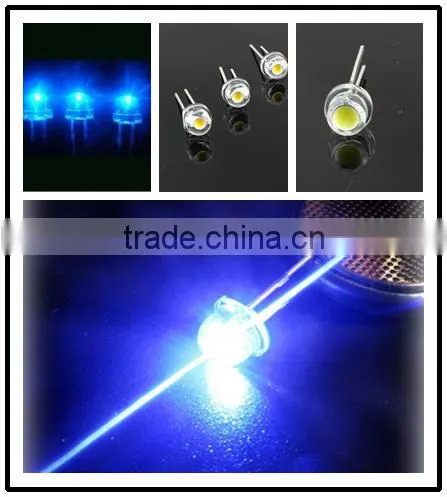

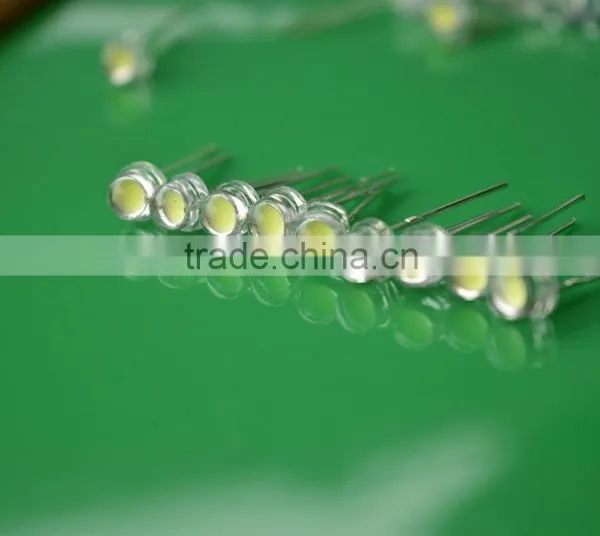

0.2W 5mm Strawhat Dip Power Led Diode
US$ 0.01 - 0.02
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
TDS-5013 Series
Chip Material:
InGaN
Emitting Color:
Yellow
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Through Hole 5mm Led Diode With 15 / 20 / 30 Degree ViewingUS$ 0.01 - 0.03MOQ: 1000 Pieces -
5mm Oval Led in Red / Green / Blue / Pink / Yellow Green / White ColorUS$ 0.01 - 0.02MOQ: 1000 Pieces
-
Pure White 0.2W 4.8mm Strawhat LED 22-25lm 60mA With 160 Degree ReflectorUS$ 0.02 - 0.03MOQ: 1000 Pieces
-
5mm Green Concave Led Diode 6.8mm HeightUS$ 0.01 - 0.02MOQ: 1000 Pieces
-
70 / 40 Degree Green 5mm Oval Led Without StopperUS$ 0.01 - 0.02MOQ: 1000 Pieces
Model Number
TDS-5013 Series
Chip Material
InGaN
Emitting Color
Yellow
Luminous Intensity
2000-3000MCD
Luminous Flux(lm)
5-6lm
Optical Attenuation(%)
0.0005
Power
Other, 0.06W, 0.06W
Power Dissipation
0.001
Color Rendering Index(Ra)
75
Color Temperature
585-590-595nm
Operating Temperature(℃)
-20, 80
Storage Temperature(℃)
-30, 70
Place of Origin
Jiangsu, China
Brand Name
TDS
Certification
CE
Product Description
| Part Number | Chip Material | λD(nm) CCT Typ. |
POWER | lm | IV(mcd)@IF=20mA | VF(V)@IF=20mA | Viewing Angle 2θ½ |
|||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 5-6lm | 2000 | 2200 | 3.0 | 3.4 | 120-140 | |
| TDS-5013NW4CN | InGaN | 2700-20000K | 0.06W | 6-7lm | 2400 | 2600 | 3.0 | 3.4 | 120-140 | |
| TDS-5013PW4CN | InGaN | 2700-20000K | 0.06W | 7-8lm | 2800 | 3000 | 3.0 | 3.4 | 120-140 | |
| TDS-5013LW4CN | InGaN | 2700-20000K | 0.06W | 8-9lm | 3200 | 3500 | 3.0 | 3.4 | 120-140 | |
| TDS-5013HR2CN | InGaN | 620-630NM | 0.06W | 4-5lm | 1400 | 1600 | 1.9 | 2.3 | 120-140 | |
| TDS-5013AY3CN | InGaN | 580-595NM | 0.06W | 5-6lm | 2000 | 3000 | 1.9 | 2.3 | 120-140 | |
| TDS-5013RB2CN | InGaN | 450-465NM | 0.06W | 3-4lm | 1200 | 1400 | 3.0 | 4.0 | 120-140 | |
| TDS-5013BG5CN | InGaN | 515-530NM | 0.06W | 5-6lm | 2000 | 3000 | 3.0 | 4.0 | 120-140 | |
The Following is the Data of the 0.2W 5mm Strawhat LED.(60mA 3-3.2V With Bigger Reflector)
| Part Number | Chip Material | λD(nm) CCT Typ. |
POWER | lm | IV(mcd)@IF=60mA | VF(V)@IF=20mA | Viewing Angle 2θ½ |
|||
| Min. | Max. | Min. | Max. | |||||||
| TDS-5013NW2CN | InGaN | 2000-15000K | 0.2W | 19-22LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
| TDS-5013NW3CN | InGaN | 2000-15000K | 0.2W | 25-30LM | 6000 | 8000 | 3.0 | 3.4 | 140-160 | |
