Home > Products > Dip Power 3mm LED > 6000K - 6500K 3mm round led

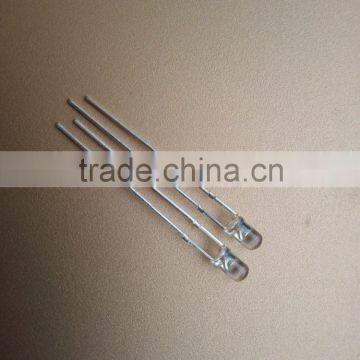

6000K - 6500K 3mm round led
- 5000000 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
You May Like
Product Details
| Model Number | TDS-3011 Series | Chip Material | InGaN | |
| Emitting Color | Other, Warm/pure/cool white | Luminous Intensity | 14000MCD | |
| Luminous Flux(lm) | 5-6lm | Optical Attenuation(%) | 0.0005 | |
| Power | Other, 0.06W, 0.06W | Power Dissipation | 0.001 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 2700-25000K | |
| Operating Temperature(℃) | -20, 80 | Storage Temperature(℃) | -30, 70 | |
| Place of Origin | Jiangsu, China | Brand Name | TDS | |
| Certification | CE |
Product Description
| Part Number | Chip Material | Emitted Color | λD(nm) CCT Typ. | Lens Color | IV(mcd)@IF=20mA | VF(V)@IF=20mA | View 2θ½ | |||
| Min. | Max. | Min. | Max. | |||||||
| TDS-3012DR3CN | AlGaInP | Red | 625 | Water Clear | 1500 | 3000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012FR3CN | AlGaInP | Red | 625 | Water Clear | 3000 | 5000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012JR3CN | AlGaInP | Red | 625 | Water Clear | 6000 | 8000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012KR3CN | AlGaInP | Red | 625 | Water Clear | 8000 | 12000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012DY2CN | AlGaInP | Yellow | 592 | Water Clear | 1500 | 3000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012FY2CN | AlGaInP | Yellow | 592 | Water Clear | 3000 | 5000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012JY2CN | AlGaInP | Yellow | 592 | Water Clear | 6000 | 8000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012KY2CN | AlGaInP | Yellow | 592 | Water Clear | 8000 | 12000 | 1.9 | 2.3 | 20-30 | |
| TDS-3012DB4CN | INGaN | Blue | 465 | Water Clear | 1000 | 2000 | 3.0 | 3.4 | 20-30 | |
| TDS-3012EB4CN | INGaN | Blue | 465 | Water Clear | 2000 | 4000 | 3.0 | 3.4 | 20-30 | |
| TDS-3012GB4CN | INGaN | Blue | 465 | Water Clear | 4000 | 6000 | 3.0 | 3.4 | 20-30 | |
| TDS-3012LG4CN | INGaN | Green | 515 | Water Clear | 10000 | 14000 | 3.0 | 3.4 | 20-30 | |
| TDS-3012TDS4CN | INGaN | Green | 515 | Water Clear | 14000 | 18000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013LW4CN | INGaN | Warm White | 2900K | Water Clear | 10000 | 14000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013NW4CN | INGaN | Warm White | 2900K | Water Clear | 14000 | 18000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013PW4CN | INGaN | Warm White | 2900K | Water Clear | 18000 | 22000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013LW2CN | INGaN | White | 6500K | Water Clear | 10000 | 14000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013NW2CN | INGaN | White | 6500K | Water Clear | 14000 | 18000 | 3.0 | 3.4 | 20-30 | |
| TDS-3013PW2CN | INGaN | White | 6500K | Water Clear | 18000 | 22000 | 3.0 | 3.4 | 20-30 | |
Plesae contact our salesman for the updated Pirce and Stocks. If we do not have stocks, MOQ will be 10K Pcs.
1. Prices conditions
Price can be FOB, CIF ,EXW, or With taxes.
2. What will be the delivery time ?
We have large quantities in Stock for normal color,Normal size ,for special color and products sizes it need to 3-5 days to customize.50K units is available for most of our models in normal color and sizes
3. Shipment will be over sea or by air ?
Generally speaking ,we ship the products by DHL UPS FEDEX express since the products isn't too heavy for the transportation.
4. Could you please send me the sample ? Then i could see and analyze its quality?
Yes. We can send samples first, samples need to be charged if the value is higher.
5. Will there be any contract for this business or trade ?
Yes, there is a normal contract before the order is placed.
6. How will invoice be generated ?
Invoice can be generated with formal contract with company seals
7.payment:
T/T Company Bank , paypal , West union , MoneyGram , Visa master card , Cheque
If you always buy our led lasted in 2 years, we can give you 5000USD debt..You do not pay for them if the order is less than 5000USD. You can pay them 90 days after shipment.
Contact Us
- Wuxi TDS Lighting Co., Ltd.
- Contact nameDain Wang Chat Now
- Phone0086-561-3890905
- AddressNO.148-603,Mingfa industrial park,Tianyi RD, Wuxi, Jiangsu
