Help CenterRubber Poly Rib V-belt
Related Products
poly v-belt
types as follows:
| Production Type | Pb | Thickness (approximation) | Slot bottom(max) | Height | Length Range(inch) | Length Range(mm) | Angle | |
| PH | 1.6 | 2.7 | 0.15 | 2.8-3.0 | ⁄ | ⁄ | 40º | |
| PJ | 2.34 | 3.8 | 0.20 | 3.7-4.1 | 13''-120'' | 330-3048 | 40º | |
| PK | 3.56 | 5.0 | 0.25 | 4.2-4.5 | 22''-120'' | 559-3048 | 40º | |
| PL | 4.7 | 9.0 | 0.40 | 6.8-7.2 | 50''-160'' | 1270-4064 | 40º | |
| PM | 9.4 | 14.5 | 0.75 | 15.5-16.0 | 100''-160'' | 2540-4064 | 40º |

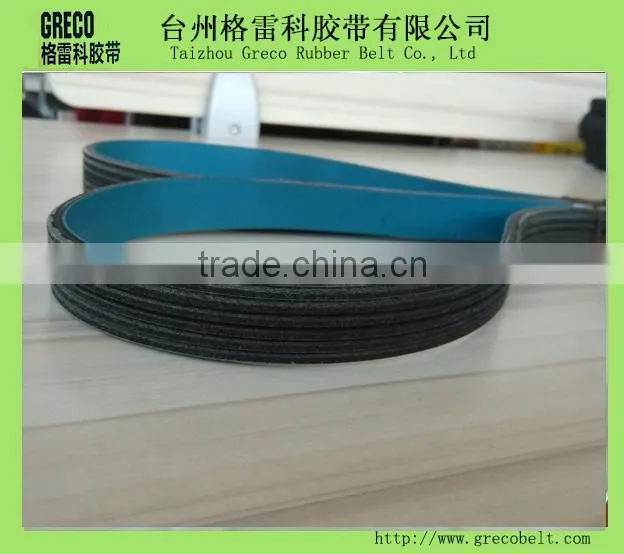

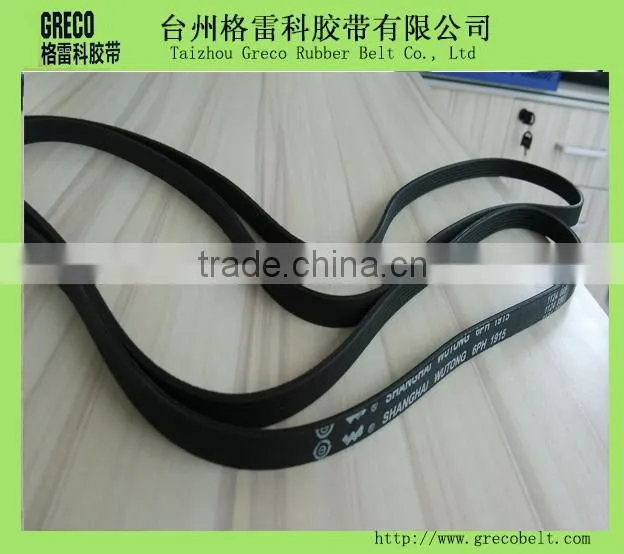

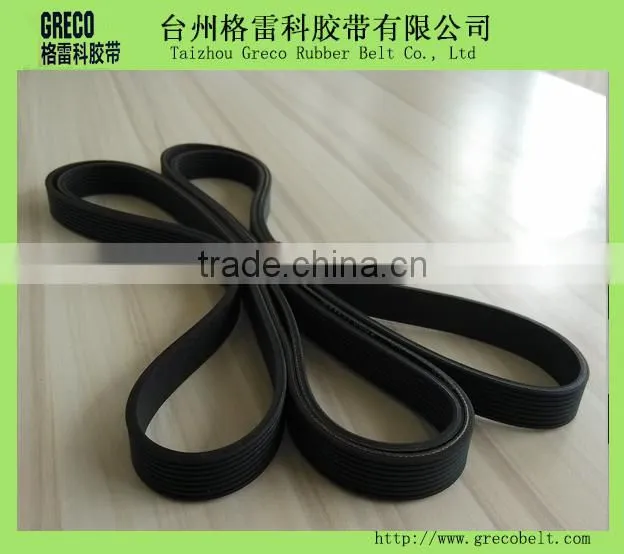

poly rib v-belt
1.Made of .CR.EPDM.polyester cord
2.Excellent elastic&flexural properey
3.Excellent Oil&Heat resistance an
.Combining the advantages of V belt and Plain belt, Ribbed V-Belt has soft and tough property as flat belt and tight and effective property as V-belt.
1. High transmission power, 30% higher than Common V-belts on the same condition;
2. Tight transmission system, with occupied space 25% smaller than Common V belt at the same transmission power;
3. Flat and soft, suitabIe not onIy for transmission of small pulley but also for high-speed transmission with speed of 40m/s;
4. Slight vibration, few heat diverge and steady working;
5. Resistant to heat, oiI, and aging; few elongation and long service life.
Shipment and payment :
1. A new sample would be sent to you in 3-15 days after you asked.
2. Cause of the expenses of making and sending the sample, you will need to pay the sample charge.
3. The sample charge will be refund to you when mass order confirmed.
4. Delivery time is 30days after receive the deposits.
5. Regular payment is 30% paid when you are placing the order and 70% paid after you get
the picture of your ready goods
6. All the details can be discussed.
Company
Certificate
Package
Showcase and website
Our company is specialized in manufacturing automotive V belt, ribbed belts, motorcycle V belt, automotive timing belt, industrial variable speed belt, banded v-belt, narrow V belts, and butyl pouches and other products.
If you have any requirements on the models and size, Don't hesitate to leave your message. You will get our reply within 12-24 hours of working days .
