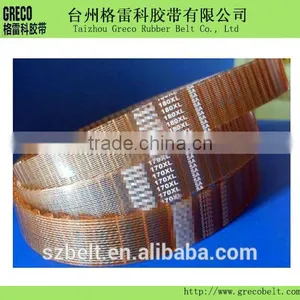

Help CenterMXL Timing Belt
Related Products
Specifications
mxl timing belt:1. Perfect anti-flexibility;
2. Small elongation needed;
3. High mightiness;
4. Anti-aging, anti-heat.
mxl timing belt:
Product Description:
Specifications:
1.Timing belt is a kind of ring belt which has the wire rope or glass faber as its reinforced layer, and a polyurethane or chloroprene rubber as its outer surface, the inside of the belt are made dentate to make it occlusive to the toothed wheels.
2. When it is working, it has an accurate transmission ratio, and it has a small force into the shaft, anti-oil, anti-abrasion, anti-aging, the general temperature during its usage is from -20 °C to 80 °C , v<50m/s, P<300kw, i<10, and it can be used in the low-speed transmission too when it is needed.
Type of the teeth:
There are two types of the timing belts' tooth shape: trapezoida tooth(Marked with 1 ) and arc tooth( Marked with 2 );
The arc tooth can be divided into three types: arc tooth(H series, which can be call HTD ), flat circular arc tooth(S series, also known as STPD) and concave parabolic tooth(R series Marked with 3).
The pictures marked with 4, 5, 6 are all about the tooth shape of the double side timing belt;
Advantages:
1. An accurate transmission, a constant transmission ratio, no sliding when it is working;
2. Stable enough, with a buffering, anti-damping capacity, low nosie when it is working;
3. A high transmission efficiency which can up to 0.98;
4. Energy-saving;
5. Convenient to make a maintenance, a low cost of maintenance;
6. A high range of transmission power;
7. Be suitable for long-distance transmission;
8. A smaller pretigjtening force , a smaller shaft and load to the bearing when compared to the v belts.
9. The goods can be produced as out cilents' requests.
Packaging & Shipping:
Inner packing: Wrapped with and the paper cards which can be tied upto the belts according to our customers' requirements.
Outer Packing:
Standard: Export Cartons
Measurement: 65cm*38cm*25cm
Marks: Marks or some other kinds of notes can be printed on the cartons according to our customers' requirements.
Shipment: Usually by sea in export containers.
Company Information:
Taizhou Greco Rubber Belt Co., Ltd located in the middle part of Chinese golden coast——Sanmen Bay, which has reputations such as “the Chinese Industrial City of Rubber”, “the Chinese Village of Crabs”, “the Power City of eastern China”. And it’s only 80 miles far from the Luqiao Airport, only above 100 miles from the Ningbo and the Wenzhou Airports, so, it’s obvious that all the means of transport such as in land, in ocean, in air are of great convenience to us.
Our Services:
1. Founded in 2003, our company is equipped with the producing machines of a higher degree of automation, accessorized and supported by the advanced testing facilities, as well as with various kinds of outstanding talents and technicians, which have all provided strong protections for the quality of our products.
2. Besides, our company always arrange the production in strict accordance with the ISO9001:2000—the international standard system of quality, the products will also comply with the Western environmental standard.
3. Since the goods are put into the market, it has enjoyed a great popularity all over the world, it has also been exported into the market in Europe and the Southeast Asia, which has gained our company many praises from our customers.
4. We hope to establish friendly relationship with every business partner and then get improved together.
Remarks:
Website: szbelt.en. ()
Certificates:
Welcome to contact us and visit our company freely.
