Specifications

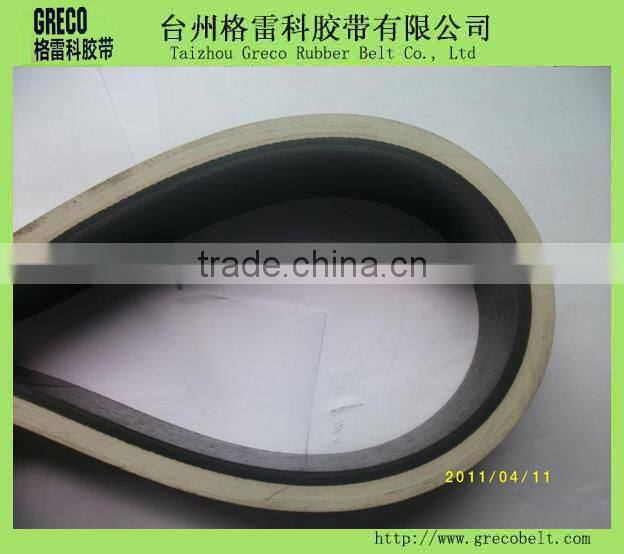

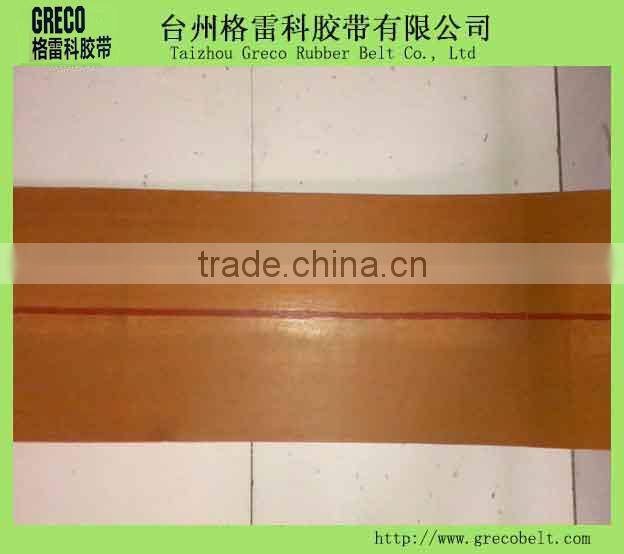

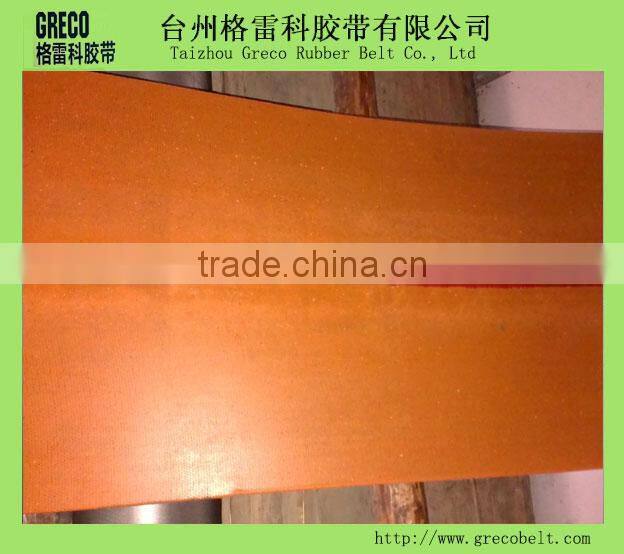

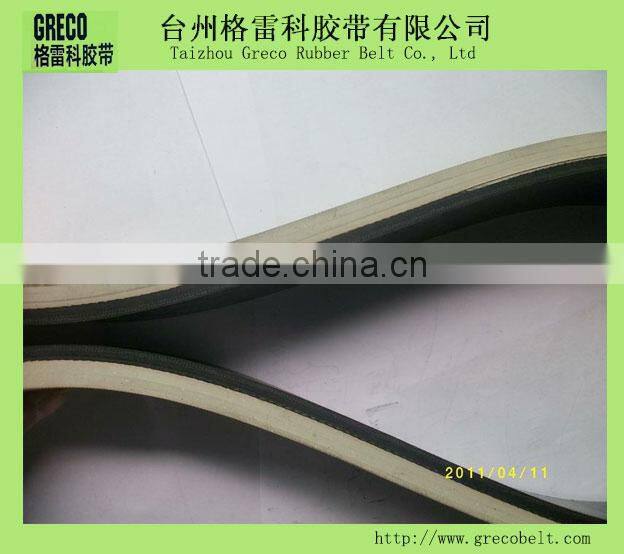

China flat belt:The materials of China flat belt is a resource which is high strength;
China flat belt
flat belt China specifications series:
Width(mm) |
Plies |
Width Tolerance(mm) |
20,25,30,40,45,50,55,60 |
3-4 |
+/-2 |
65,70,75,80,90,100,125 |
3-6 |
+/-2 |
140,160,180,200,224,250 |
4-6 |
+/-4 |
288,300,315,350,400,450,550,600 |
4-10 |
+/-5 |
Technical data GB524-89 for flat belt :
Tensile Strength Specifications |
Longtiudinal min value |
Latitudinal min value |
N/mm |
KN/mm |
KN/mm |
190 |
190 |
75 |
240 |
240 |
95 |
290 |
290 |
115 |
340 |
340 |
130 |
385 |
385 |
225 |
425 |
425 |
250 |
450 |
450 |
|
500 |
500 |
|
Product Description of flat belt
1.Compact design is possible since the belts are thin
2.with excellent bending properties
3.the uniform thickness and minimized vibration bring to high-speed drive.
Competitive advantages for flat belt
1) For the special model,we can make it by customer offering drawing,sample belt.
2) High quality product, made of very good rubber
3) Prompt delivery
4) High quality control
5) Good after service
6) Competitive prices
Round flat belt is our new product. We can produce any kinds of round flat belt.
The details of round flat belt are as follows:
Material : Rubber
Application: Used for transmiting goods in foods industry, textile industry and so on.
Characteristics: 1, high stength;
2, small elongation rate;
3, anti-wearity, anti-heat, anti-oil, anti-fatigue, anti-friction
4, high tensile strength.
The types of flat belt
Width:25mm,30mm,40mm,50mm,60mm,70mm,80mm,90mm,100mm,110mm,125mm
Length:More than 100m per roll
Width : |
25mm to 2500 mm |
Length : |
100 to 500mtr Roll length |
Fabrics : |
Hard cotton ducks/soft cotton ducks/synthetic fabrics |
Plies : |
2 plies to 12 plies |
Type of edges: |
Cut edges and round/ folded edges |
Colours : |
Beige, grey, camel, yellow, black and other colours as per customer requirement |
flat belt more informaton:
Application: Used to transmit momentum and promote the materials, ofenly applied to engines, air-blower, lifting machine, water pump and threshing machine etc.
Feature: Use the high strength canvas as the framework material, hang with rubber materials of high
quality.
Type: There are two types of the cut edge transmission v belt China :
type A: Round edged flat transmission belt: the outermost layer canvas or multilayer canvas of the round edged transmission belt has been wraped up and the side of the belts’ has been
curved.
type B: Cut edged flat transmission belt: cut edged transmission belt is made by adhering several layers of full width canvas together. The sides of the belts are flat surfaces because its cutting and the edge of the belts are coated with rubber paste
Here is the related datas and pictures of the two types of the flat drive belt:
Advantages of v belt China:
1. High intensity;
2. Great transmission power;
3. Excellent flexiability;
4. No slide cross transmission is available;
5. Easy to stich;
6. Lttle elongation can be durable during the usage time.
Our Packing of v belt China
The inner packing of v belt China is based on 'requirment of customers if needed.The v belt China will be packed in a bundle usually.If customer need, we can packed every in a card
The carton is used to outer packing and thegross weight , net weight,length,width,height will be printed on one side.
We also can print the shipping marksand transportation marks on it based on the requirements of clients after the agreement on two parties.
Shipment and payment
1. A new sample would be sent to you in 3- 7 days after you asked.
2. Cause of the expenses of making and sending the sample, you will need to pay
the sample charge.
3. The sample charge will be refund to you when mass order confirmed.
4. Delivery time is 30days after receive the deposits.
5. Regular payment is 30% paid when you are placing the order and 70% paid
against the B/L copy.
6. All the details can be discussed.
Tel:0086--0576--89330770
0086---13968526636
Fax:0086---89330702
Skype:grecobeltshirley
Trade Manager:cn1510495356
