Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > Sanan SMD2835 Size Customized LED Panel

Sanan SMD2835 Size Customized LED Panel

Name: Sanan SMD2835 Size Customized LED Panel
Brand: BLUESWIFT
SKU: 102173239
Availability: InStock

Sanan SMD2835 Size Customized LED Panel thumbnail-1

Sanan SMD2835 Size Customized LED Panel thumbnail-2

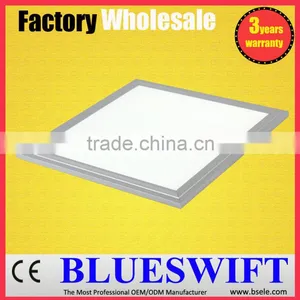

Sanan SMD2835 Size Customized LED Panel thumbnail-3

Sanan SMD2835 Size Customized LED Panel photo-1

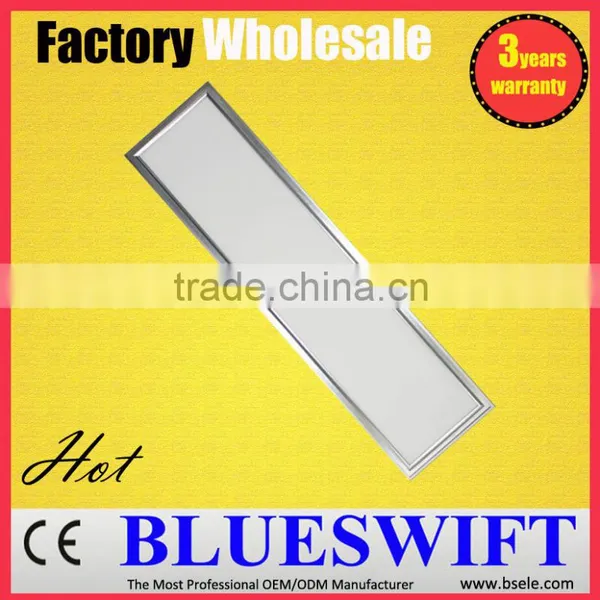

Sanan SMD2835 Size Customized LED Panel photo-2

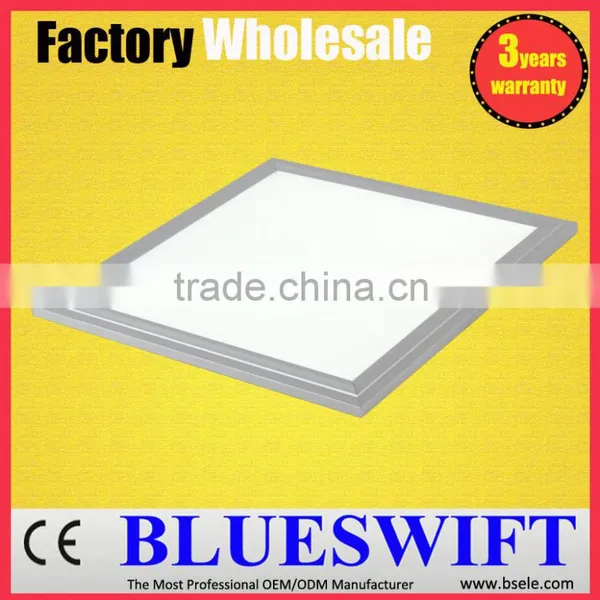

Sanan SMD2835 Size Customized LED Panel photo-3

US$ 0.97 - 55 MOQ: 10 Units

Key Specifications

Get Latest Price

LED Light Source:

LED

Warranty(Years):

3, 3

Input Voltage(V):

AC100-240V

Contact Supplier Request Quote Chat Now

Guangzhou Blueswift Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source LED

Warranty(Years) 3, 3

Input Voltage(V) AC100-240V

Lamp Power(W) 36

Lamp Luminous Flux(lm) 3150

Lamp Luminous Efficiency(lm/w) 90

Color Temperature(CCT) Cool White

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP44

Certification CCC, CE, EMC

Place of Origin Guangdong, China

Brand Name BLUESWIFT

Model Number BS-131/C

Epistar SMD2835 Embedded Size Customized LED Panel

Product Description

1. Led chip Episar or San'an

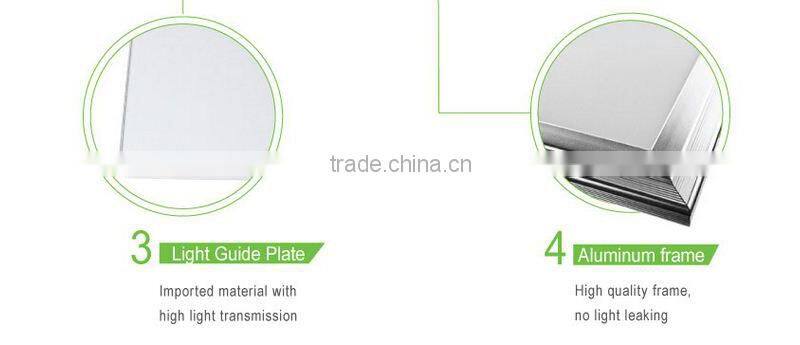

2. Material Aluminum alloy+Acrylic
3. Life span 50000 hours
4. Lamp source 180pcs 3528 SMD LEDS
5. Size 600*600*10mm
6. Lumens of each led 18LM
7. Led quantity 180pcs
8. Input voltage 220V AC
9. Color pure white & warm white

10.Different sizes available: 300*300mm, 300*600mm, 300*1200mm,600*600mm, 600*1200mm

Photos

The dimension as following is the standard size, if you want to custmize size, please just contact us .

More Products

Product Code	Power	Voltage	LED Model	LED QTY	Luminance (lum)	Lamp Size	Open Size	Color
BS-131/A 300x300MM	6W	AC100-240V	2835	30	510LM	L296xW296xH10mm	280x280mm	2700-3000K; 4000-4500K; 6000-6500K; RGB,BLUE, RED,GREEN
	8W	AC100-240V	2835	40	680LM
	10W	AC100-240V	2835	50	850LM
	12W	AC100-240V	2835	60	1020LM
	16W	AC100-240V	2835	80	1360LM
	20W	AC100-240V	2835	100	1700LM
BS-131/B 300x600MM	12W	AC100-240V	2835	60	1020LM	L595xW296xH10mm	580x280mm
	15W	AC100-240V	2835	75	1275LM
	18W	AC100-240V	2835	90	1530LM
	24W	AC100-240V	2835	120	1870LM
	30W	AC100-240V	2835	150	2550LM
	36W	AC100-240V	2835	180	3150LM
BS-131/C 600x600MM	22W	AC100-240V	2835	110	1870LM	L595xW595xH10mm	580x580mm
	30W	AC100-240V	2835	150	2550LM
	36W	AC100-240V	2835	180	3150LM
	48W	AC100-240V	2835	240	4080LM
	60W	AC100-240V	2835	300	5250LM
	72W	AC100-240V	2835	360	6500LM
BS-131/D 300x1200MM	30W	AC100-240V	2835	150	2550LM	L1195xW296xH10mm	1180x280mm
	36W	AC100-240V	2835	180	3150LM
	48W	AC100-240V	2835	240	4080LM
	72W	AC100-240V	2835	360	6500LM
BS-131/E 600x1200MM	36W	AC100-240V	2835	180	3150LM	L1195xW595xH10mm	1180x580mm
	60W	AC100-240V	2835	300	5250LM
	72W	AC100-240V	2835	360	6500LM
	80W	AC100-240V	5730	160	6800LM
BS-131/F 150x1200MM	18W	AC100-240V	2835	90	1530LM	L1195xW150xH10mm	1180x130mm
	30W	AC100-240V	2835	150	2550LM
	36W	AC100-240V	2835	180	3150LM

Applications

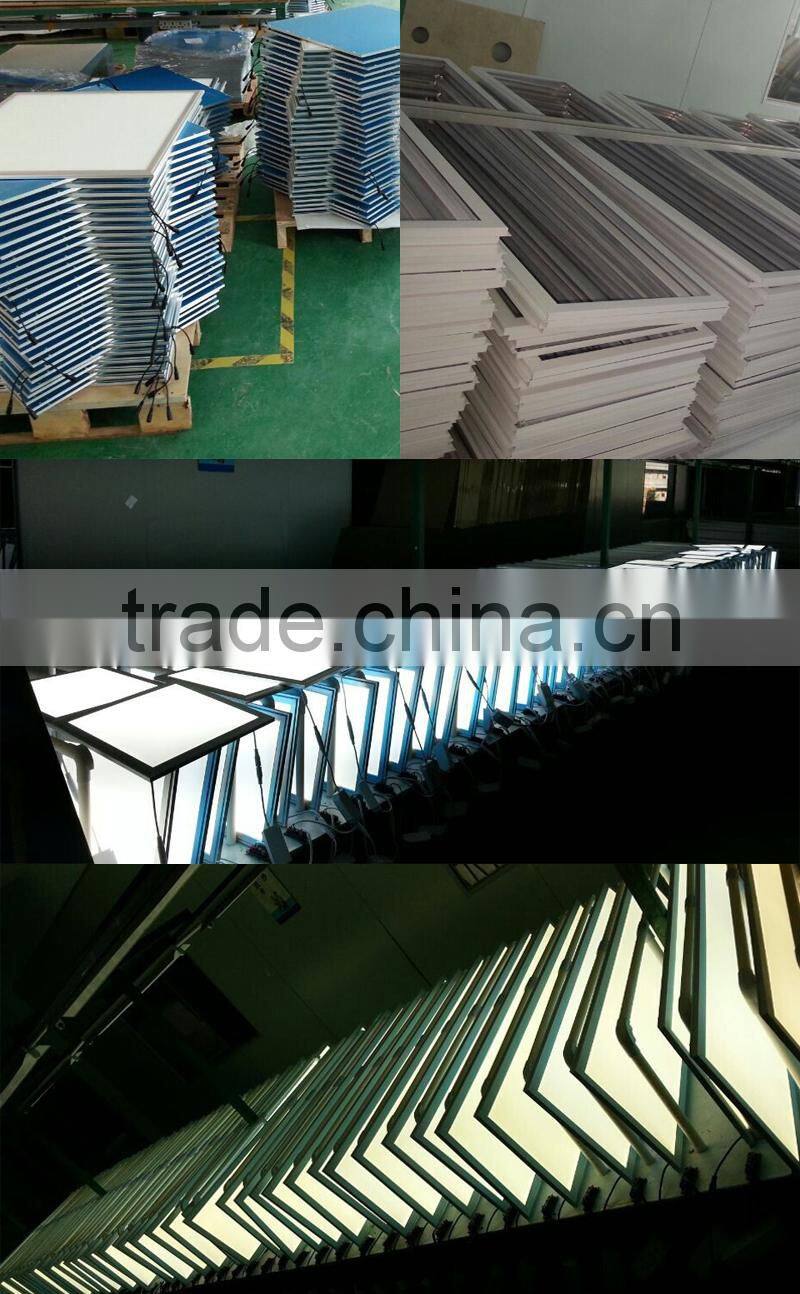

Production

QUALITY CONTROL

100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.

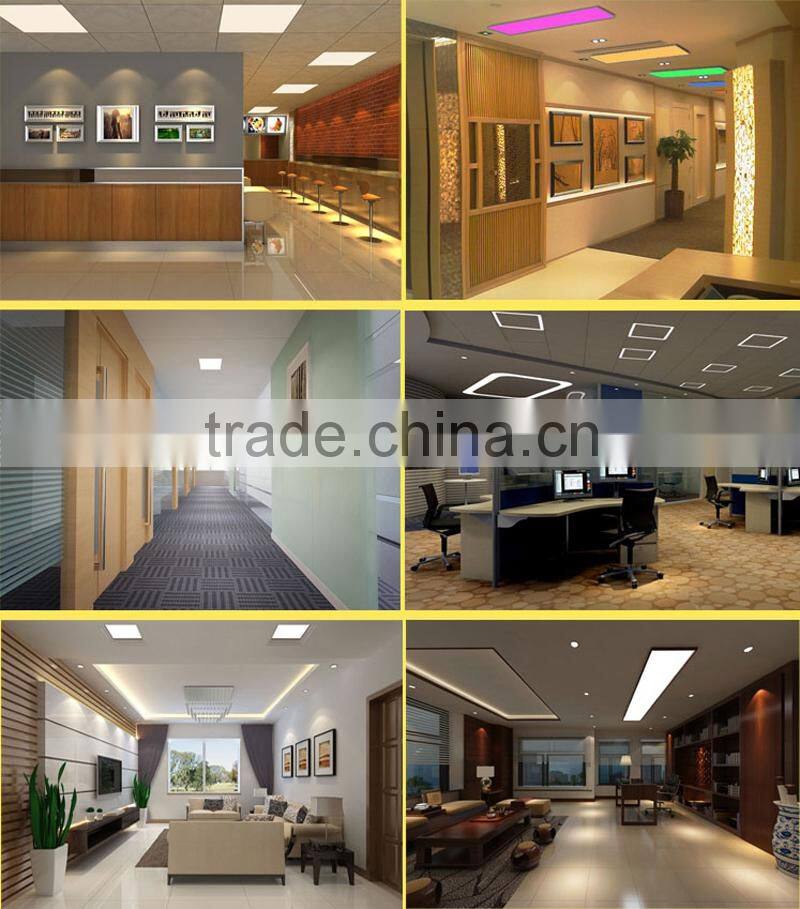

Application of 15w led panel light:

Residential Buildings, Home,Office, Meeting Room ,School, Library,Factory, Warehouse,Hotel, Casino,Parking Garage,Hospital,Commercial Center,Supermarket,Shopping mall,anywhere you want.

TRADE TERMS
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Zhongshan , China
5. Discounts : We offer discount for big quantity.

DELIVERY DETAIL
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

OUR SERVICES
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

We specialized in the field of lighting products for years, and widely export to South America, Europe, Middle East and Africa etc. We do hope cooperate with you. If you have any question, please don't hesitate to contact us. thank you.
