Specifications
Surface Dimmable COB LED Downlight30W 50W 60W
Epistar LED Chip
50000hrs lifespam
CE ROHS Approval
85v-230vac Surface Mounted COB Epistar Led Downlight 50W
Specifications
| Type | 4 Inches 140mm 30w |
6 Inches 160mm 40W |
8 Inches 190mm 50W |
8 Inches 190mm 60W |
| Product Code | BS-096-4" | BS-096-6" | BS-096-8" | BS-096-8" |
| Light source | Epistar COB 1pcs | |||
| Driver | CE,RoHS Isolated Constant Current- Driver | |||
| Power Watt | 30W | 50W | 60W | 60W |
| Input volt | AC 85~265V | AC 85~265V | AC 85~265V | AC 85~265V |
| Power factor | >0.95 | >0.95 | >0.95 | >0.95 |
| lumens | 2400 lm±5% | 4000 lm±5% | 4200 lm±5% | 4800 lm±5% |
| Effiency | >80LM/W | >80LM/W | >70LM/W | >80LM/W |
| Color Temperature | 3000-4000-5700K | 3000-4000-5700K | 3000-4000-5700K | 3000-4000-5700K |
| CRI | >80 | >80 | >80 | >80 |
| Beam Angle | 15°/23°/60° | 15°/24°/38°/60° | 23°/60° | 38° |
| Material | Aluminum+Glass+PC Reflector | Aluminum+Glass PC Reflector+Bracket |
||
| Finish Color | SB Dull polished White / SH Dull polished Black | |||
| Lifespam | 30,000 | |||
| Working Temperature | :-20℃ ~ 45℃ | |||
| Install Way | Surface Mounted or Hanging | |||
| Product Dimension | Dia 140* L 175mm | Dia 160* L 200mm | Dia 180*L 225mm | Dia 180*L 225mm |

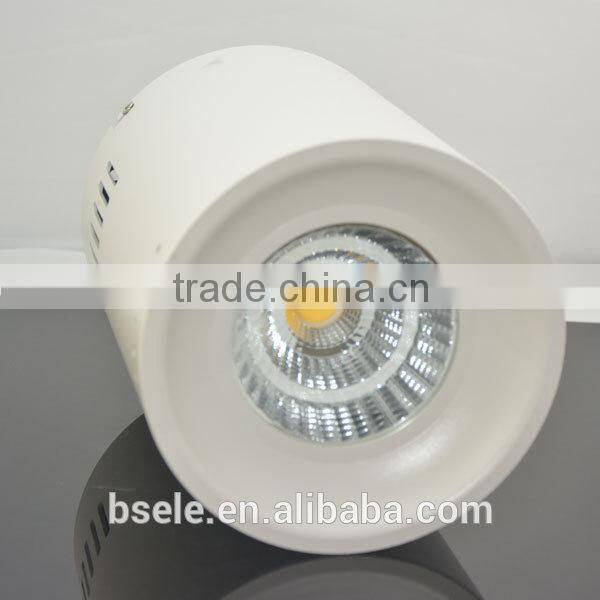

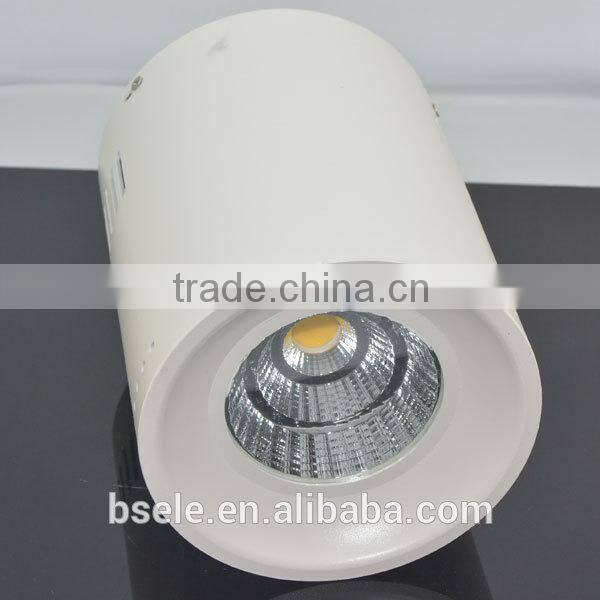

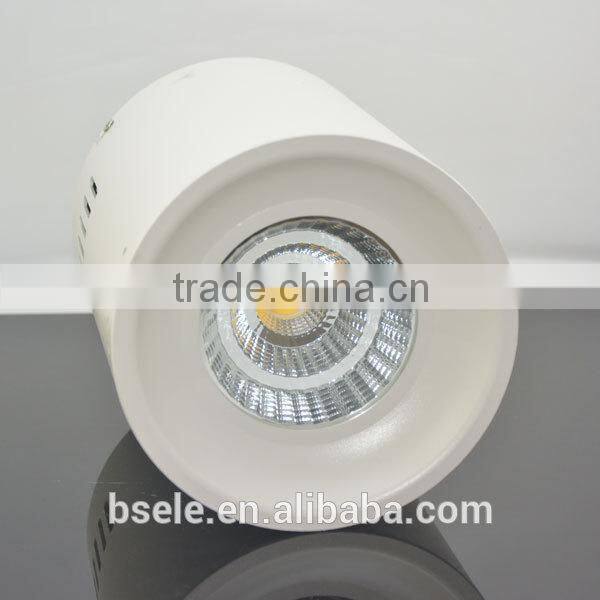

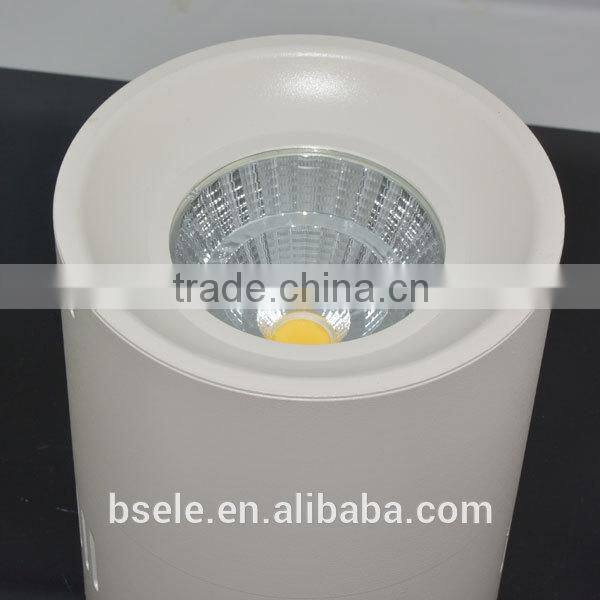

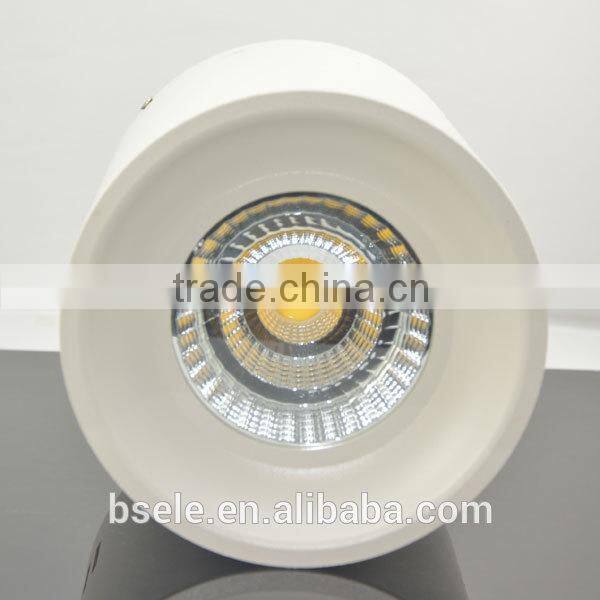

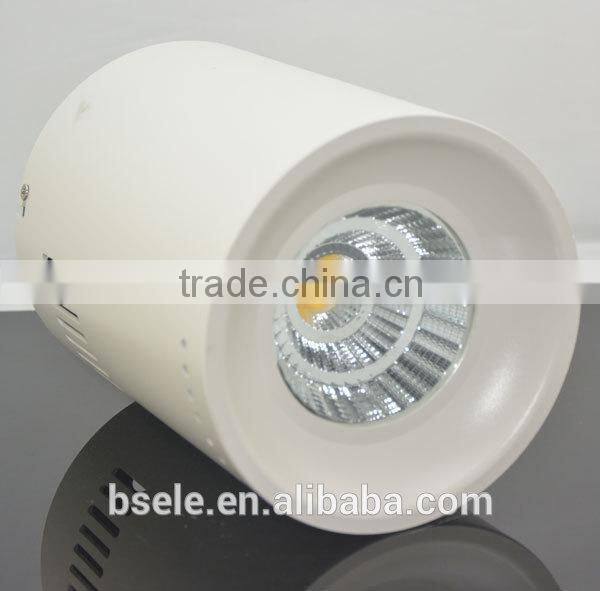

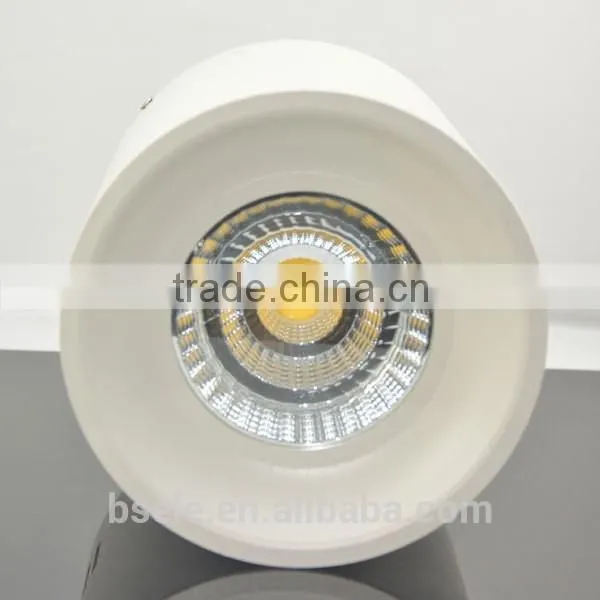

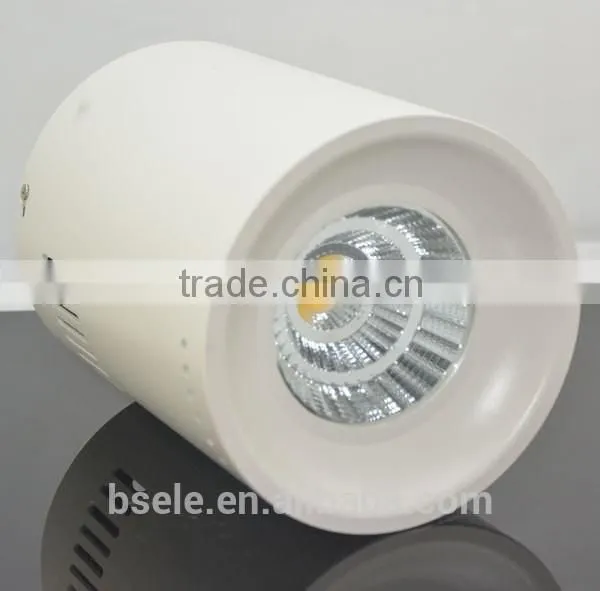

Product Photos
-Environment friendly,only 20% power consumption compare with tranditional lighting.
-Long lifespan 50,000 hours.
-Wide voltage design available.
-Anti-shock,Anti-moisture and No glare, No strobe light.
APPLICATIONS
1. Home/office lighting, display case lighting.
2. Under cabinet lighting.
3. Art lighting, hotel ,public house light.
4. Boat Lighting, accent lighting.
5. Recess lighting, shelf lighting.
6.Store lighting,commercial lighting.
QUALITY CONTROL
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature after 24 hours’ lighting.
Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
TRADE TERMS
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Guangzhou , China
5. Discounts : We offer discount for big quantity.
DELIVERY DETAIL
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.
OUR SERVICES
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
