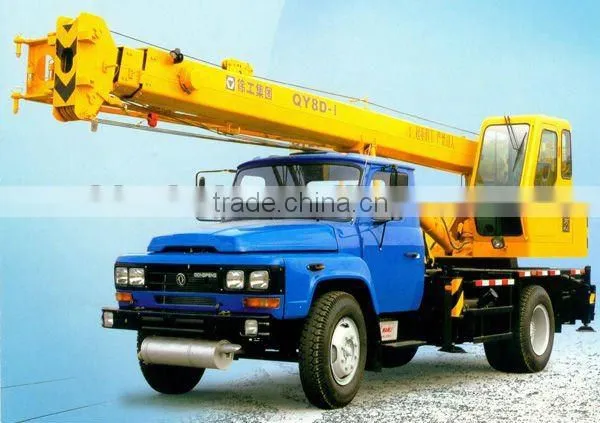

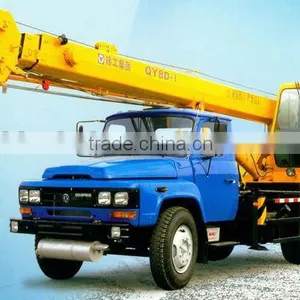

QY8D 8ton Hydraulic Mini Truck Crane XCMG Brand

Name: QY8D 8ton Hydraulic Mini Truck Crane XCMG Brand
Brand: XCMG
SKU: 102148049

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

1-8t

Rated Loading Capacity:

Shandong Sea Project Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1-8t

Rated Loading Capacity 8t

Rated Lifting Moment 235.2KN.m

Max. Lifting Load 8t

Max. Lifting Height 22.1m

Span 3.825m/4.000m

Place of Origin China

Brand Name XCMG

Model Number QY8D

Specifications

8ton hydraulic Truck crane
1.Overall 9080*2400*3180
2.Dead weight in travel state 10000kg
3.Front axle load 2600 kg

QY8D 8ton hydraulic mini truck crane XCMG brand

Specification:

Dimension	Unit	QY8B.5
Overall length	mm	9450
Overall width	mm	2400
Overall height	mm	3180
Weight
Total weight in travel	kg	10490
Front axle load	kg	2800
Rear axle load	kg	7690
Power
Engine model		XZJ5103JQZ8D89(domestic Ⅲ)
Engine rated power	kW/(r/min)	105/2500
Engine rated torque	N.m/(r/min)	500/1600
Travel
Max. travel speed	km/h	75
Min. turning diameter	mm	16000
Min. ground clearance	mm	260
Approach angle	°	29
Departure angle	°	11
Max. grade ability	%	28
Fuel consumption for 100km	L	25.5
Main performance
Max. rated total lifting capacity	t	8
Min. rated working radius	m	3
Turning radius at turntable tail	m	2.254
Max. lifting torque	KN.m	245
Base boom	m	8.2
Fully extended boom	m	19
Fully extended boom+jib	m	25.3
Longitudinal outrigger span	m	3.825
Lateral outrigger span	m	4.18
Working speed
Boom luffing time	s	28
Boom full extension time	s	31
Max. swing speed	r/min	2.8
Main winch single-pump/dual-pump converging (single rope)	m/min	53/110
