Help Center800w 36v dc Planetary Gear Motor
US$ 50 - 100
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GINDUN
Model Number:
ZY1020ZX
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO / SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Speed High Torque dc Motor for Golf Trolley ZY7712ZUS$ 45 - 100MOQ: 100 Pieces -
24v dc Gear Motor for Balance Vehicle ZY7716LZUS$ 40 - 100MOQ: 100 Pieces
-
Motor Generator 48v dc Model ZY1020ZXUS$ 50 - 100MOQ: 100 Pieces
-
200W12V DC Gear Motor for Golf Trolley Model ZY7712ZUS$ 40 - 100MOQ: 100 Pieces
-
Hot Selling DC Geared Motor for Balance Vehicle ZY7716LZUS$ 40 - 100MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
GINDUN
Model Number
ZY1020ZX
Usage
Electric Bicycle, Other, Electric Bicycle, Geared PMDC motor for electric vehicle
Certification
CE
Type
Gear Motor
Torque
2.24
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
3750
Continuous Current(A)
2.5
Output Power
800W
Voltage(V)
36V
Product Size: 100mm in Diamater, 206mm in Length
Voltage: 24V / 36V / 48V
Torque: 1.22-2.24N.m
Rated Output: 350W-800W
Speed: 3000-3750rpm
Efficiency: ≥78%

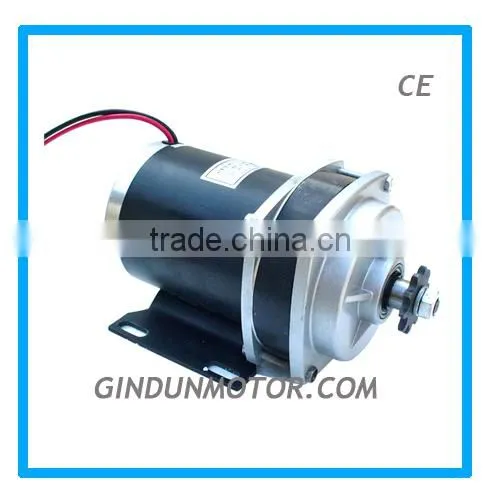

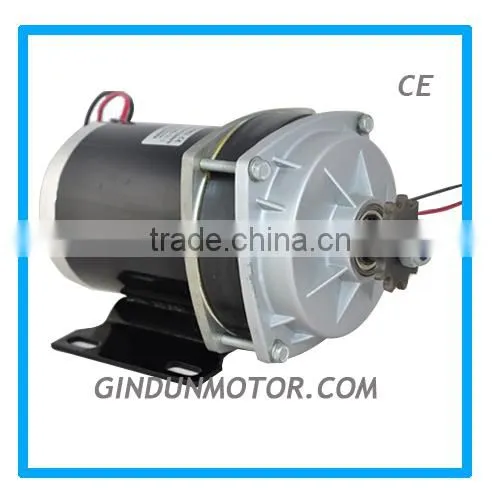

1. Product Photo

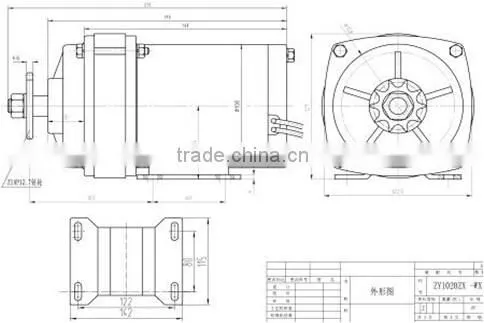

2.Product Demision
3. Technical Data
| Specifications | No-load | Loaded | ||||
| Current/A | Speed/rpm | Torque/N.m | Speed/rpm | Rated Output/W | Current/A | |
| 350W24V | 2 | 3000 | 1.22 | 2750 | 350 | 18.7 |
| 350W36V | 2 | 3000 | 1.22 | 2750 | 350 | 12.5 |
| 500W24V | 2.5 | 3300 | 1.59 | 3000 | 500 | 26.7 |
| 500W36V | 2 | 3300 | 1.59 | 3000 | 500 | 17.8 |
| 500W48V | 2.5 | 3600 | 1.49 | 3200 | 500 | 26.7 |
| 600W48V | 2 | 3750 | 1.74 | 3300 | 600 | 20 |
| 750W36V | 2.5 | 3750 | 2.24 | 3200 | 750 | 28.5 |

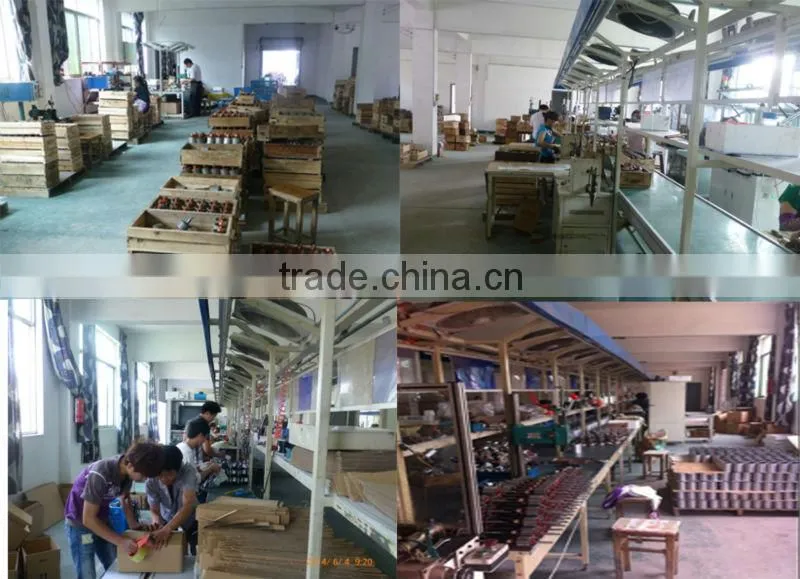

4. Factory Profile
Our company can product the motor in diameter from 55 mm to 108 mm, voltage from 6 volts to 110 volts, power from 10 watts to 1000 watts, speed change from 300 to 6000.
Whats more we can product the motors in accordance with customers requirements.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
