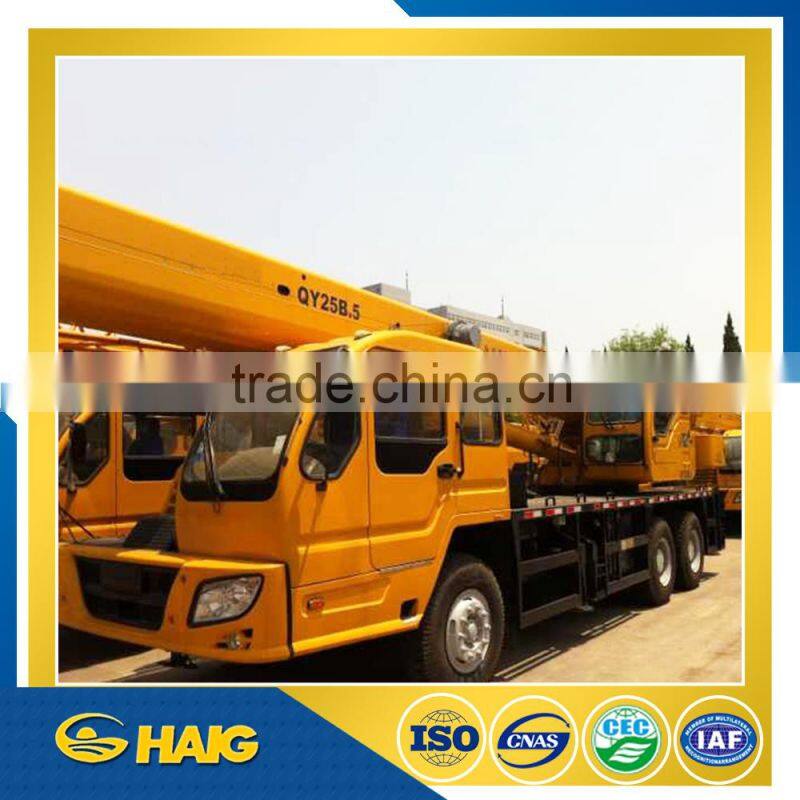

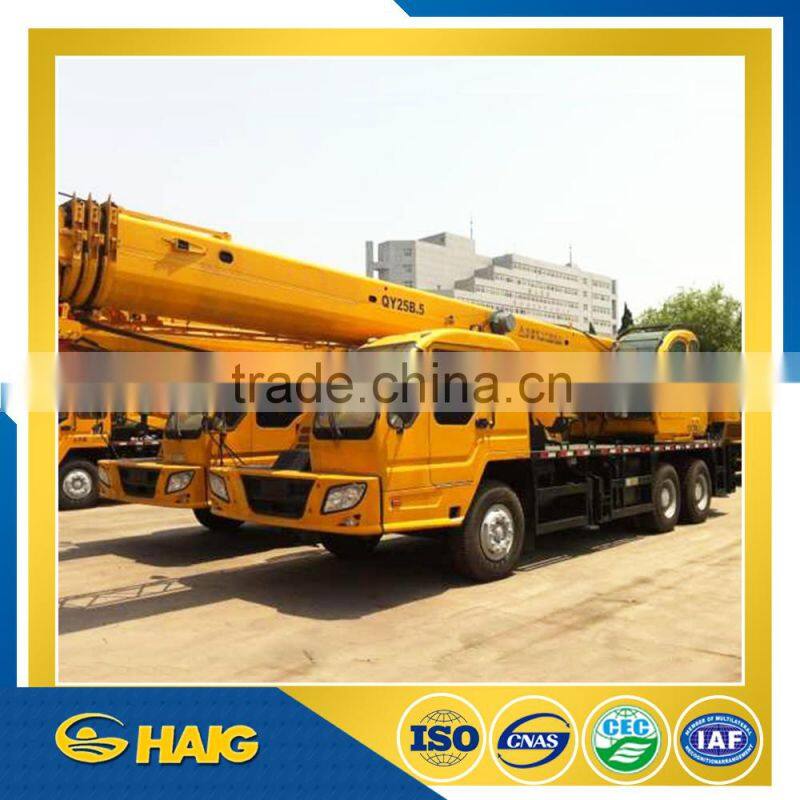

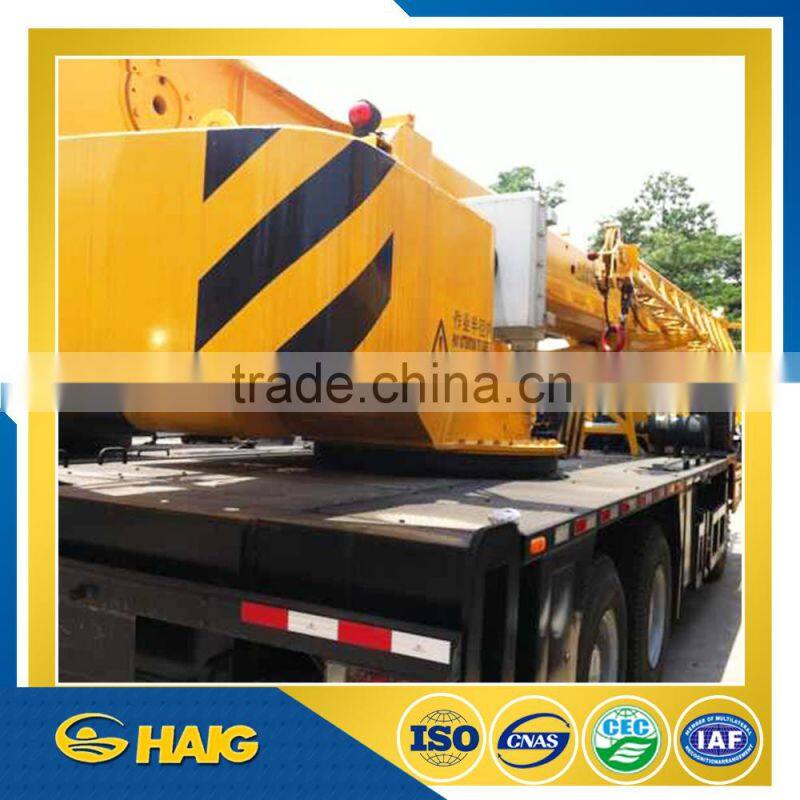

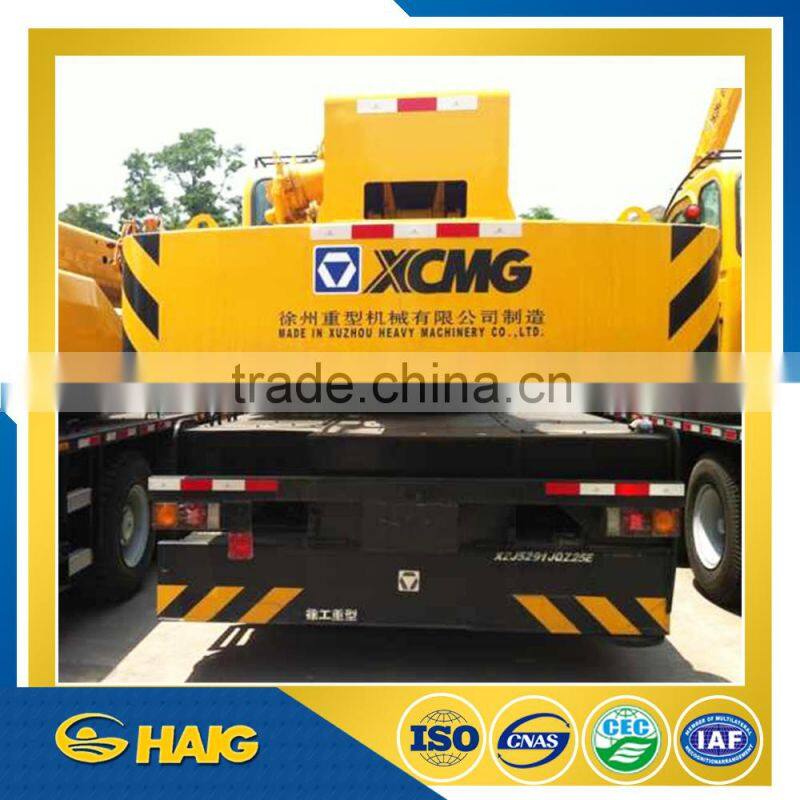

pickup truck crane with lifting height
Dimension |
Unit |
QY25B.5 |
Overall length |
mm |
12990 |
Overall width |
mm |
2500 |
Overall height |
mm |
3430 |
Weight |
||
Total weight in travel |
kg |
29000 |
Front axle load |
kg |
6970 |
Rear axle load |
kg |
22030 |
Power |
||
Engine model |
SC8DK260Q3 |
|
Engine rated power |
kW/(r/min) |
192/2200 |
Engine rated torque |
N.m/(r/min) |
1000/1400 |
Travel |
||
Max. travel speed |
km/h |
75 |
Min. turning diameter |
m |
20 |
Min. ground clearance |
mm |
272 |
Approach angle |
° |
16 |
Departure angle |
° |
13 |
Max. grade ability |
% |
30 |
Fuel consumption for 100km |
L |
40 |
Main performance |
||
Max. rated total lifting capacity |
t |
25 |
Min. rated working radius |
mm |
3000 |
Turning radius at turntable tail |
m |
3.450 |
Max. lifting torque |
kN.m |
1010 |
Base boom |
m |
10.85 |
Fully extended boom |
m |
34.19 |
Fully extended boom+jib |
m |
42.3 |
Longitudinal outrigger span |
m |
5 |
Lateral outrigger span |
m |
6 |
Working speed |
||
Boom luffing time |
s |
75 |
Boom full extension time |
s |
100 |
Max. swing speed |
r/min |
3 |
Max. speed of main winch (single rope) |
m/min |
120 |
Max. speed of aux. winch (single rope) |
m/min |
120 |
- More excellent performance
- More reliable quality
- Easier to operate
- Easier to maintain
- More energy-efficient and environmental friendly
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received the telephone.
6. For exported products, Our company sends the constructor to help to operate and management equipment, time according to your needs. The related fee will be undertaken by buyers.
7. Promptly provides the fittings according to users’ demands, handles for the user consigns for shipment.
8. All products (easy worn parts not included) loss caused by non-human factors will be free of charge for half a year.
9. Provides the technology advisory service as necessary.
1.Reach Stacker
2.Truck Crane
3.Rough Terrain Crane
4.Crawler Crane
5.Truck -mounted Crane
6.Tower Crane
Please contact me for the detailed information and quotation. You are welcomed to visit our company to see the products. We want to achieve a long term win-win cooperation with you!
