Specifications
Type: U channel/C channel
size:40x20x3mm-200x100x12mm
have stock and fast delivery
grade:201 202 301 304 316 316L 321
Type |
Stainless steel channel bar |
Thickness |
3mm---80mm |
Width |
10mm---200mm |
Length |
2000mm---7500mmm or as customer |
Standard |
ASTM, ASME, EN, BS, GB, DIN, JIS, etc |
Material |
201, 202, 301, 302, 303, 304, 304L, 304N1, 304N2, 316, 316L, 316N, 316LN, 317, 317L, 321, 347 |
Application range |
Foodstuff, gas, metallurgy, biology, electron, chemical, petroleum, boilers, nuclear, energy and medical equipment, fertilizer, etc |

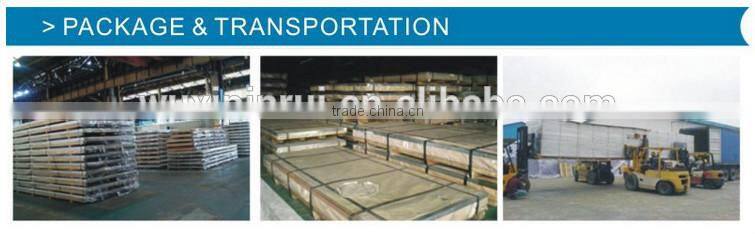

Packing |
Standard export sea-worthy packing |
Delivery time |
15-20days |
Productivity |
600 tons per month |
Note |
We can produce other standard as the customer' s requirement |
| Specification | |||||
| NO | W*H*T (MM) | NO | W*H*T (MM) | NO | W*H*T (MM) |
| 1 | 50*37*4.5 | 12 | 200*73*7.0 | 23 | 300*87*9.5 |
| 2 | 63*40*4.8 | 13 | 200*75*9.0 | 24 | 300*89*11.5 |
| 3 | 80*43*5.0 | 14 | 220*77*7.0 | 25 | 320*88*8.0 |
| 4 | 100*48*5.3 | 15 | 220*79*9.0 | 26 | 320*90*10 |
| 5 | 120*53*5.5 | 16 | 250*78*7.0 | 27 | 320*92*12 |
| 6 | 140*58*6.0 | 17 | 250*80*9.0 | 28 | 360*96*9.0 |
| 7 | 140*60*8.0 | 18 | 250*82*11 | 29 | 360*98*11 |
| 8 | 160*63*6.5 | 19 | 280*82*7.5 | 30 | 360*100*13 |
| 9 | 160*65*8.5 | 20 | 280*84*9.5 | 31 | 400*100*10.5 |
| 10 | 180*68*7.0 | 21 | 280*86*11.5 | 32 | 400*102*12.5 |
| 11 | 180*70*9.0 | 22 | 300*85*7.5 | 33 | 400*104*14.5 |
- Architectural/Civil Engineering: Cladding, handrails, door and window fittings, street furniture, structural sections, enforcement bar, lighting columns, lintels, masonry supports.
- Transport: Exhaust systems, car trim/grilles, road tankers, ship containers, ships chemical tankers, refuse vehicles.
- Chemical/Pharmaceutical: Pressure vessels, process piping.
- Oil and gas: Platform accommodation, cable trays, sub-sea pipelines.
- Medical: Surgical instruments, surgical implants, food processing.
- Food and Drink: Catering equipment, brewing, distilling, food processing.
- Water: Water and sewage treatment, water tubing, hot water tanks.
- General: Springs, fasteners(bolts, nuts and washers) wire.
company information
Our company is located in Wuxi--the biggest stainless steel products center in China.Near the Shanghai port.Our main products is stainless steel sheet, stainless steel plate, stainless steel pipes, stainless steel round bar, stainless steel channel bar, stainless steel angle bar, stainless steel square tube and so on.The main material of our products is 201 202 301 302 303 304 314L 309S 310S 310H 316 316L 317L 321 410 420 430 434 439 duplex steel 904L 2205 2520 S31803 S32750 S32760.etc.
We welcome my friend from World wide discuss business with us.
Q1: Are you Manufactory or Trade Company?
A: We are the Trade Company in Wuxi, Jiangsu province, China.
Q2: What products can you offer?
A: We can offer you general steel types like 310S, , 316L,304.304L.201,904L, 316H, 316,316L 300and 400 series, and duplex stainless steel like 2205, 2304,2101,2507,etc. 904L, 800H, 600H high-nickel alloy.
Q3: How do you control the quality?
We have professional inspectors to analyze chemical composition of raw materials and test the finished products strictly according to standard stipulated in the contract. In this process, Internal and external surfaces, two ends appearance, bending degree, fixed length, outer diameter and wall thickness dimension etc will be checked one by one. You can be assured that all the products you get from us are reliable.
we can accept smaller quantity at frist. Surely we will have further and longer partnership after the beginning.
