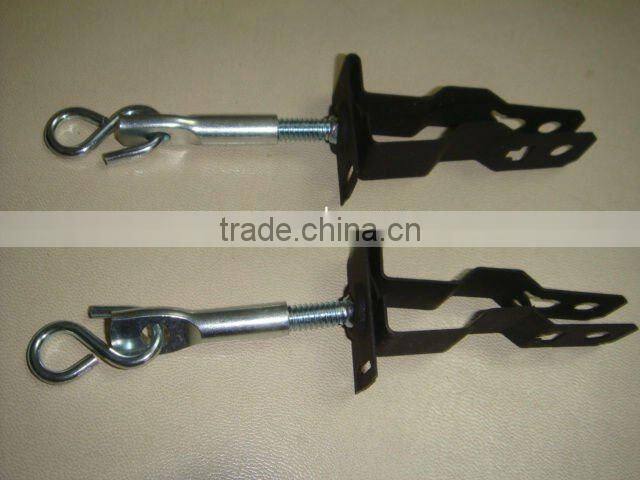

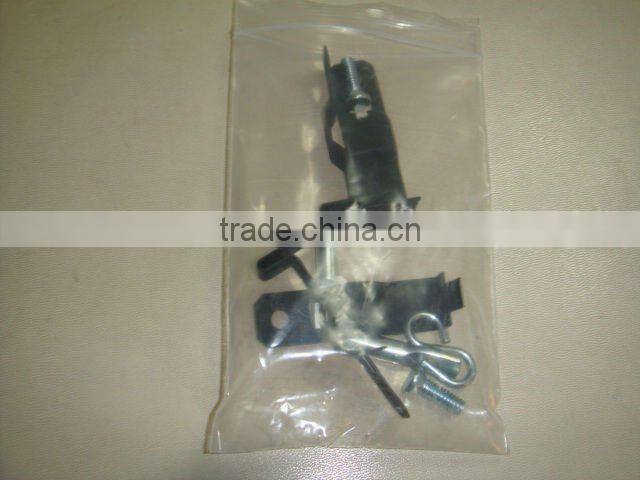

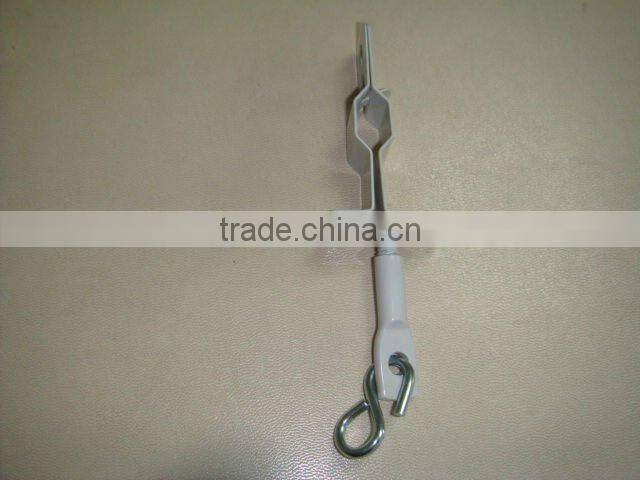

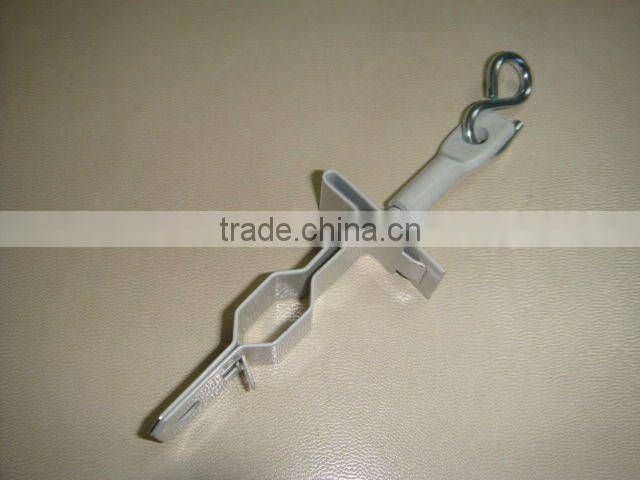

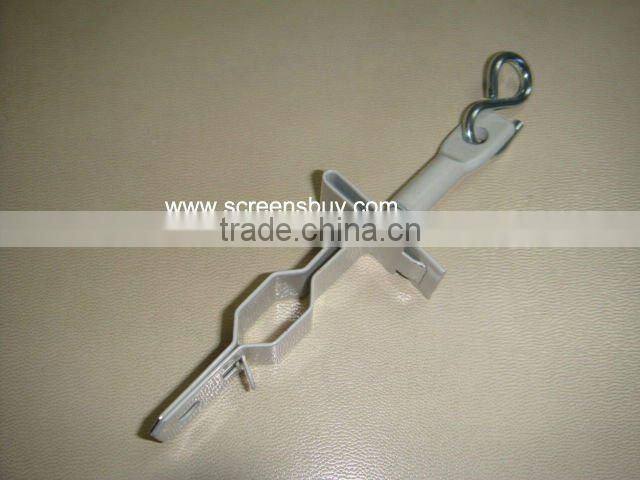

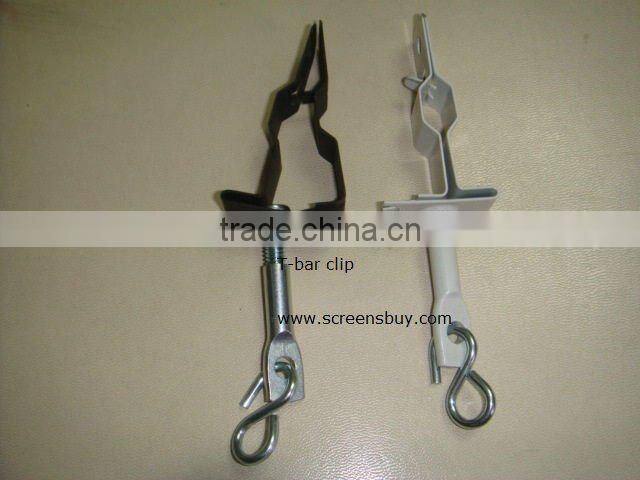

Help CenterT-bar Clip/Screen Hanger
Related Products
Specifications
1.Measure distance between D-ring of screen2.Insert S-hook into hole of adapter and D-ring of screen
3..Use pliers to close
Product features:
Use for attaching screens easily and without tools to dropped ceiling type "T" rails. Use on drop or suspended ceiling. Easy installation - just attach t-Bar clip to T-Bar and snap together. Attach a support wire to the top of the T-Bar clip to the building structure.
Technical specification:
Item model number: HX-4098
Product Dimensions: 6.5 x 3.2 x 1 inches
Shipping Weight: 3 pounds
Weight and freight class: 0.05 lbs
Load: For screens up to 50 lbs. Do not use on screens weighing over 50 lbs
Features/Standard Equipment:

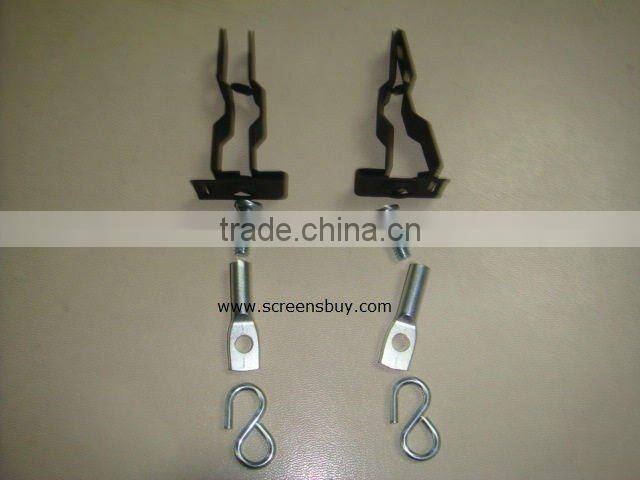

- Two piece clips snap together, forming a sturdy hold on the ceiling grid
- Swivel rod with 'S' hook is attached
- For use with projector screens only.
Material: Steel
Color: Black clip and swivel rod, silver 'S' hook
Instruction for using T-bar clip:

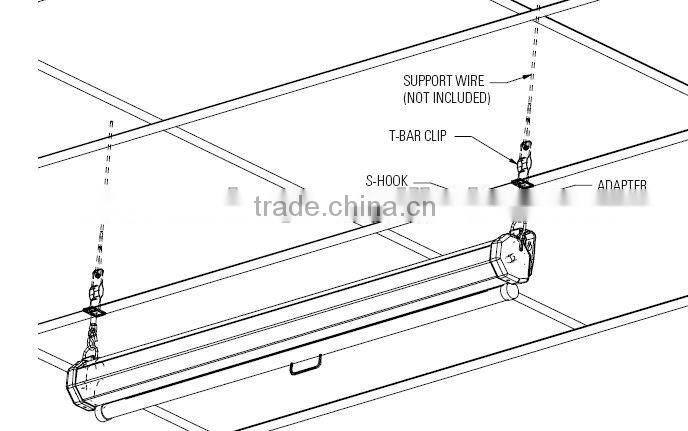

1.Measure distance between D-ring of screen and transfer this distance to T-bar for location of T-bar clip.

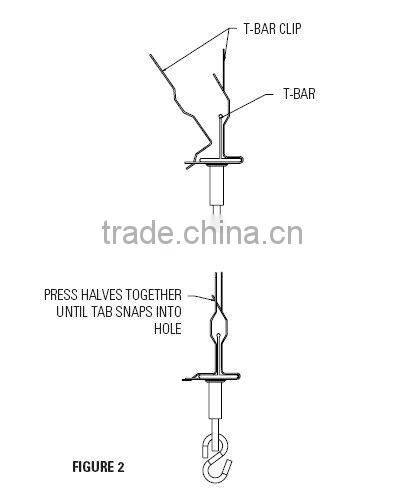

2.Attach T-bar clip to T-bar as shown in the Figures 1 and 2. Note: A support wire must be attached to the top of the T-bar clip and the building structure above the drop ceiling.
3.Insert S-hook into hole of adapter and D-ring of screen.
4.Use pliers to close both loops of S-hook.
5.Do not remove for re-use
