Description

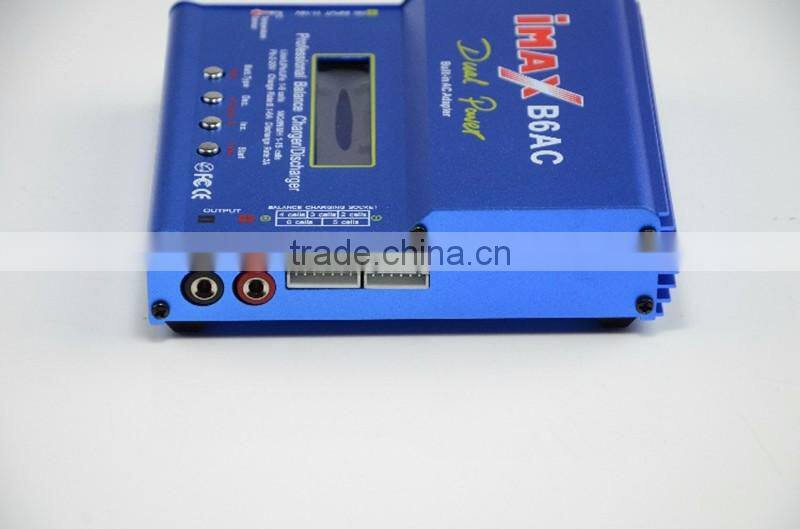

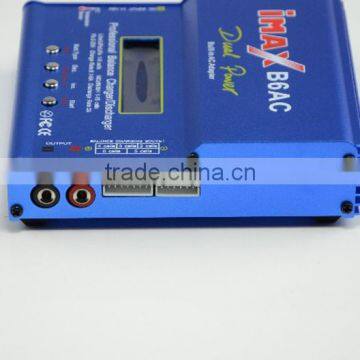

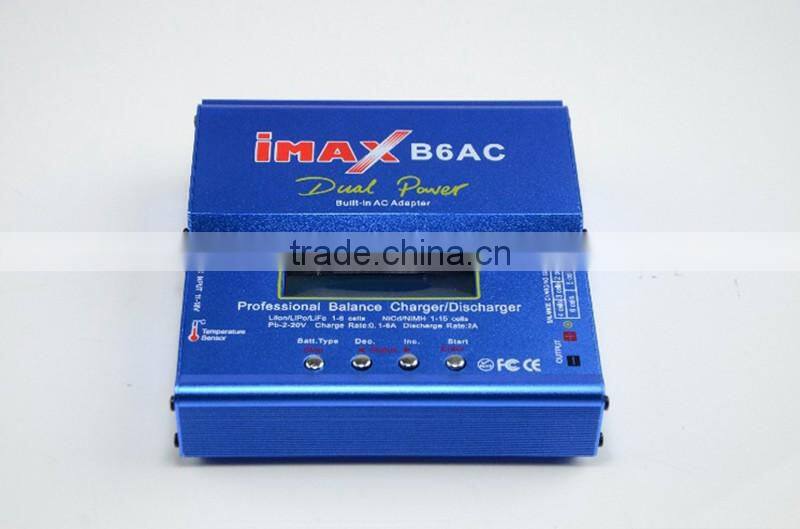

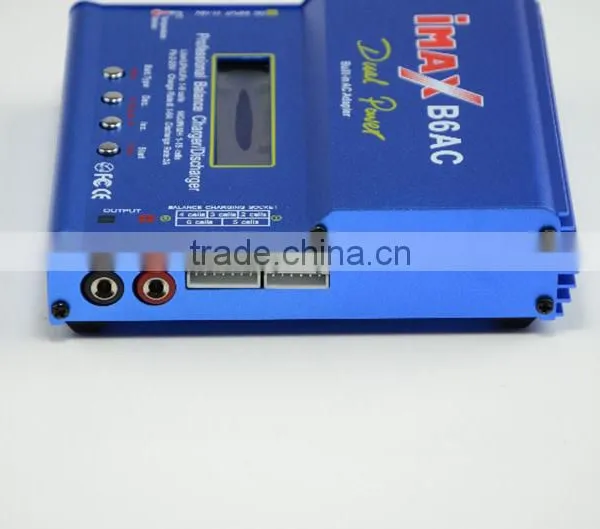

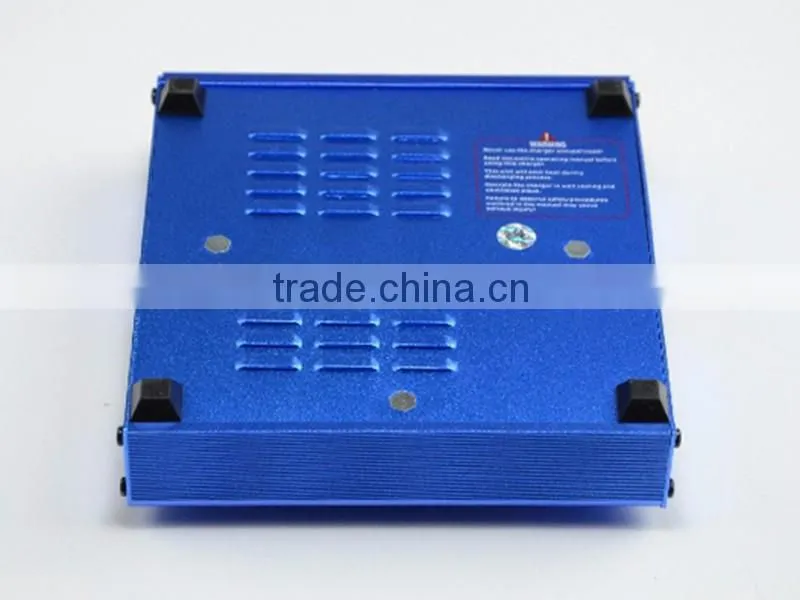

Sky-B6AC-A1 Original Skyrc IMAX B6AC Battery Balance Charger For Lipo NiMH 2S-6S RC Battery B6-AC Charger with leads
Optimized operating software
B6AC features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent the overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users!
Internal independent lithium battery balancer
B6AC employs an individual-cell-voltage balancer. It isn’t necessary to connect an external balancer for balance charging.
Balancing Individual Cells Battery Discharging
During the process of discharging, B6AC can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
Adaptable to Various Type of Lithium Battery
B6AC is adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.
Fast and Storage Mode of Lithium Battery
Purposes to charge Lithium battery varies, ‘fast’ charge reduce the duration of charging, whereas ‘store’ state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
Cyclic Charging/Discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable for battery refreshing and Balancing to stimulate the battery's activity.

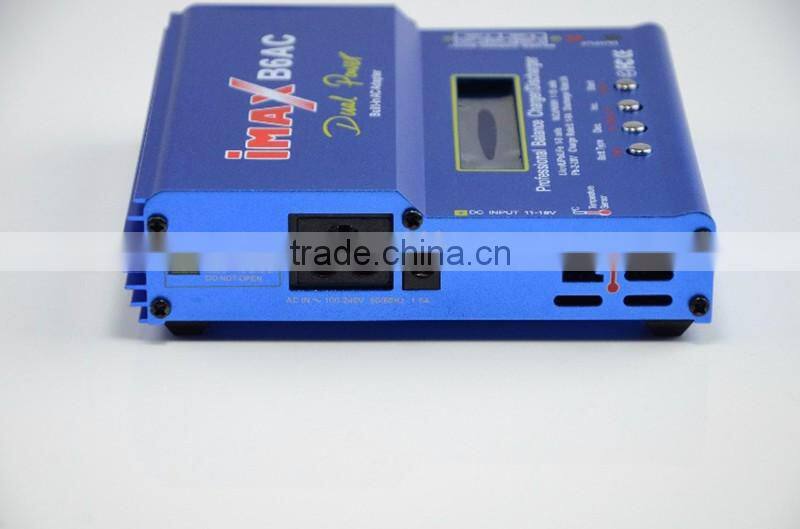

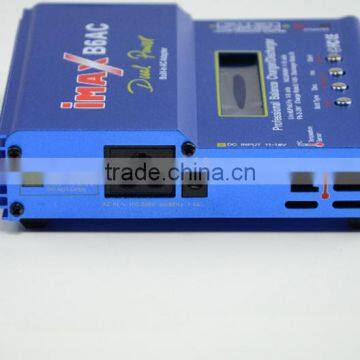

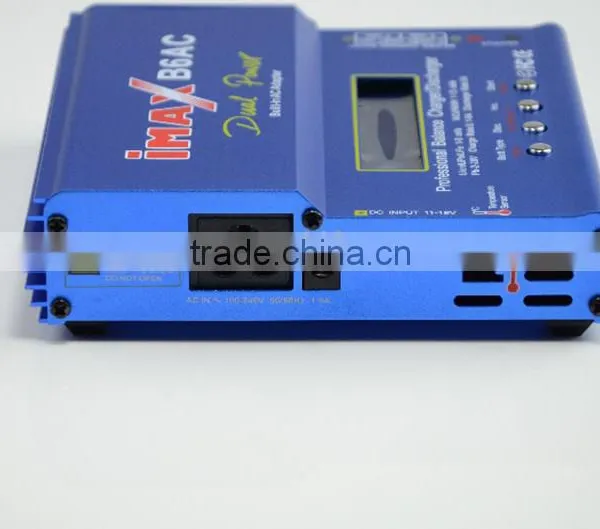

AC input: 100-240Volt
DC input: 11-18Volt
Circuit power: Max.charge power 50W
Max.discharge power 5W
Charge current range: 0.1-5.0A
Discharge current range: 0.1-1.0A
Current drain for balancing Li-po: 300mA/cell
NiCd/NiMH battery cell count: 1-15cells
Li-ion/Polymer cell count: 1-6cells
Pb battery voltage: 2-20V
Net weight: 575g
Dimension: 135x144x36mm

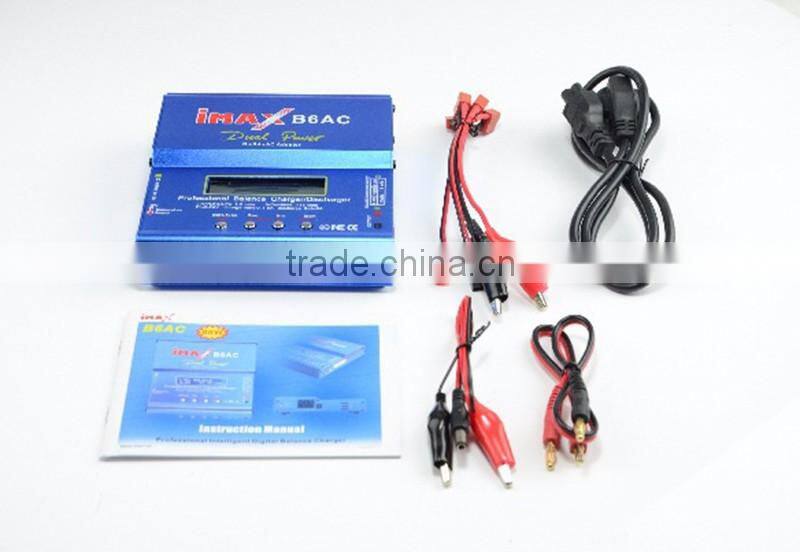

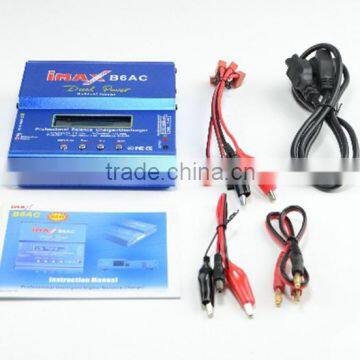

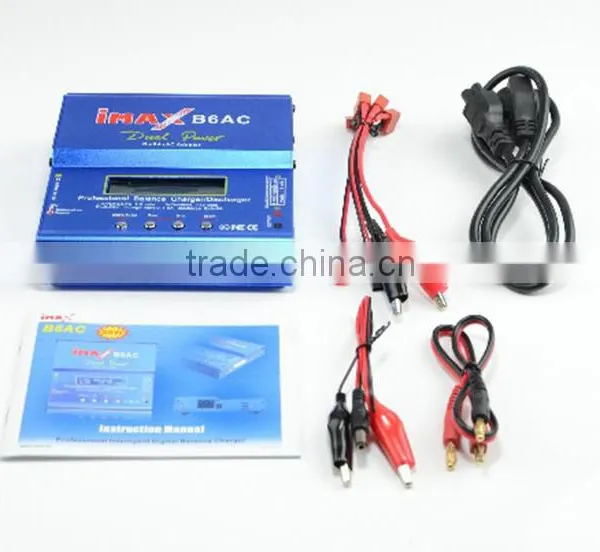

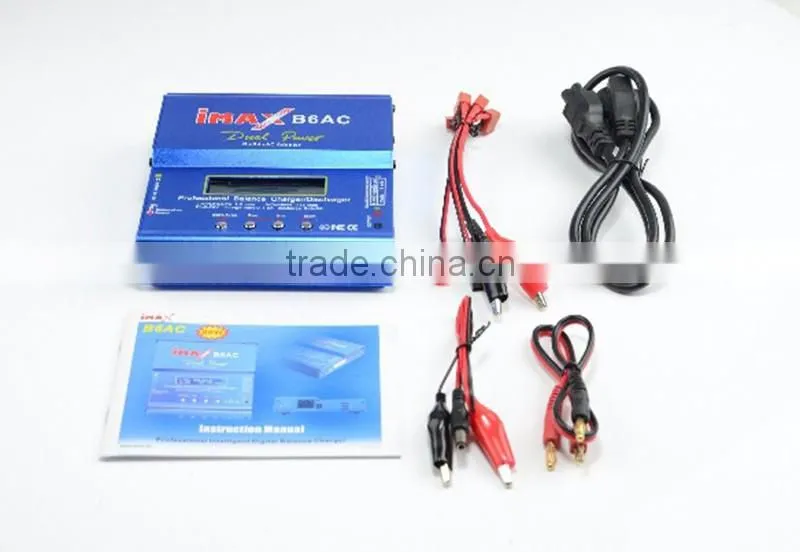

One Box Packagement:
1x Original skyrc IMAX B6AC Li-Po battery balance charger (Built in Power Supply)
1x 100 - 240V Power Supply wire
1x English manual
100% Brand New
