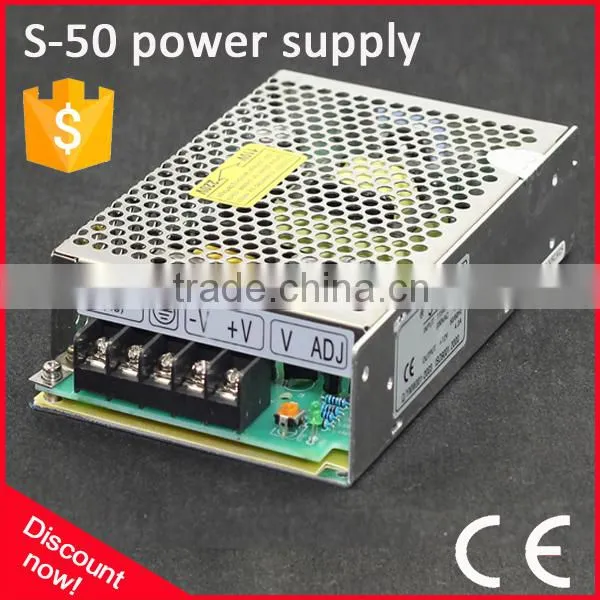

S-50-15 50W 15V DC Switching Power Supply

S-50-15 50W 15V DC Switching Power Supply thumbnail-1
S-50-15 50W 15V DC Switching Power Supply photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JUNXELE
Model Number:
S-50-15 50W 15V
Contact Supplier Request Quote Chat Now
Wenzhou Junxiong Electrical Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JUNXELE
Model Number S-50-15 50W 15V
Output Power 1 - 50W
Output Type Single
Input Voltage Other, 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Output Voltage 15V
Output Frequency 47-63HZ
Output Current 3.4A

S-50-15 50W 15V  DC switching power supply



1. Low price and high reliable.



2. 105 `C output capacitor



3. AC input power suitable for the world



4. High efficiency and how operation temperature.



5. Soft-start current can reduce the AC input impact effecticly.



6. With short-circuit and overload protection.



7. Compact size, light weight.



8. 100% full-load buming test.



9. installed with EMI filter, minmum wave.





What is the story of JUNXELE ?





If Ask me, What is the Most Important switchgear in the World? Children will Tell You the Truth. in a Poor Village, Innocent Children no Education, no Happiness and no Hope. However, JUNXELE Brings new Power and Love There. After That,Sunshine Smile is Always around Children. They See Hope for Everything and Know How to Deliver Love with Lightness.







JUNXELE Brings Brightness, Warmness and Hope. Let me Know What is LOVE!!!







Product Description

 S-50-15 50W 15V DC switching power supply

S-50-15 50W 15V DC switching power supply

Model Specification S-50-5V S-50-12V S-50-15V S-50-24V
DC Output Voltage 5V 12V 15V 24V
Iutput Voltage Error ± 2% ± 1% ± 1% ± 1%
Rated Output Current 10A 4.2A 3.4A 2.1A
Output Current Range 0-10A 0-4.2A 0-3.4A 0-2.1A
Tripple and Noise 75mVp-p 100mVp-p 100mVp-p 100mVp-p
Iniet Stability ± 0.5% ± 0.5% ± 0.5% ± 0.5%
Tolerance Voltage ± 1% ± 0.5% ± 0.5% ± 0.5%
DC Output Power 50W 50.4W 51W 50.4W
Efficiency 71% 78% 78% 82%
Adjustable Range for DC Voltage `+10, -5% ± 10% ± 10% ± 10%
AC Input Voltage Range 85~132VAC/170~264VAC selected by switch 47~63Hz; 240~370VDC
Input Current 1.3A/115V 0.65A/230V
AC Inrush Current Cold-Start Current: 18A/115V, 36A/230V
Leakage Current <1mA/240VAC
Overload Protection 105%~150% Type: Cut Output, Reset: Auto Recovery
Over Voltage Protection …………
High Temperature Protection …………
Temperature Coefficient ± 0.03% /°C (0~50°C)
Start, Rise, Hold time 200ms, 100ms, 20ms
Vibration 10~500Hz, 2G 10min,/1cycle, a total of 60 minutes, Each axes
Withstand Voltage Between Input and Output: 1.5KVAC, Input and Shell: 1.5KVAC, Output and Shell: 0.5KVAC
Isolation Resistance Input and Output Intermal: Input and Enclosute, Output and Enclosure: 500VDC/100M Ohms
Working Temperature and Humidity `-10°C~+60°C (Refer to Output Derating Cutve), 20%~90%RH
Storage Temperature and Humidity `20°C~+85°C, 10%~95%RH
Overall Dimension 159*98*38mm
Weight 0.5kgs
Safety Standards Meet UL 1012 requirement (Not apply for the mark)
EMC Standards Meet FCC Part 15J Conduction class B



 S-50-15 50W 15V DC switching power supplyS-50-15 50W 15V DC switching power supplyS-50-15 50W 15V DC switching power supplyS-50-15 50W 15V DC switching power supply



Packaging & Shipping





S-50-15 50W 15V DC switching power supplyShipping



1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.

Payment Terms
1. Payment: T/T, Western Union, B/L ; 30% deposits; 70% balance before delivery.
2.MOQ: 1pcs.



Our Services



1.We are Alibaba Assessed Gold Supplier.

2.We are a factory manufacturing circuit breaker,contactor,power supply, transformer,best production capability ,best quality control, Best Service .

3.100% QC inspection Before Shippment.

4. CE/SAA/SEMKO/KEMA/VDE listed,competitve price.

S-50-15 50W 15V DC switching power supply
