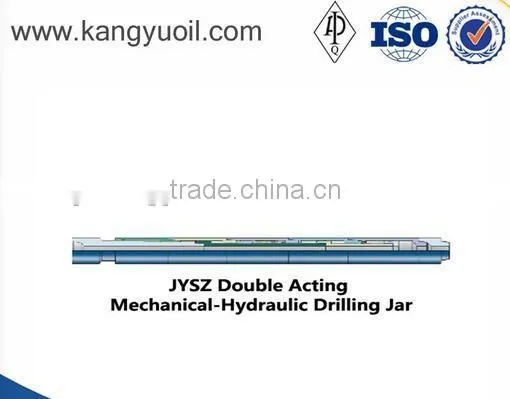

Help CenterJYSZ Double Acting Mechnical-Hydraulic Drilling Jar
Related Products
-
QYSZ Double Acting Hydraulic Drilling Jar for OilfieldUS$ 1000.00 - 1000.00MOQ: 1 Set -
KXJ Type Fishing Bumper Sub for Drilling JarUS$ 1000.00 - 1000.00MOQ: 1 Set
-
BXJ Type Lubricated Fishing Bumper Sub for Oil Drilling JarUS$ 50 - 100MOQ: 1 Set
-
ZSJ/ZXJ Hydraulic&Mechanical Two-piece Drilling Jar/jarsUS$ 13000.00 - 13000.00MOQ: 1 Set
-
DJ Type Surface Bumper Jar/ API Drilling JarsUS$ 1000.00 - 1000.00MOQ: 1 Set

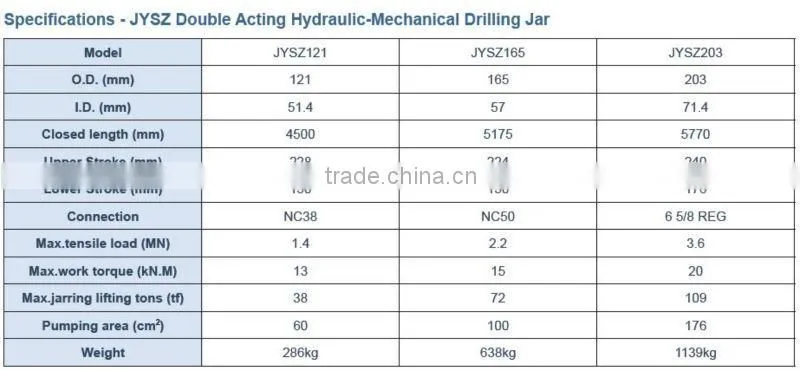

Specifications
1).API STANDARD
2).SAFE AND RELIABLE
3).DELIVERY ON TIME.
4).COMPETITIVE PRICE
ALL DEPENDS ON ENOUGH CREDIBILITY.
The drilling jar is consists of drilliing up jar and drilling down jar in one bdy,which has stable working performance and strong jarring force both up and down.When in down hole,it can release the struck;it is a desire tool for directional well and deep well.
Working principle
Up jarring
Lowering drill string to make drilling jar closed completely in locking position,elevating drill string by the order of small tonnage to larger tonnage,which makes spring and hydraulic cylinder delay, when mandrel move to a position and become release resistance, the spring force stored in drill string will transfer to upforward energy and up jarring. Repeating the above several times can force tool to produce continues up jarring.
Down jarring
Move up and down the drill string to make drilling jar closed completely (in locking position), lowering drill string to make spring compressed and stored energy. When pressure of jar is larger than the desired lower unlocking force, grapple will slide out from mandrel to release the locking and make down jarring. Repeating the above several times can force tool to produce continues down jarring.
