Help CenterTQ340/35Y Hydraulic Casing Power Tongs From DYQX Petro
Related Products
-
API 7K ZQ203 Drill Pipe Hydraulic Power Tong From DYQX PetroUS$ 2000.00 - 2000.00MOQ: 1 Set -
API 7K XQ28-2.6Y Sucker Rod Hydraulic Power Tong From DYQX PetroUS$ 2000.00 - 2000.00MOQ: 1 Set
-
API 7K Sucker Rod Hydraulic Power Tong From DYQX PetroUS$ 2000.00 - 2000.00MOQ: 1 Set
-
API Oilfield Polished Rod Clamp With Best Price and QualityUS$ 1 - 20,000MOQ: 1 Set
-
Api Oil Drilling SP Single Joint/phsase Elevator With Quality Guaranteed in StockUS$ 9000.00 - 12000.00MOQ: 1 Set

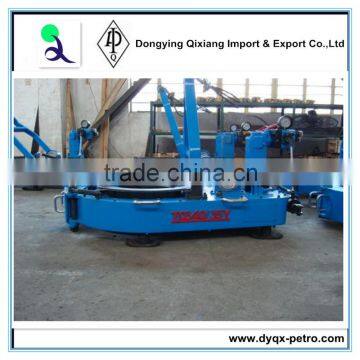

TQ340/35Y Casing Power Tongs is a type of casing tongs which adopts hydraulic drive, and widely used for making-up and breaking-out of 4"~13 3/8" pipe or casing in drilling operation of oil field.
Open-throat design of the TQ casing tongs series allows the tongs to trip out of casing freely with high mobility. Planetary gearbox adopts air tyre clutch, and it can shift gear under running and work high efficiently.
The tongs are designed and manufactured according to API Spec 7K “Drilling and well serving Equipment”.
Technical Specification
Model |
TQ340/35Y |
||
Drive Mode |
Hydraulic Drive |
||
Applicable Casing Diameter |
mm |
101.6~340 |
|
in |
4~13-3/8 |
||
Normal Pressure |
MPa |
12~18 |
|
psi |
1740~2610 |
||
Rated Flow |
L/min |
114 |
|
gpm |
30 |
||
Max. Torque |
High gea |
KN·m |
4~5.5 |
lbf·ft |
2950~4056 |
||
Low gear |
KN·m |
27~35 |
|
lbf·ft |
19910~25800 |
||
Rotational |
High gea |
rpm |
60~86 |
Low gear |
rpm |
2.6~5.3 |
|
External Dimensions |
mm |
1560×900×860 |
|
in |
61.4×36×34 |
||
Weight |
kg |
760 |
|
lb |
1670 |
||
Our main products:
Drill Equipment, Well control system,OCTG, Well head tools, camps,drill bit and spray head,drilling instruments, cementing, oil mining equipment, water well drilling rig and petrochemical products,Electric oil-submersible pump unit, QYYEQ Submersible power cables and so on.
Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).
Our Service Objective: People-O riented, Quality firstly and Best service.
Welcome to Visit DYQX petro.
