Home > Transportation > Trailer > Truck Trailer > AircraftGround Power Unit G140

AircraftGround Power Unit G140

Name: AircraftGround Power Unit G140
Brand: camel
SKU: 102108683
Availability: InStock

AircraftGround Power Unit G140 thumbnail-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Tianjin, China

Brand Name:

camel

Model Number:

G140

Contact Supplier Request Quote Chat Now

Tianjin Camel Aerotech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Tianjin, China

Brand Name camel

Model Number G140

Specifications

AircraftGround Power Unit G140
1.Overall Dimensions (L*W*H):3950mm*1926mm*1743mm
2.Gross vehicle Weight:3750kg
3.AC Voltage

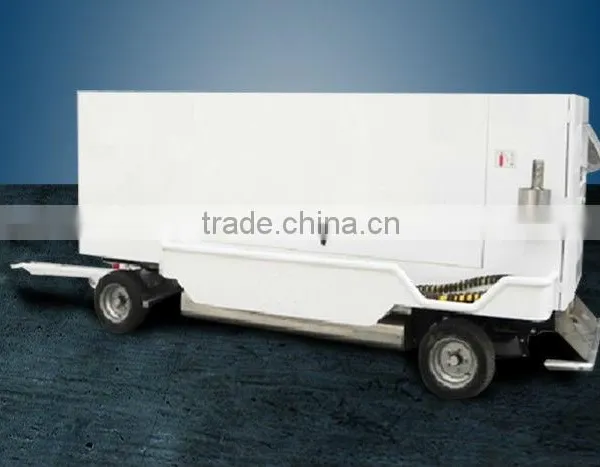

Aircraft Ground Power Unit G140

Camel Ground Power Unit G140 offers innovative low noise ground power supply solution on all types of aircraft, both 400Hz AC and 28V DC electrical system.
G140 features Basler DGC-2020 digital generator control system which offers sophisticated controlling, monitoring, and protection on generator. The CPU in the system allows fine adjustment on technical parameters.
Multiple protection mechanism, including over/under voltage, over/under frequency, overload, low oil pressure, and high engine temperature etc, make the system safe and reliable.
Two side open canopy make the inspection, maintenance, and repairing easy and convenient.

Operating performance
Overall Dimensions (LWH) :	3950mm1926mm1743mm
Gross vehicle Weight	3750KG
Min. ground clearance	144mm
Wheel track (front/rear)	880mm/1450mm
Wheel base	2295 m
Max. towing speed	15 km/h
AC Voltage	115/200 V
AC Current	404 A
Frequency	400 Hz

Power Factor	0.8
DC Power	22.8 KW
DC Voltage	28.5 V
DC Current	800 A
Output	2 sets AC output, 1 set DC output

Standard Features
Engine	Deutz BF6M1013EC 163kw
Generator	AC Synchronous Generator B1620
Generator Power	115 kw
Insulation Level	F
Voltage Regulator	Basler AVC63-12
Generator Control System	Basler DGC-2020
Battery	1200 Ah /12V
Fuel Tank Capacity	315 L
Electrical	24Volt DC
Tire	195/50 B10
Environment emperature:	-10°C to +40°C
Relative humidity	≤95%(25°C)
Height	Less than 4000m
