Ruizhou CNC cutter for auto-upholstery

Specifications

Accutate pattern cutting,high performance,good quality,most competitive product.Your first choice?

The head-office of Ruizhou technology





1. 15 years of experience in CNC cutting technology;

2. The first and biggest CNC cutting machine manufacturer in China;

3. We only focus on the research and development of CNC knife-cutting technology and related CAD software over the past 15 years;

4. We use HAAS and DMG machine tool to process key components;

5. We imported Servo Motor from Panasonic and Straight-line guide rail from Germany;

6. We regard quality and service as the life of our corporation;

7. We will never be satisfied until you are satisfied;

8. Our engineering team never stops to improve our machine and upgrade our software;





A multifunctional tool head incorporating an oscillating knife, a marking pen and a creasing wheel.

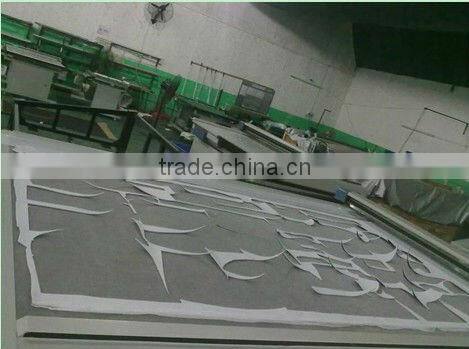

The scenery of machine from the factory of our customer.

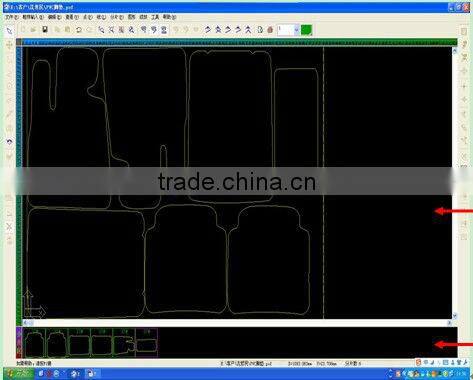

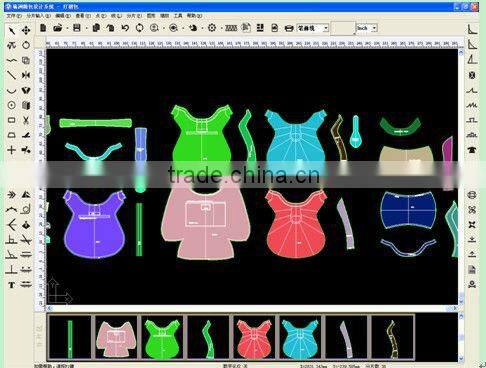

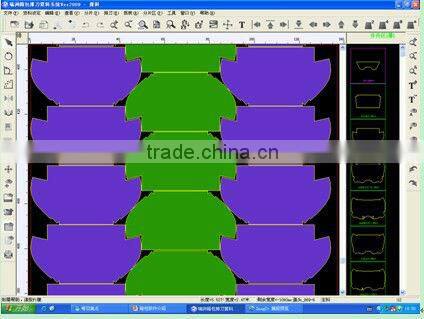

By using auto-nesting software reachs the high utilizition rate of material.

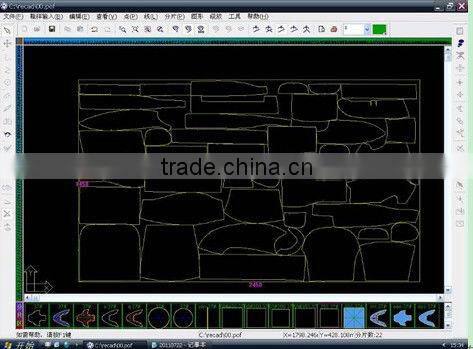

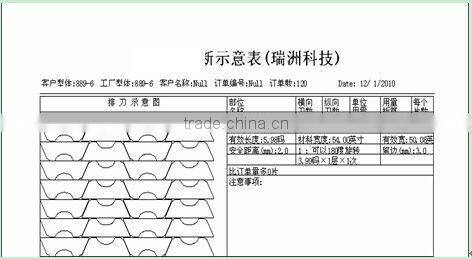

Compact nesting ,at the same time,export dates to count the material,It is convenient to purchasing department to reasonably purchase material.

















CROSS-OVER LASER LIGHT:It's easy for you to find the cutting initial point





WHAT ARE THE FUNCTIONS



1.Time Savings:





Hour of work with our cutting system can replace between 4 and 6 hours of hand-cutting. In addition, they are all digitally organized. Cutting, marking and creasing are accomplished in minutes, not hours and days by hand!



 2. Material Savings:





Companies report a material savings of 5-10%. You can nest patterns on your computer with a bird's eye view of all the patterns and experiment with different arrangements until you find the tightest nesting fit. Nesting can also be done automatically for even more time savings.



3.Accuracy:







Improved accuracy begins with the ability to create perfect patterns. Patterns are then cut with a precision of half a millimeter. What will be the result? Sewers are provided with pieces that fit. They can produce a higher quality finished product in much less time.



4.Inventory Reduction:





Our cutting system allows you to minimize cut inventory levels. Single or low ply cutters can quickly cut just what is needed for that day's production. This translates into a quick response time and minimum cut inventory.



5.Employee Satisfaction:





Cutters will enjoy a cleaner, safer work environment compared with laser cutting machine.





TECHNICAL PARAMETER



Mode	RZCRT-1410C	RZCRT-1813C	RZCRT-2516C
Cutting area	1400mm*1000mm	1800*1300mm	2500*1600mm
Working Character	The cutting machine is running at the same time with the computer operation,fast finish data transfer,and it can be used continuously.
Cutting Speed	70-120cm/s
Cutting thickness	0.5-10mm
Cutting materials	Corrugated paper, Plastic, Rubber board, Greyboard Paper, Complex Material, Underlay ,White board paper
Knife	Rotate blade head, Vibration blade head, Die cutter
Applicable pen type	Common signing pen, Oil pen, ball-point pen, Silver pen
Measure to Fix Paper	Vacuum Adsorption
Mechanical resolution	0.07mm
Software resolution	0.025mm   0.01mm   0.1mm  optional
Interface of transmission	Standard parellel and serial interface
Buffer Capability	Once fast transfer
Command	HP-GL and GP-GL compatible mode
Didital control Panel	Liquid crystal display and touching button
Transmission materials	Straight line guide track / Synchronous belt / Imported synchronous belt
Motor	Servo motor
Shaking Blade Head	Shaking blade head motor 20000 rotate/min
Machine working voltage	AC 220∨±10%,50HZ
Air pump working voltage	AC 380∨±10%,50HZ
