Specifications
Aircraft Cargo loaderLift capacity Max. 7000kg
Drive speed 1.7km/h aa 14km/h
Turning Radius 10m

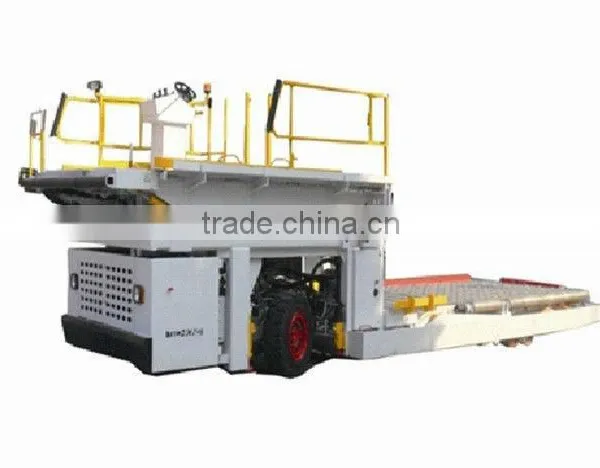

Aircraft Cargo loader
Camel Aerotech newly developed L700 cargo loader for pursing our mission – build robust machines at affordable price. Camel L700 literally provides reliable and durable container and pallet loading/unloading services on almost all mainstream aircrafts for civil aviation and military applications. Since the beginning of product development, we determine to build the machine safe, reliable, highly productive, easy to operate, and low purchasing and maintenance cost. Camel L700 features finite element analysis and stress gauge test optimized scissors lift that minimizes stress concentrations and provides low weight with long service life. Multiple interlocks mechanism and emergency stop systems prevent the potential damage to aircraft and personnel even the vehicle is malfunctioned at the worst scenario. Quick, easy to read and simple to operate, the ergonomically-designed controls and gauges on the cargo loader allow the operator to concentrate on production. Abundant optional configuration allows the machine fit to a wide variety of application to justify your investment. Optional fleet management system offers integrated inter-vehicles communication and data transmission, and server-client communication between vehicles and central control station. The application will report current equipment parameters, predict services needed, alert potential and immediate issues.
Camel L700 Specification
Operating Performance
Lift capacity Max. 7000kg
Drive speed 1.7km/h – 14km/h
Turning Radius 10m
Lift speed –Rear platform 13.2m/min
Lift speed – Bridge 6.6m/min
Convey speed 18m/min
Dimensions
Overall dimension 9660mm(L)×3850(W)×3020(H)
Dimension – Rear platform 5080(L) ×2540(W)
Dimension – Bridge 4080(L) ×3450(W) Ground clearance 90mm Wheelbase 4445/405mm
Weight Gross vehicle weight 18500kg
Standard Equipment
Engine Deutz TCD2012L04 95KW
Alternator 28V 80A
Steering Load sensing hydraulic control
Hydrostatic drive propulsion
Solid rubber tire
Hydraulic stabilizer
Electric emergency hydraulic pump
24V DC electrical system
Aluminum deck plate
Optional Equipment
Wide version with 3250mm platform width
Height Version with 5600 bridge height
Universal version with 3250 platform plus 5600 bridge height
Remote control
Fleet manager
Extreme Weather Packages
