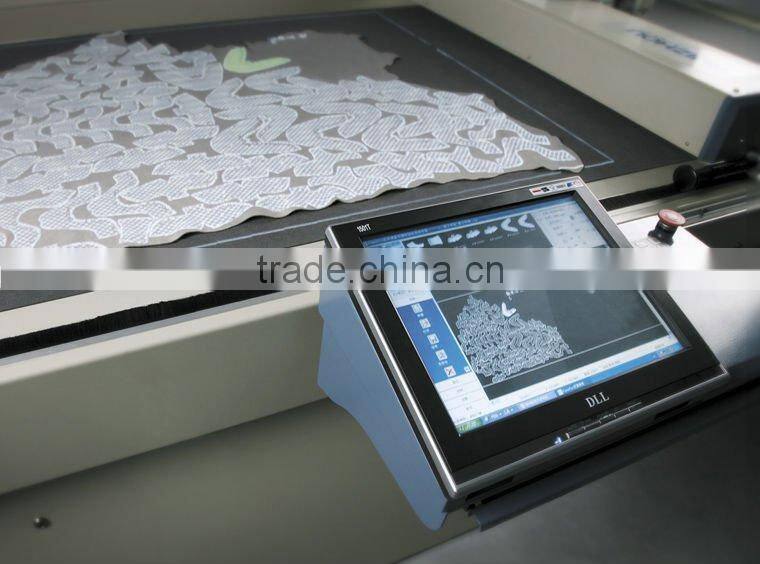

Help CenterDigital Control Vibrating Blade Leather Cutting Machinery
Related Products
-
Digital Shoe and Bags Pattern Cutting MachineNegotiableMOQ: 1 Set -
Digital Shoe Pattern Cutting MachineNegotiableMOQ: 1 Set
-
Flatbed Suitcase Paper Sample Cutting PlotterNegotiableMOQ: 1 Set
-
Suitcase Pattern Cutting SolutionNegotiableMOQ: 1 Set
-
Digital Control Shoe Pattern Cutting MachineNegotiableMOQ: 1 Set
Specifications
Avaliable for leather cutting such as shoe pattern,chair,bags ,suitcases ect. accurate and high efficiency.
l Saves money and time whilst improving quality
u Eliminates the cost and time you spend making pattern boards, dies and knives, by cutting your samples and fit trials directly.
u The skills needed when you are hand cutting upper and lining sample parts from leather are no longer required
u Consistent accuracy even with difficult materials, improving the quality of your footwear.
l Cut developed pattern pieces immediately.
u Reduces your lead times for your chosen samples giving you that 'quick response' your customer's demand.
l Flexible
u You can import parts from Ruizhou ReCAD system, other third party 2D CAD systems via DXF format, or digitize parts directly using digitizer or scanner.
u You can cut a wide range of leather and synthetic materials
u You can do complex pattern cutting or decorative punching automatically in the cutting process.
l Easy to use
u Prospector cutting systems incorporate the MindCUT software which is specifically designed for projection cutting systems. MindCut has an easy to learn user interface and functionality to allow you to nest pieces quickly and efficiently, thus increasing your output and reducing your throughput time.
WHAT ARE THE FEATURES |
l Hardware Configuration:
u A projection cutting system based on the proven Ruizhou cutting table, with its established multifunctional tool head, which includes an Oscillating knife, stitch-marking pen and double-punch tool.
u Vacuum system with adjustable zone control. Ensures the material is held securely by concentrating the vacuum where the parts have been nested.
l Control Software
u
TECHNOLOGICAL SPECIFICATIONS |
Model |
RZCUT-1410 |
RZCUT-2510 |
|
Cutting Area |
1400*1000mm |
2500*1000mm |
|
Cutting Material |
Natural Leather, Artificial Leather, Synthetic Materials, Cardboard |
||
Working Performance |
Cutting Speed: 1-1000mm/s Material Clearance: ≥1mm Cutting thickness: 0.5-6mm Acceleration: 0.05m/s2 |
||
Transmission Interface |
Standard Serial Interface, Parallel Port |
||
Command System |
Language of HP-GL and GP-GL |
||
Power Consumption |
Host |
AC220V±10%,50HZ |
|
Vacuum Air-pump |
5.5KW,AC380V±10%,50HZ |
9KW,AC380V±10%,50HZ |
|
Air compressor |
1.5KW,AC220V±10%,50HZ |
||
Hold-down Method |
Vacuum Suction |
||
Control System |
Ruizhou Digital Leather Cutting System |
||
Projector |
Single |
Double |
|
Tool Head |
The cutting module, the dual Punching module and pen module, controlled by Servo Motor |
||
Cutting Tool |
Blade: rotating blade, vibration blade (optional); Punch tool: diameter 1-5 mm; Pen: Oil pen, Ball point pen (optional) |
||
Vacuum Plate |
Vacuum based on Cells |
||
