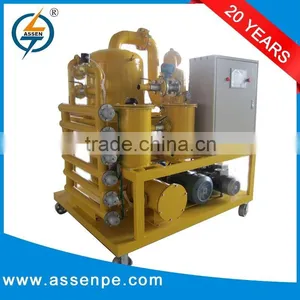

New generation ultra vacuum transformer oil purifier,oil purifier system plant
In order to achieve optimal dielectric strength and insulating performance inside of transformers and circuit breakers, dielectric oils must be kept absolutely clean and dry. Our ZYD vacuum transformer oil purifier machine, designs and builds the most effective, durable, and user-friendly Hi-Vacuum system on the market today. ZYD transformer oil purifier combines with unique and advanced vacuum dewatering, degassing components and three grades filtering system for rapidly and effectively separating water, gas, particles from oil.Special engineered design features maximize the water extraction rates of our systems, and top-quality components and workmanship ensure years of maintenance-free operation and performance.
Performance:
In a single pass through the purifier at a full flow rate:
Water Removal: From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
1. Two pumps: Vacuum pump and booster pump
2. Three-stage filter system
3. Z-shape Heater to make the heating uniformity
4. Installing oil-level floating ball and double-infrared liquid level automatic controller to control the oil level
5. Foam sensor to avoid oil leaking
6. Temperature Controller to protect the machine
7. Suitable oil filtration machine for high voltage transformer
8. Large filtration area, high capacity of holding impurities
9. Two vacuum separator to increase separating size and time and ensure the drying degree and improve dielectric strength which is higher than 75 KV.
10. Doing online oil purification of substations over 110 KV.
11. Independent function of vacuum oil filling and drying.
12. Duplex stereo flash evaporation technology
13. Equipped with pressure protective system and interlocked protective system to connect oil pump, heater and liquid level controller. If there has any fault, this oil filter will be power off automatically.
14. Saving energy and time
Transformer oil purifier's Technical Data:
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
Working vacuum |
MPa |
0.08 ~ 0.099 |
|||||||
Working Pressure |
MPa |
≤0.3 |
|||||||
Breakdown Voltage |
KV |
≥75 |
|||||||
Water Content |
PPM |
≤3 |
|||||||
Gas Content |
% |
≤0.01 |
|||||||
Impurity Size |
μ |
≤5 |
|||||||
Temperature Range |
°C |
20 ~ 80 |
|||||||
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
Working Noise |
dB(A) |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
Structure Chart:
The oil technical data after treatment:
Item |
Guarantee indexes |
Moisture content |
≤3PPM |
Impurity size |
≤1 micron |
Gas content |
≤0.1% |
Breakdown voltage |
≥75 |
Transformer oil purifier's Advantage:
Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machines working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75 KV. It is very suitable for the large electric & insulation equipments
