RUIZHOU TECHNOLOGY has over 15 years in the development and manufacturing of flatbed cutting machines.
Due to the good quality and fast service, RUIZHOU has takes up about 40% market share in China.

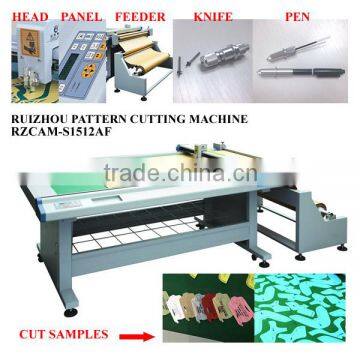

RZCAM-S1512AF is the popular apparel machinery for cutting garment samples on roll paper materials. It can finish interactive cutting (full-cut, kiss-cut, dotted-line-cut), marking and automatic material feeding in single workflow.
Vertical Plotter VS RUIZHOU Flatbed Plotter
1). Higher accuracy: General machine accuracy can reach up to 0.3mm
2). More processing materials: Except for roll paper and vinyl materials, RUIZHOU cutter can also cut cardboard sheet, plastic sheet, film, soft magnetic materials etc. up to 1.5mm thickness.
3). Better cutting feature: RUIZHOU cutting knife can conduct full cut, kiss cut and dotted-line cut interactively.
Technical Specification
Available Model |
RZCAM-S1209AF |
RZCAM-S1509FA |
RZCAM-S1512AF |
Working Area |
1200*900mm |
1500*900mm |
1500*1200mm |

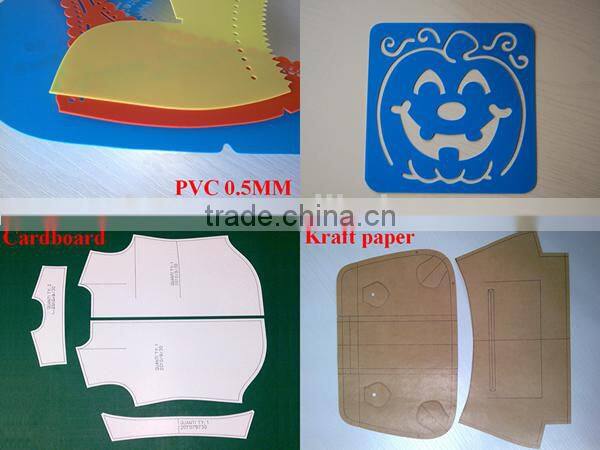

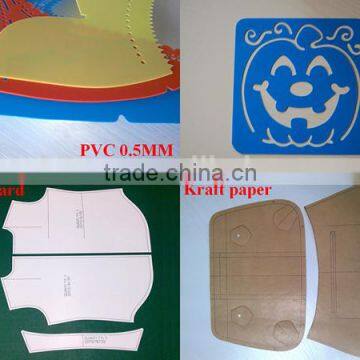

Cutting Materials |
Paper, Cardboard, Plastic board, Rubber board, Fiber sheet |
||
Cutting Speed |
Max. 1200mm/s |
||
Cutting Thickness |
0.3-1.5mm |
||
Accuracy |
Less than 0.3mm |
||
Mat. hold-down method |
Vacuum Suction |
||
Motor |
Servo Motor |
||
Software Resolution |
0.025mm, 0.01mm, 0.1mm |
||
Interface |
Standard parallel port, serial port, net port |
||
Command System |
HP-GL and GP-GL compatible mode |
||
Power Consumption |
Machine: 200W AC 220±10%,50Hz |
||
Vacuum Pump: 1100W AC 220±10%,50Hz | |||
Feeding Mode |

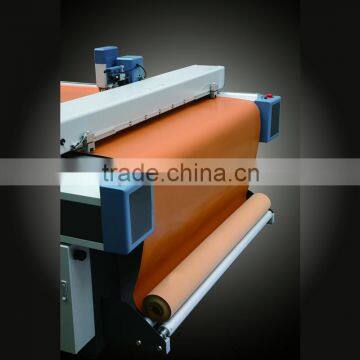

Automatic feeding |
||
Compatibility
Ruizhou garment paper cutting plotter is able to connect with many frequently-used CAD software such as:
* AutoCAD
* Coreldraw
* Illustrator
* RECAD
* Optitex
Acceptable file format includes DXF, PLT, HPGL etc.
Guarantee Period:
* One year warranty against delivery
Spare Parts:
* All spare parts are available whenever needed.
Training:
* We provide one free operation training for our products in our office.
On the Spot Service:
* On the spot can be considered and arranged.
General Timeliness:
* Respond within 24 hours.
* Guangdong Ruizhou Technology Co., Ltd is a high-tech enterprise found in 2004. We specialize in the development and manufacturer of CNC knife cutting equipments for flexible material applying industries. In the 4,500 sq.m. factory, there are 4 manufacturing sections, 2 installation sections and 1 testing section.
* The Creation for top products and leading service enable us to become a device supplier and provider of technology service for 5000 famous enterprises both at home and abroad.
