Ruizhou Large Format Classic Leather Furniture Cutting Machine

Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-1
Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-2

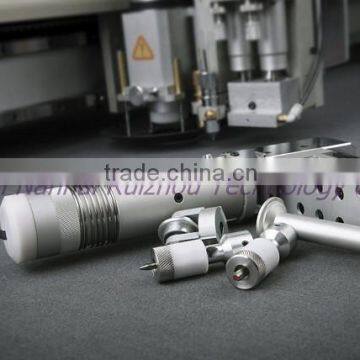

Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-3

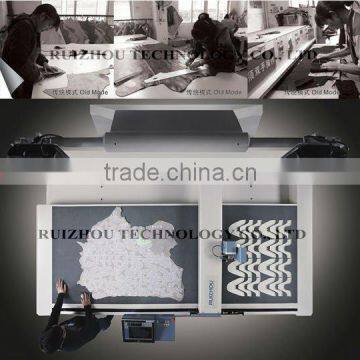

Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-4

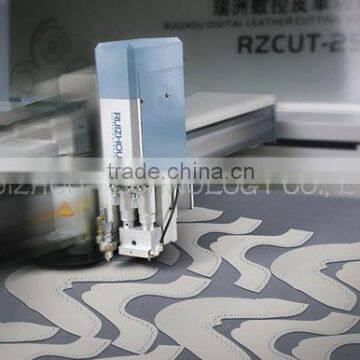

Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-5

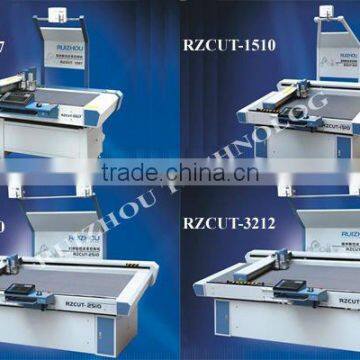

Ruizhou Large Format Classic Leather Furniture Cutting Machine photo-6
US$ 68,000 - 120,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
RUIZHOU
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name RUIZHOU
Model Number RZCUT-3625
Voltage 220V/380V
Power(W) 2700w
Dimension(L*W*H) 4860*3200*1260MM
Weight 2000KGS
Certification CE;ISO9001:2008
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



RUIZHOU TECHNOLOGY has over 15 years in the development and manufacturing of flatbed cutting machines. Due to the good quality and fast service, RUIZHOU machines have taken up about 40% market share in China.



Product Description



RZCUT-3625 is the largest NEW flatbed model of RUIZHOU CNC leather cutting machine at present. Its big size is very suitable for producing classic leather furniture on large cow leather (around 90 sq.ft).





MAIN FEATURES:



1. TIME SAVING: Cutting speed of Ruizhou leather cutter is 3 times faster than manual cutting by experienced worker.



2. MATERIAL SAVING: Ruizhou CNC knife cutter can increase at least 3% utilization of your leather.



3. HIGH ACCURACY: Computerized control all through production, this dieless cutter can rule out possible waste caused by worker.



4. LABOR SAVING: One worker can usually run two leather cutting machines at the same time, finishing the same manual cutting production by more than 10 workers.





TECHNICAL SPECIFICATION:



Effective Work Size

3600*2500mm

Cutting Speed

Maximum straight line cutting speeding up to 1200mm/s

Cutting Thickness

Max. 6mm

Processing Material

Genuine leather, synthetic leather, PVC leather, cardboard, carbon fiber, aramid fiber etc.

Hold Method

Vacuum absorption

Machine Language

HP-GL / GP-GL

Interface

Ethernet port

Accuracy

Less than 0.1mm

Available Tools

Vibration knife, pen and holes punching

Vibration Knife

Electronic, driven by Swiss high frequency motor (18000rotate/min)

Cutting Features

Possible to finish full-cut, kiss-cut and dotted-line cut interactively

Vacuum Power

9 KW*3, 3-Phase ,380V-50Hz/220V-60Hz





CUSTOMER FACTORY:







Compatibility



Ruizhou garment paper cutting plotter is able to connect with many frequently-used CAD software such as:



* AutoCAD

* Coreldraw

* Illustrator

* RECAD

* Optitex



Acceptable file format includes DXF, PLT, HPGL etc.



Our Services



Guarantee Period:

*  One year warranty against delivery



Spare Parts:

*  All spare parts are available whenever needed.



Training:

*  We provide one free operation training for our products in our office.



On the Spot Service:

*  On the spot can be considered and arranged.



General Timeliness:

*  Respond within 24 hours.

Company Information



* Guangdong Ruizhou Technology Co., Ltd is a high-tech enterprise found in 2004. We specialize in the development and manufacturer of CNC knife cutting equipments for flexible material applying industries. In the 4,500 sq.m. factory, there are 4 manufacturing sections, 2 installation sections and 1 testing section.



* The Creation for top products and leading service enable us to become a device supplier and provider of technology service for 5000 famous enterprises both at home and abroad.
