Electric Pain Therapy Machine EA-F20 With CE

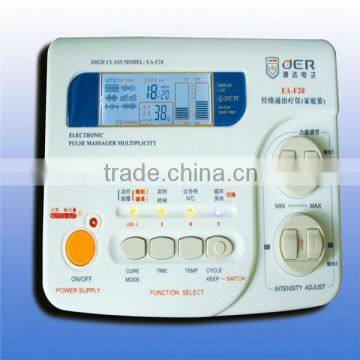

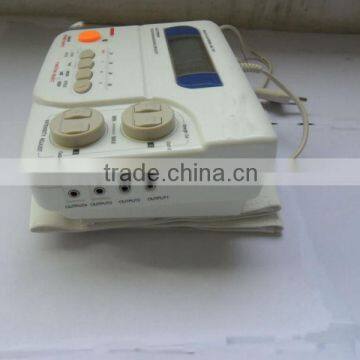

Electric Pain Therapy Machine EA-F20 With CE photo-1
Electric Pain Therapy Machine EA-F20 With CE photo-2
Electric Pain Therapy Machine EA-F20 With CE photo-3
Electric Pain Therapy Machine EA-F20 With CE photo-4
Electric Pain Therapy Machine EA-F20 With CE photo-5
Electric Pain Therapy Machine EA-F20 With CE photo-6
Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JER Electronic
Model Number:
EA-F20
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name JER Electronic
Model Number EA-F20
Electric pain therapy machine EA-F20 with CE



Product Description

 We are manufacturer and have our own molding department,we manufacture all components with best quality and unique feature.

We can do molding and change control panel,function,output quantity,shape to meet exactly customer’s requirement.



Our brand and health concept is deeply absorbed among people there



with ISO 13485,ISO 9002,CE certification



Welcome your inquires,product must stand your trial.





  • Home medical equipment with backlight display lights,you can see the screen clearly day or night.
  • No any side-effects to ease pain by physical therapy instead of medication.

Features:

  • During the treatment of Applied Thermotherapeutic Belt, the temperature can be maintained within 35~60 oC meanwhile the emitted far-infrared radiation wavelength is 810.65μm, which is similar to the radiation wavelength of human surface (9.6μm) and is consequently easily absorbed by human body.
  • 4 output devices: 2 for therapy,2 for far-infrared heating treatment.
  • 6-time settings and the treatment of paste electrode and far-infrared belt treatment can be treated at the same time.
  • 4 different treatment formular are available including thearpy,massage,beuty and sleep to make you feel more comfortable during using it.



Special Functions:

  • It helps hypnosis and provides adjuvant treatment for habitual insomnia; and it provides abirritation and adjuvant treatment for non-pathological headache
  • Relieves the pain in shoulder,back,lambar, foot and other parts of your body
  • The heating   function can improve the local blood circulation, accelerate the exudate absorption and detumescence, smooth muscle tone
  • Exercise the muscles, improve fat burn away
  • Use for massage,health care  and relieve pain and treat some common disease like high blood pressure, rheumatis,menstruation and impotence diorder etc

 Specifications

1

Power supply and voltage

a.c.220V±22V,50Hz±1Hz net power supply direct supply

2

Power

≤28VA

3

Frequency range

0.5Hz-1000Hz 1000hz-5000hz

4

Pulse duration

0.07ms-1.2ms

5

Single electrode max output energy

<300mj

6

Single electrode output effective voltage

<25V

7

Output pulse feature curve

B mode linear continually adjustable V out min<V out max ×2% (V)

8

Far-Infrared thermotherapeutic temperature

Within 35-60 centidegree

9

Time setting

Six grades for 5,10,15,20,25,30min

10

Dimensions(main unit)

195mm×155mm×75mm

11

Weight

1.5kg

12

Electrode pad size

82mm×43mm(40mm×40mm,40mm×80mm)

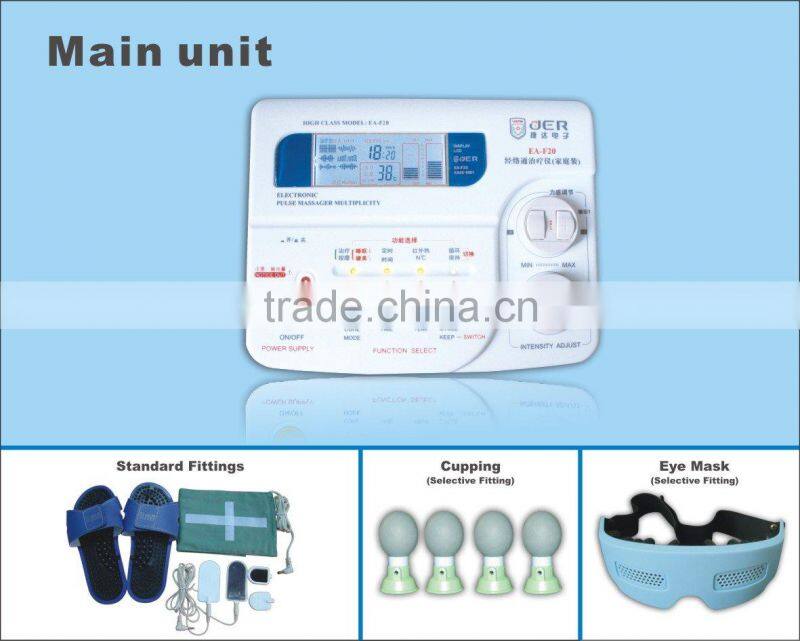

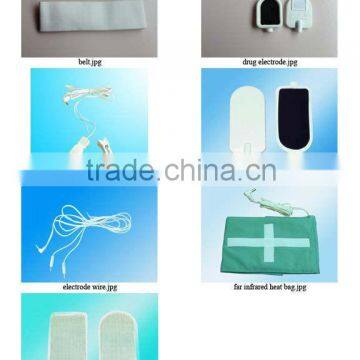

Components:

  • 1×main body
  • 2×electrode pads
  • 2×electrode cables
  • 2×medicine introducing electrodes
  • 2×far-infrared heat therapeutic belts
  • 1×low frequency pulse feet acupuncture points therapeutic shoes
  • 1×Usage Instruction Index



Packaging & Shipping







Packing details

Inner packing:                    Outer packing:

Size:31.5*22*9cm              Size:65.5*36*45cm

GW.:3.0kg                        GW.: 35kg

12set/ark                          Qty/20' FCL: 400ctn; 3500set



 P.S. Crust and accessories are producted by our company, so the product and accessories can choose environmental, fire-retardant materials. Plastic casing can choose to use ABS engineeting plastics and circuit board(PCB) and electronic components can be selected through ROSH certification natural lead material. In addition,we use environmental silica material to product accessories
