EA-737D Electrical Acupoints Stimulator Machine for Family Use,CE,ISO13485,ISO 9001

Specifications

EA-737D electronic stimulator
1.3 channels, 2 for therapy,1 for infrared
2.ISO9001,ISO13485,CE
3.Manufacturer
4.3 people use

EA-737D electronic stimulator



Our Jer EA-737D gets most welcome in PK ,then African and South-eastern Asia,esp in West and North African(Ivory coast,Ghana ,Nigeria,Egypt).



with ISO 13485,ISO 9002,CE certification



Welcome your inquires,product must stand your trial.



Features:

1) High-tech design of digital circuit chaging into analog circuit makes the stable product performance.

2) No any side-effects to ease pain by physical therapy instead of medication.

3) Two programs and six grades output intensity for your choice.

4) During the treatment of Applied Thermotherapeutic Belt, the temperature can be maintained within 35~60°C meanwhile the emitted far-infrared radiation wavelength is 8~10.65μm, which is similar to the radiation wavelength of human surface (9.6μm) and is consequently easily absorbed by human body.

5) It is more convient and accurate by using rotary buttons.

6) Family,office desktops,massage intensity is large enough so that you have a real feeling of massage for you.

 Special Functions

1) Health care treatment and abirritation for authrosis for authrosis rheumatalgia,  cervical vertebral pain, scapulohumeral periarthritis, lumborcrural pain and extremity numbness etc.

2) Effect in activating merdians and colaterals, releavinb muscle pains and promoting blood circulation, the product boasts of perfect effect to cure stiff shoulder, waist pain, fatigue and nerve pain.

3) Far-Infrared thermotherapy: It is applicable for adjuvant treatment amd health care and physical therapy for lumbocrural pain and general upset stomache etc.

4) It can be applied to various chronic disease like high blood pressure, rheumatis arthritis of the shoulder, bronchitis, stomachache, toothache, neuralgia abnormal, menstruation and impotence diorder etc.

Specifictions

No.	Model Specification	Models EA-737D
1	Power supply and voltage	a.c.220V±22V,50Hz±1Hz net power supply direct suply
2	Power	≤28VA
3	Frequency range	0.5Hz-1000Hz
4	Pulse duration	0.07ms-1.2ms
5	Single electrode max out put energy	<300mj
6	Single electrode output effective voltage	<25V
7	Output pulse feature curve	B mode linear continually adjustable V out min<Vout max ×2%(V)
8	Far-Infrared thermotherapeutic temperature	Within 35°C-60°C
9	Time Setting	Two grades for 15,25min
10	Dimensions(main unit)	178mm×158mm×70mm
11	Weight	1.5kg
12	Electrode pad size	82mm×43mm(40mm×40mm,40mm×80mm)

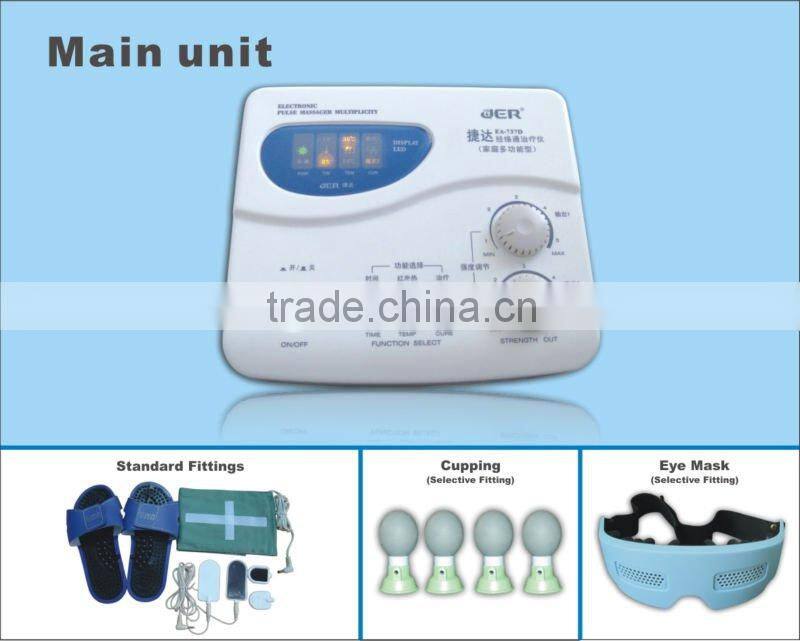

Components:

1) 1×Main unit

2) 1×far-infrared thermotherapeutic belt

3) 1×medicine introducing electrodes

4) 2×electrode cable

5) 1×sticky piece(sticky)

6) 1×electrode pad

7) 1×low frequency pulse feet acupuncture points therapeutic shoes

8) 1×Usage Instruction Index
