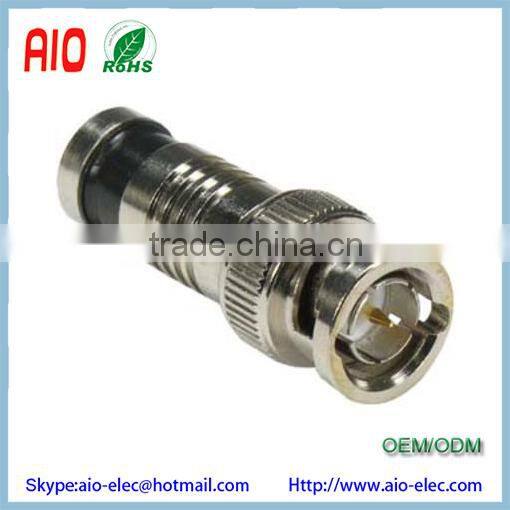

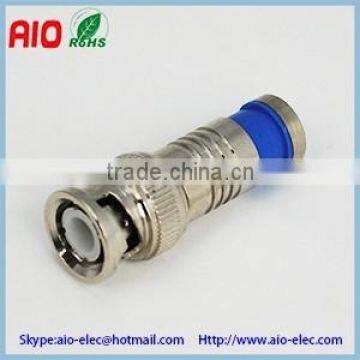

Help CenterCompression BNC Male Plug Connector for RG59 Coaxial Cable
Related Products
-
Straight Brass With Nickel Plating Coaxial Adapter BNC Male to RCA Female BNC to RCAUS$ 0.2 - 0.6MOQ: 1 Piece -
Straight Brass With Nickel Plating Coaxial Adapter BNC Male to RCA Male BNC to RCAUS$ 0.2 - 0.6MOQ: 1 Piece
-
Straight Brass Coaxial Adapter BNC Female to RCA Male BNC to RCAUS$ 0.2 - 0.6MOQ: 1 Piece
-
Straight Brass With Nickel Plating Coaxial Adapter BNC Female to RCA Female BNC to RCAUS$ 0.2 - 0.6MOQ: 1 Piece
-
1 Port Passive Twisted Pair Video Balun Transceiver for CCTV Surveillance CamerasUS$ 0.5 - 2MOQ: 1 Piece
These connectors' design makes it easy visually to ensure that the cable dielectric is flush with the post face prior to compression. Due to this concept, it presents a very low activation force in a high performance compression connector.
After compression the connector post has a conventional recessed position for correct install every time. 360 of contact to the cable, providing excellent RF shielding integrity and a complete seal to the cable jacket that locks out moisture. Incorporates a free spinning nut making installation faster and more reliable.
The one-piece design eliminates any loose parts. Connect rapidly consistently without risking misalignment of multiple parts. All Brass Connector. 360 Swedge Compression. Fully Sealed - Watertight - Without the Need for Silicone Grease.

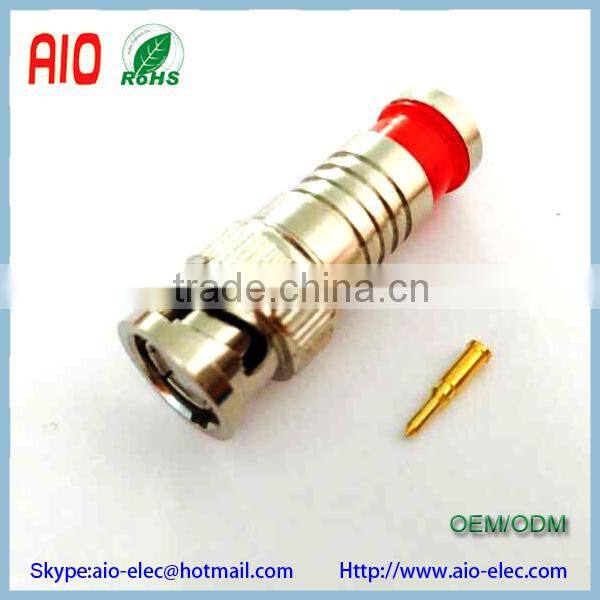

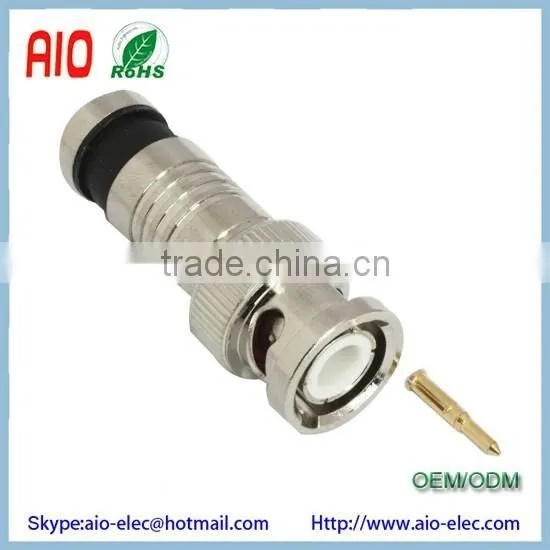

Nickel-plated, brass construction for superior corrosion resistance. Approved for indoor or outdoor use. Gold-plated conductor pin for higher signal quality. Approved for security cameras, home theaters, and HDTV commercial or home equipment.
Specifications:
BNC compression connector for RG6
Temperature Range: -55~+155 oC
Frequency Range: DC~7.5GHz
Insulation resistance: ≥ 10000 M Ω
Average power 3kw max
Center conductor retention force ≥ 6N
