Female CCTV BNC Connector for Coaxial Cable , Bayonet Nut Connector
1.Gender:female
2.Application:RF
3.Insulation Resistance: ≥5000MΩ
4.Character Impedance:50Ω
5.Frequency Range:0~3GHZ
6.Contact Resistance:center conductor≤1.5mΩ; outer conductor≤1mΩ
7.Disengage Force:≥0.6N
8.Supply Type:OEM
Female CCTV BNC Connector for Coaxial Cable , Bayonet Nut Connector
Description:

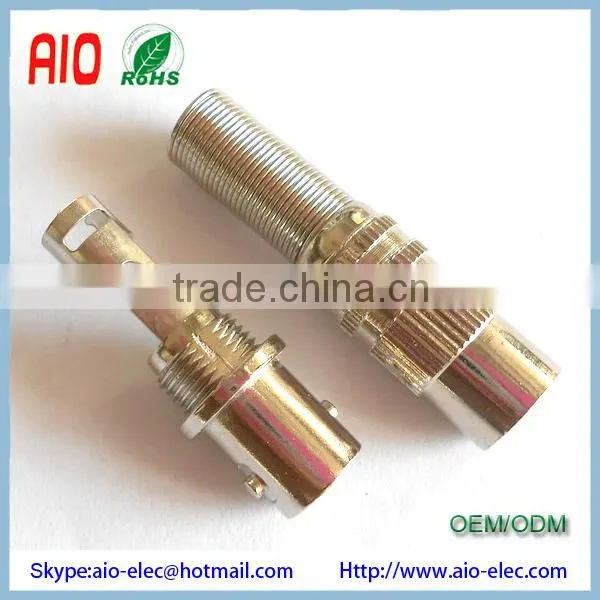

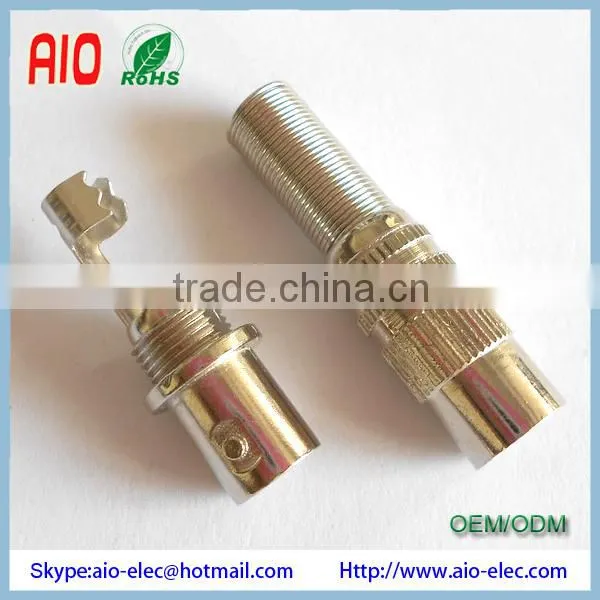

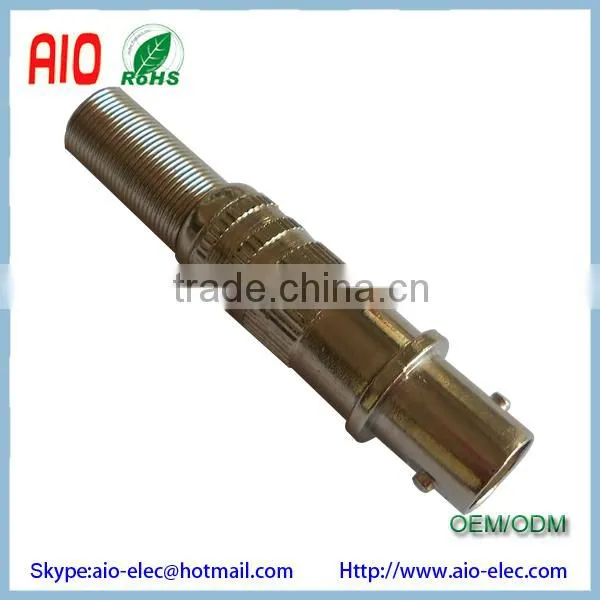

BNC Female Connector with Long Metal Boot
Material:
Body—zinc alloy, nickel plated
Center pin—copper, gold plated
Net Weight: 12g/piece
Features:
Temperature range: - 40~ +155
Insulation resistance: ≥5000MΩ
Character impedance: 50Ω
Frequency range: 0~3GHZ
Disengage force: ≥0.6N
Contact resistance: center conductor≤1.5mΩ; outer conductor≤1mΩ
Durability: ≥ 500
Application:
The BNC connector (Bayonet Nut Connector) is a miniature quick connect/disconnect RF connector used for coaxial cable. It features two bayonet lugs on the female connector; mating is achieved with only a quarter turn of the coupling nut. BNCs are ideally suited for cable termination for miniature-to-subminiature coaxial cable (e.g., RG-58, 59, to RG-179, RG-316).
We often use BNC cable to transmit audio and video signal in monitors and audio equipments in the up-markets.
Q: What does BNC stand for?
A: BNC stands for Bayonet Neill-Concelman. They are named after the bayonet locking mechanism and their inventors.
Q: What are BNC connectors commonly used for?
A: BNC connections are typically used on RF, video and ethernet applications.
Q: How can I tell the difference between a 75 ohm and 50 ohm BNC connector?
A: On a 50 ohm connector the center pin is surrounded by a white dialectric. On a 75 ohm BNC connector is surrounded by air (no dialectric)
Q: Can a 50 ohm and 75 ohm BNC connector be connected together?
A: 50 ohm and 75 ohm BNC connectors will mate with each other. At frequencies under 10 MHz the impedance mismatch will not have any affect. If you are above 10 MHz the chances of signal distortion becomes more significant.
