New generation portable oil test kit
- 200 Set / Sets per Month
- chongqing
- T/T Credit Card
Product Details
Place of Origin: | Chongqing, China | Brand Name: | ASSEN | Model Number: | ST-100 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description

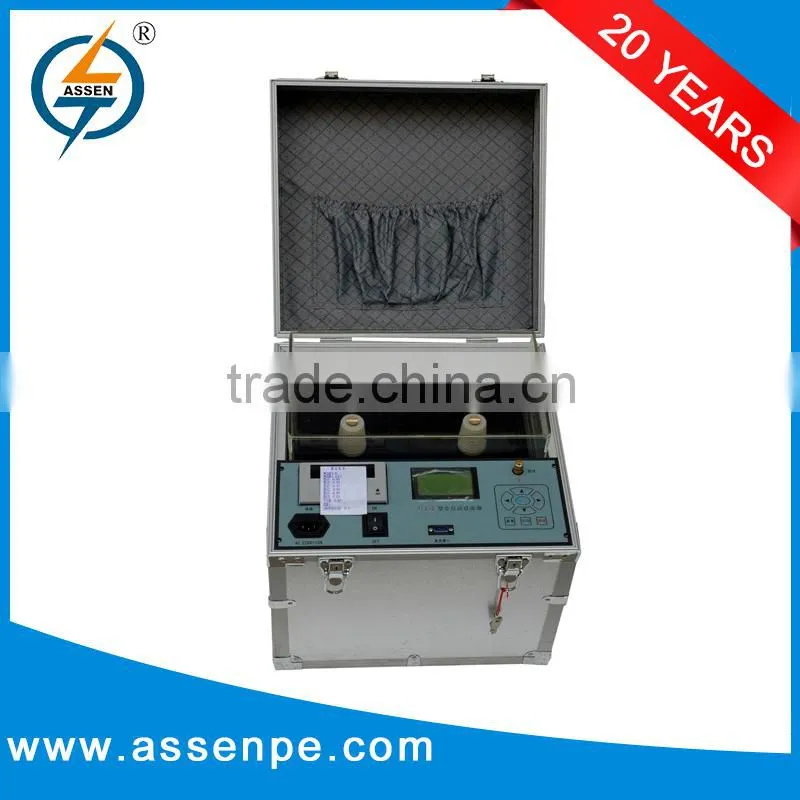

New generation portable oil test kit
ST New generation portable oil test kit meets the requirement of international standard of IEC-156 and GB507-86<< Insulating oil Dielectric Strength Testing method>> and the feedback of our customers. On the basis of ST-80KV, this device adopts Single-Chip computer, firstly setting the parameter, then test the dielectric strength. The whole process is directed by computer, easily for operating.
1. Simple operation, high degree of automation (just press a button)
2. Using the menu management, easy to understand the input parameters
3. Can store 99 groups oil sample test data to facilitate future access to and print, test data can be stored in power off state for 10 years.
4. The system clock in the power off state can continue to run.
5. Through the RS232 port with a software upgrade or with the PC, on-line detection.
6. Anti-interference ability
7. Detection with high precision
8. Small size, light weight, easy operations
Wtih auto test, auto handling, and auto print, and with high accuracy, easy operation and good safety.
The tester is applied to measure dielectric strength of insulation oil, test item being the instant voltage value of oil sample breakdown. The tester is a full auto oil-testing device, of high accuracy and photoelectric type, with a microprocessor served as the core component; The tester has successfully overcome the difficulty where strong electromagnetic field has a severe interference in microprocessor, making electromechanical integration possible.
Portable oil test kit's technical Data:
- 1. Power supply: AC220V ±10%, 50 HZ (Customizable)
- 2. Voltage output: 80KV, 100KV
- 3. Capacity: 1.6KVA, 2.0KVA
- 4. Pressure increase rate: About 2 KVA/S
- 5. Pressure testing speed: 3%
- 6. Break down sensitivity : <2KV
- 7.Wave form distortion :≤3%
- 8.Time of break down: ≤10ms
- 9.Operational environment: Temperature:0°C-40°C, Humidity: the most relative humidity85%
- 10.Storage environment : Temperature:-20°C-60°C, Humidity: the most relative humidity75%.
portable oil test kit Structure Chart:
- Your inquiry related to our products or prices will be replied in 24 hours.
- Well-trained and experienced staffs to answer all your enquires in fluent English.
- Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
- OEM is available for Anern Products.
- Protection of your sales area, ideas of design and all your private information.
Q: What is BDV test for distribution transformer?
A: When you say BDV you might mean the dielectric strength of transformer oil. A new transformer oil should have at lest a dielectric strength of 39 KV. from a British standard.Transformer oils used are normally tested using ASTM D877-82 with the KV strength tester using 1" electrodes spaced 0.1" apart and the test voltage increased at 3,000 volts/min until it breaks down. The average Kv obtained after 8 trials is considered the Oil dielectric strength.Using this test method,dielectric strength at 30 kv and above is considered good. Dielectric strength between 23 to 29Kv is considered usable, but requires filtering. Below 23 kv, the transformer oil should be replaced. Another method ASTM D18747-82 uses the small radius electrodes but spaced only .o4 inches. The test voltage is 500volts/min and increased until breakdown. The dielectric strength is still the average Kv obtained in 8 trials. The dielectric strength of 28-29Kv is considered good. Below 28 kv, the transformer oil is usable but requires filtering. The latter method is considered a better test method.
Chongqing Assen Power Equipment Co.,LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff , professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification system, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Singe Stage Insulating Oil Purifier, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipments operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
