Help Center3T CE Construction Machinery(XD935G) for Sale
Related Products
-
3T 1.7M3 CE Wheel Loader(model XD935G) for SaleNegotiableMOQ: 1 Set -
CE 3T Wheel Loader (model XD935G) for SaleUS$ 1 - 24,000MOQ: 1 Set
-
3T CE New XD935G Loading Machinery for SaleNegotiableMOQ: 1 Set
-
XD935G 3T New CE Wheel Loader for SaleNegotiableMOQ: 1 Set
-
XD935G 1.7CBM 3T CE New Wheel Loader for SaleNegotiableMOQ: 1 Set
Specifications
3T construction machinery1.lifting height:3/3.2/4.5M
2.1.7/1.9/2.2M3 bucket
3.engine:Yc,deutz,cummins
4.joystick,A/C,log
3T 1.7-2.2M3 construction machinery( model XD935G) Specifications
standard installation:

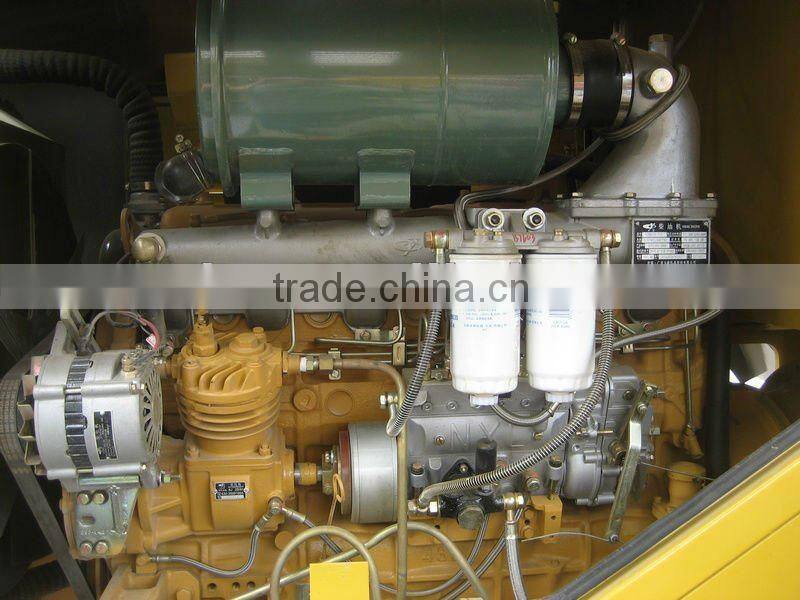

YUCHAI 6108G ENGINE; 428 type SHANTUI Gear Box; 315 type SHANTUI 3-elements, single stage torque converter; Overload protection system; Hydraulic drive; CVT system.
Optional accessories:
Deutz engine, Cummins engine, Pilot control, A/C, Quick hitch, Log clamp, Grass clamp, side-dump bucket, high dump bucket, exhausted air cleaner.
Item | XD935G |
Bucket capacity (m3 ) | 1.7/1.9/2.2 |
Weight (t) | 9.8 |
Rated load (t) | 3.0 |
Gear box | 428 |
Lifting time of the arms (s) | ≤6 |
Hydraulic cycle time (s) | ≤11 |
Traveling speed (km/h) | 0-35 |
Forward gear I | 7-12.5 |
Forward gear II | 21-35 |
Reverse gear I | 0-14 |
Reverse gear II | 25 |
Max. climbing gradient | 30° |
Overall length (mm) | 7140 |
Overall width(mm) | 2400 |
Overall height(mm) | 3120 |
Wheel base (mm) | 2600 |
Wheel tread(mm) | 1800 |
Min. radius(mm) | 5100 |
Max. Breakout force(KN) | 96 |
Max. dumping height(mm) | 2800/3050/ 3260/4500 |
Dumping reach (mm) | 1180 |
Engine model | YC6108G or Cummings |
Rated speed (r/min) | 2200 |
Rated power(kw) | 92 |
Tires type | 17.5/25 |
