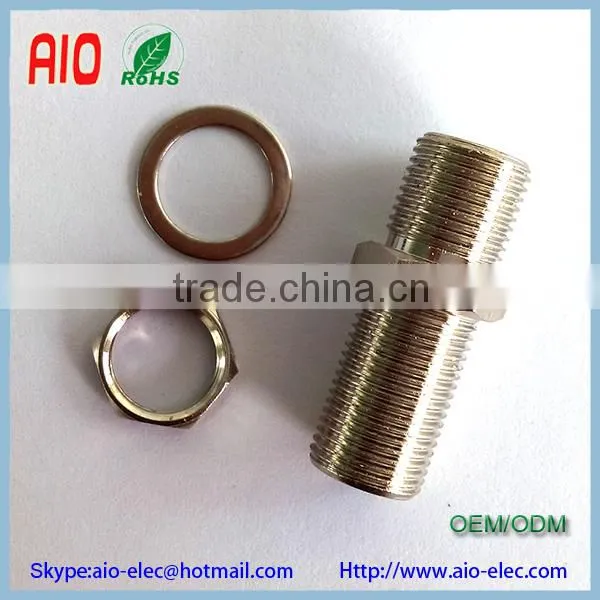

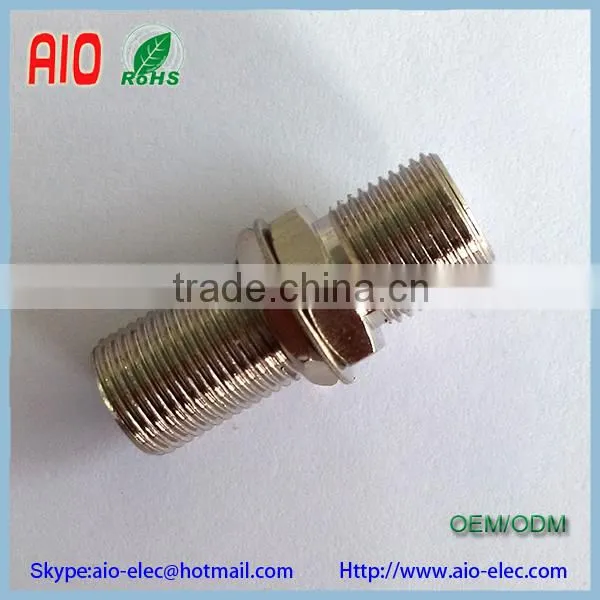

Help Center27cm Brass F Type Socket (female) to F Type Socket (female) Barrel Coupler Adaptor Connector
Related Products
-
HDMI 2 RCA 3 RCA Wall Plate With Back Pigtail Plug For Easy IntallationUS$ 0.39 - 1.99MOQ: 100 Pieces -
HDMI + RJ11 + RJ45 + Coaxial + RCA Wallplate With Back Built-in Flexible Cable For Easy InstallationUS$ 0.39 - 1.99MOQ: 100 Pieces
-
HDMI RGB RCA Connector Female Component Combo Wall PlateUS$ 0.39 - 1.99MOQ: 100 Pieces
-
Female to Female Extension Exteder Coupler USB3.0 Adapter With Panel Mount HolesUS$ 0.7 - 2MOQ: 100 Pieces
-
86mm Dual 2 Way 9.5mm Female Socket Coaxial TV Solderless Wall PlateUS$ 0.8 - 2MOQ: 100 Pieces
Supplied with nut and washer.
The F connector is a coaxial RF connector commonly used for "over the air" terrestrial television, cable television and universally for satellite television and cable modems, usually with RG-6/U cable or, in older installations, with RG-59/U cable. It was invented by Eric E. Winston in the early 1950s while working for Jerrold Electronics on their development of cable television. In the 1970s it became commonplace on VHF television antenna connections, as coaxial cables replaced twin-lead, and later for UHF also.
The F connector is inexpensive, yet has good 75 Ω impedance match up to 1 GHz and has usable bandwidth up to several GHz. One reason for its low cost is that it uses the solid conductor (center wire) of the specified types of coaxial cable as the pin of the male connector. This design is subject to the surface properties of the inner conductor (which must be solid wire) and is not corrosion resistant; hence waterproof versions are needed for outside use (for example, on aerials). Corrosion resistance can be improved by coating all bare copper wires with silicone grease. The male connector body is typically crimped, or sometimes screwed, on to the exposed outer braid. The cable industry standard now is to use compression fittings. Female connectors have a 3/8-32 UNEF thread (9.525mm diameter). Most male connectors have a matching threaded connecting ring, though push-on versions are also available. Push-on F connector ends provide poor shielding against airborne signals (e.g., a nearby TV, Radio, Cell Phone, Cordless Phone, Government radiolocation on 54 - 1002 MHz band transmitters and will interfere with a CATV station).
It is suitable for domestic terrestrial, cable, and satellite TV installations and offers significant improvements over the Belling-Lee connector(IEC 169-2) used on European terrestrial receivers. It requires slightly more care to properly install the male connector to the cable than with Belling-Lee type and attention should always be paid to the quality of the connector and matching with the cable size.
