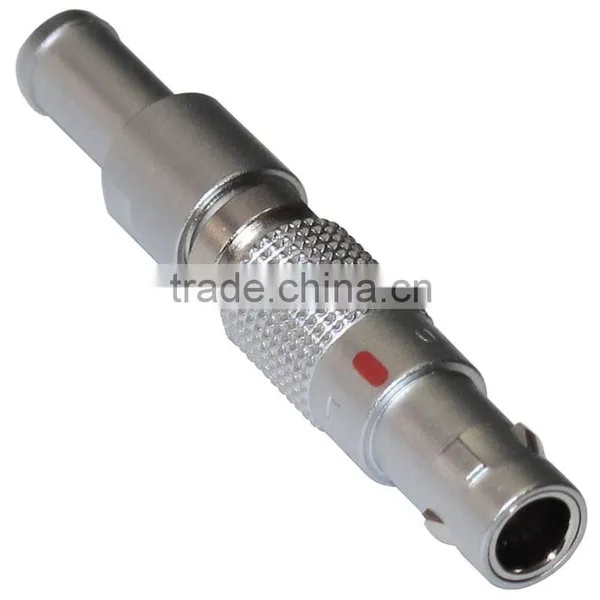

Assembly Push - Pull Male Circular Connectors With Cable Collet
- 10000 Piece / Pieces per Month
- shanghai port or ningbo port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Circular Connectors | Model Number: | Circular Connectors |
Type: | Other, Circular Connectors | Application: | Automotive | Gender: | Male |
Product Description
* Fast and easy to use
* Mechanically keyed: ensures correct polarization and alignment
* IP67 in locked condition
* Cable length customized, PUR/PVC cable jacket
- Mechanical Details:
- Shell Style/Model: FG - straight plug, cable collet and nut for fitting a bend relief
- Keying: 1 key (alpha=0, plug: male contacts, receptacle: female contacts)
- Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
- Cable Fixing: D35 - 2.7 - 3.5 mm
- Variant: Z - nut for fitting a bend relief
- Performance Details:
- Insert Configuration: 304 - 4 Low Voltage
- Insulator: L - PEEK
- Contact Type: Solder
- Max. Matings: 5000
- Diameter:
- Contact: 0.01 in | 0.35 mm
- Bucket: 0.016 in | 0.4 mm
- Max. Solid Conductor: 0.09 mm^2 (AWG 28)
- Max. Stranded Conductor: 0.05 mm^2 (AWG 30)
- R (max): 8.7 mOhm
- Mechanical Details:
AIOPower truly understands the cost, time and quality associated with the installation and integration design. Our customized solutions and one-stop services will help you reach your objective by reducing the installation time of cables and wires by 30% to 80%, BOM and design/field assembly labor costs for numerous application fields as below.
1. SENSOR & INDUSTRIAL AUTOMATION CONTROL
Industrial Automation plays an increasingly important role in the global economy. Not only does automation increase productivity and reduce cost, it also improves the quality and consistency of products being produced. Finecables’ sensors/ actuators in the form of connectors, cable harness assemblies are perfectly suited for industrial equipment and machinery. They offer safety in harsh environmental conditions including corrosion, shock vibration, dust, moisture buildup as well as extremely adverse installation situations. The solutions act as a control system providing reliable connections in the key industrial machinery and factory automation markets.
2. TELECOMMUNICATIONS & NETWORK
Telecommunications & Network take a big role in people’s life and communications. This system is a collection of terminal nodes, links and any intermediate nodes which are connected so as to enable data transmission between the terminals or technical facilities. Finecables offers high-performance and reliable connector solutions for transmission systems, basis stations, data and network servers, routers, monitors etc, like USB/RJ45/DIN connectors/D-sub/UHF.
3. HVAC & REFRIGERATION
Working in the Heating Ventilation Air Conditioning (HVAC) Refrigeration & Facilities industry involves maintaining a safe and accessible workplace. HVAC system design is a sub-discipline of mechanical engineering, based on the principles of thermodynamics, fluid mechanics, and heat transfer. Finecables offers such Temperature sensors as NTC, PT100, PT200, PT1000 sensors for HVAC applications.
4. LED & LIGHTING
The high efficiency and directional nature of LEDs makes them ideal for many industrial uses. LEDs are increasingly common in stage lighting, LED display, street lights, parking garage lighting, and walkway and other outdoor area lighting, refrigerated case lighting and so on. Finecables’ circular connectors (M8/M12 Series) are widely used in LED lighting application fields.
5. RAILWAY TRANSPORTATION SYSTEM
Finecables understands that, in order to effectively operate a safe and efficient rail transport network, there are some challenges have to be addressed, such as information technology coming into the train, with a very high bandwidth requirement, intended to be used in Passenger Information Systems, Video Surveillance applications, as well as internet access to address increasing demand for travelling comfort.
6. MARINE & SHIPS ENGINEERING
Marine & Ships Engineering fields involves boats, yachts, ferries, cruises, radar, navigation GPS, autopilot… Meanwhile, waterproof and anti-corrosion characteristics are required for related devices and equipments, especially connectors. Finecables’ plastic screw/snap-in/quick-lock locking systems not only can solve your worries for waterproof and anti-corrosion performance, but most importantly helps you reduce cost and save dramatically your installation time and labor cost.
7. MEDICAL DEVICES
Finecables provides various connectors and cable/wire harness for medical diagnostic devices. Those products not only comply with signal transmission and high voltage contacts, electrical and mechanics requirements, but also with special demands as to quality and reliability, most of which are used in computer tomography equipment, mobility aids, lifting solutions, healthcare electrical beds, convertible chairs, and wheelchair controller.
8. RENEWABLE ENERGY
Keeping up with renewable energy technology developing, Finecables’ power, signal, or hybrid connectors and cable assemblies are designed to work in any condition and adhere to the strictest international requirements, such as wind power stations, wind turbines, solar power plants, inverters, and gas and hydro power plants – making installation easy, fast and reliable. Highly customized value-added solutions are available for your special requirements.
9. MEASURING & TESTING
In measurement and testing technology, precision is everything. For reliable tests and conclusive results, high quality measuring devices and procedures are needed – along with powerful connections in order to guarantee the precise transfer of measurement data at all times. The requirements for the interfaces between the test piece, measuring device and evaluation unit are enormously high. And this is exactly the reason that well-known manufacturers consistently choose Finecables. Our connectivity products are serving in airport weighing, supermarket weighing, testing monitoring system, etc.
10. PACKAGE CONVEYOR AND LOGISTICS SYSTEM
Today's supply chains demand end to end visibility and real time tracking. Efficient sorting, packaging and logistics are essential when handling large volumes of parcels from the end of the assembly line to the deployment by the end-user. Data capture solutions, fixed and handheld scanners, weighing and barcode reading systems provide accurate parcel information that ensures efficient sorting, package conveyor. Additionally, automation today stretches right up to the top shelf of a high-bay warehouse. The connection solution from Finecables enables high performance, reliability and cost effectiveness. With our wide range of high-quality cable and connectors, combined with qualified service and support, we are the reliable, long-term partner for your applications and plant design in package conveyor logistic system.
1.Regular packaging:Tape &Reel
2. Pack according to customer requirements,such as slide card,blister card and so on.
3. The quotation is F.O.B Shanghai.
1.OEM
2.ODM
3.Offer the sample of the normal products 3-5 pieces,but buyer is responsible for charges.
Changzhou AIOpower New Energy T&S Co.,ltd is a manufacturer of RF/AV Connector with
well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are
extensively used in home appliance,car,surveillance and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing
economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success!
