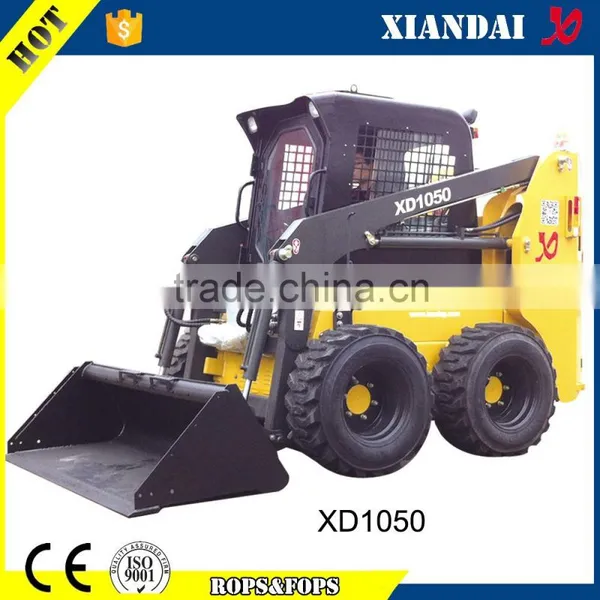

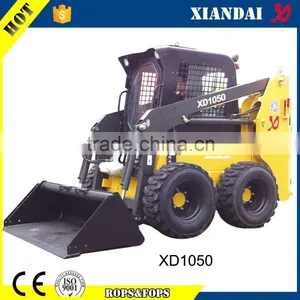

Help CenterXD1050 1050KG SKID STEER LOADER CE China BOBCAT
Related Products
-
XD1000 1000KG 1t SKID STEER LOADER CE China BOBCATUS$ 1 - 2MOQ: 1 Unit -
XD900 900KG SKID STEER LOADER CE China BOBCATUS$ 1 - 2MOQ: 1 Unit
-
XD650 650KG SKID STEER LOADER CE China BOBCATUS$ 1 - 2MOQ: 1 Unit
-
Skid Loader Concrete MixerNegotiableMOQ: 1 Set
-
XD1500T 1500KGS Tracked Skid Steer LoaderUS$ 1 - 2MOQ: 1 Unit
I.Basic Equipment
1.Compact structure,maneuverable movement suitable for narrow space operation

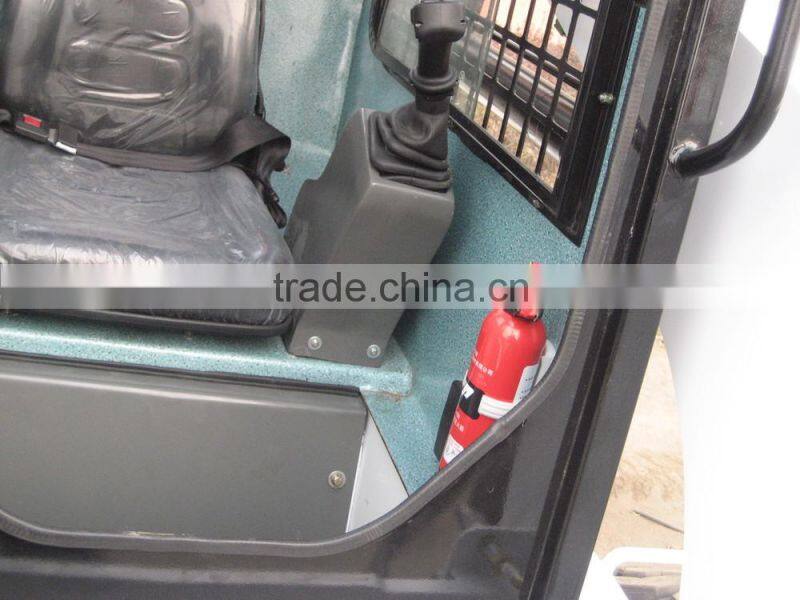

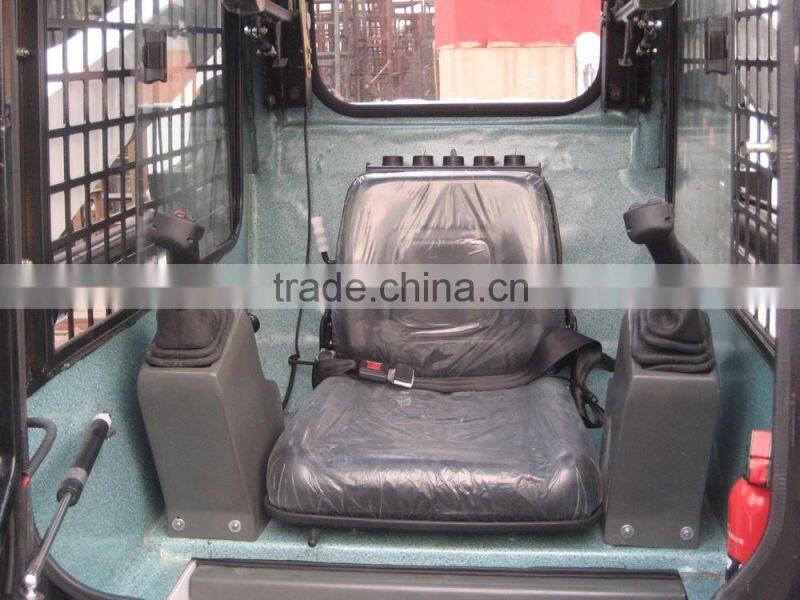

2.Close cabin with joystick control system
3.Extended wheelbase
4.High flow double output
5. Double accelerograph control
6. Auto-leveling system
7. Multi-function with a wide range of attachments
8. Hydraulic brake
II.Specifications
|
XD1050 |
Rated Operating Capacity |
1050 |
Tipping load(Kg) |
2100 |
Bucket Capacity(m3) |
0.5 |
Lifting Force(Kg) |
2730 |
Hydraulic Pump Flow(L/min) |
75/115 |
Engine power(HP) |
75 |
Weight(Kg) |
3500 |
Max. Travel Speed(km/h) |
8/16 |
Grade ability(°) |
20 |
Tyre |
12-16.5 |
Fuel/hyd.oil capacity(L) |
90/90 |
Dimensions
|
XD1050 |
A.Height at Maximum Extension |
4070mm |
B.Hinge Pin Height |
3150mm |
C.Total Height |
2160mm |
D.Length With Bucket |
3580mm |
E.Length Without Bucket |
2880mm |
F.Width With Bucket |
1880mm |
G.Track Width |
1500mm |
H.Wheelbase |
1166mm |
J.Ground Clearance |
205mm |
K.Dump Angle |
40° |
L.Dumping Height |
2450mm |
M.Maximum Reach |
700mm |
Engine |
|
Model |
DEUTZ D226B-4 |
Power/Speed(Hp) |
75/2500rpm |
Type |
Direct-injection,In-Line, Water-Cooling, 4 Cylinders |
Displacement(L) |
3.9L |
III. Optional Configurations:
PERKINS 404D engine(EPA)+US$3000 |
Solid Tires+US$1700 |
Joystick control+US$1700 |
Enclosed operator cab with A/C+US$1515 |
Luxury cabin +US$900 |
Air-conditioning+US$900 |

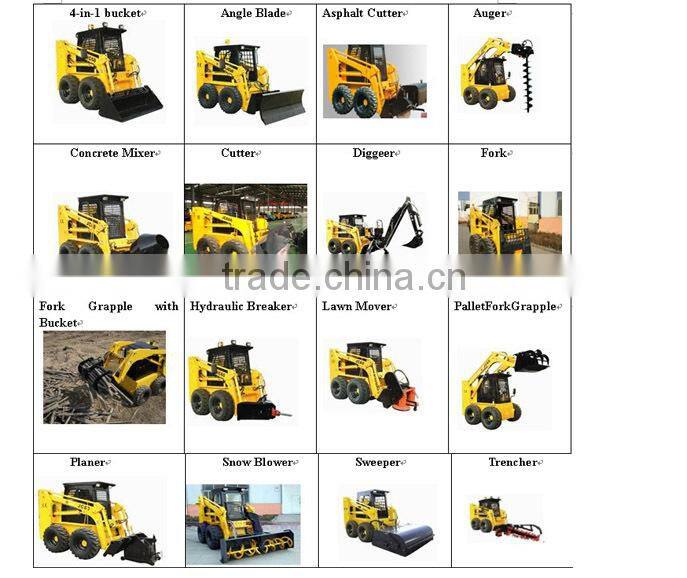

Attachments:
Dozer blade,Snow blade,Pallet fork,4 in 1 bucket,Grabber bucket, Fork grapple, Angle broom,Mixer,
Snow blower, Grass cutter, Rock bucket, Bale handler, Utility fork and More
IV. Payment terms & Delivery time &Guarantee time
1.Payment Terms:By TT. 30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;
2.Delivery Time:within 20 days after receiving deposit;
3.Guarantee Time:one year or 1500 working hours which comes first after the date of B/L;
4.Shipping : 2units one 20GP & 4 units one 40HQ container.
