High Temperature Casting Steel Brick for Steel Casting Furnace

High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-1
High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-2
High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-3
High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-4
High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-5
High Temperature Casting Steel Brick for Steel Casting Furnace thumbnail-6
High Temperature Casting Steel Brick for Steel Casting Furnace photo-1

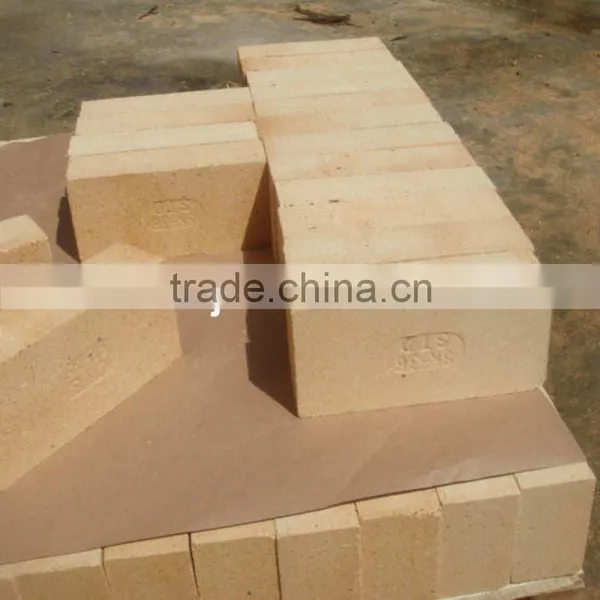

High Temperature Casting Steel Brick for Steel Casting Furnace photo-2

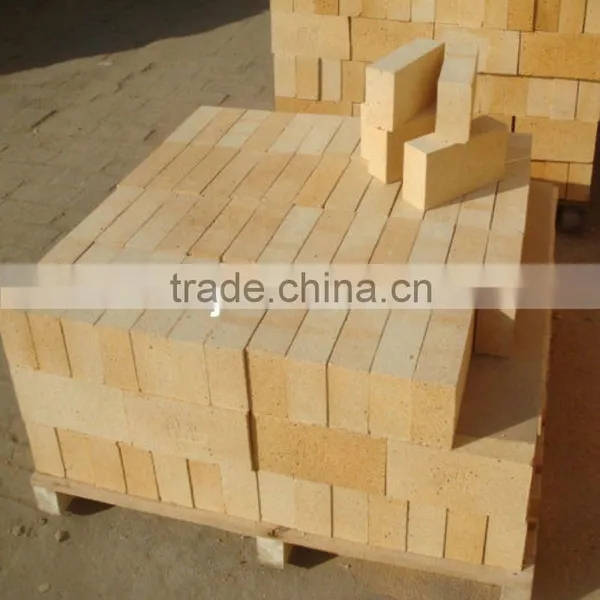

High Temperature Casting Steel Brick for Steel Casting Furnace photo-3

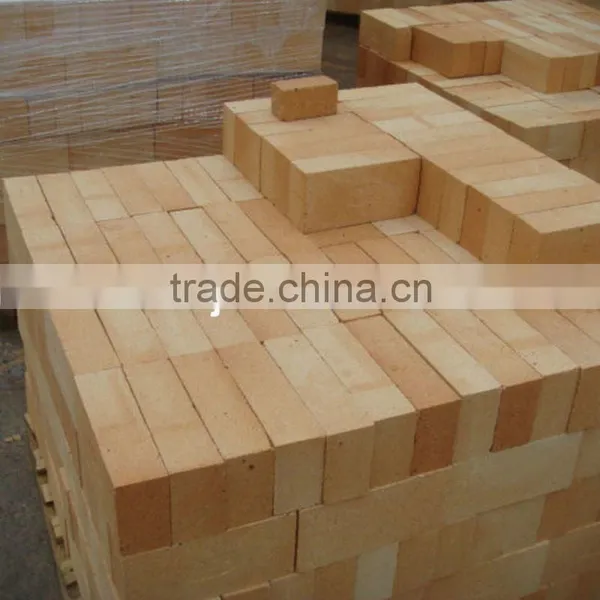

High Temperature Casting Steel Brick for Steel Casting Furnace photo-4

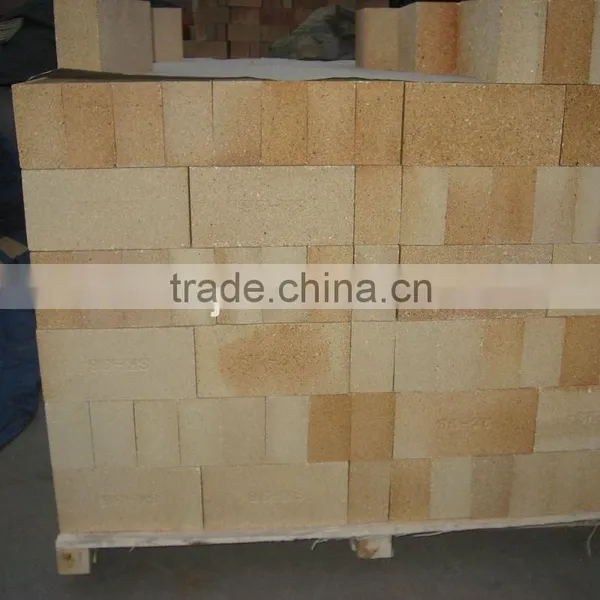

High Temperature Casting Steel Brick for Steel Casting Furnace photo-5

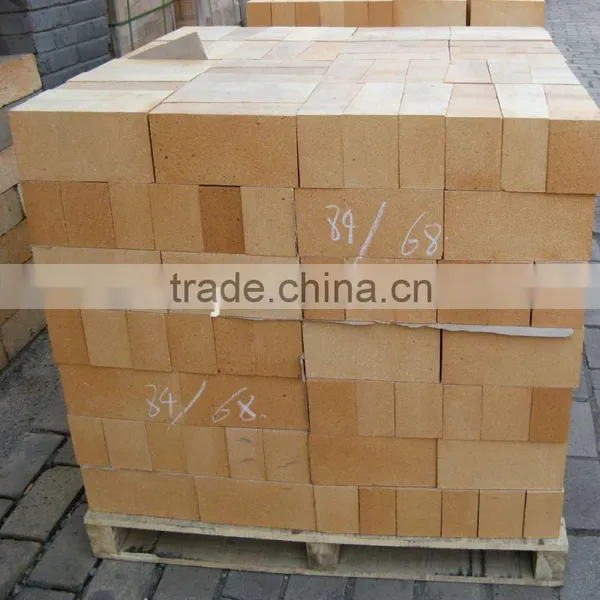

High Temperature Casting Steel Brick for Steel Casting Furnace photo-6
US$ 150 - 400 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
China
Shape:
Block
Material:
Alumina Cement
Contact Supplier Request Quote Chat Now
Dkjl Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ANY CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Shape Block
Material Alumina Cement
SiO2 Content (%) 30
Al2O3 Content (%) 42%-75%
MgO Content (%) 0.1%
CaO Content (%) 0.2%
CrO Content (%) 0.1%
SiC Content (%) 0.1%
Model Number LZ-55 LZ-65 LZ-75
Brand Name DKJL

Steel casting furnace use high alumina brick


Product Description

High Alumina Runner Brick for casting steel Features and advantages:



1. High refractoriness.

2. Good spalling resistance and wear resistance.

3. Good corrosion resistance.

4. Good thermal shock resistance.

5. High mechanical strength.

6. High-temperature creep rate is low.

7. Good volume stability at high temperature.



Specification:







Index

High Alumina Brick for Blast furnace

LZ-75

LZ-65

LZ-55

Al2O3, % ≥

75

65

55

Fe2O3,% ≤

2.0

2.0

2.0

Refractoriness,°C≥

1790

1790

1770

Liner change on reheating(1500°C*2h)

0~-0.2

0~-0.2

0~-0.2

0.2Mpa Refractoriness under load, °C≥

1520

1500

1480

Apparent porosity, % ≤

19

19

19

Cold crushing strength, ≥

70.0

58.8

49.0







                   Item
       DL-80
DL-75
BDL-80
BDL-75
Al2O3,  %
80
75
80
75
A.P.%
19(21)
19(21)
18(20)
18(20)
P.L.C.      1500 X 2h
 0-0.3
0-0.3
±0.2
±0.2
CCS MPa
75
65
60
55
Load softening temperature
1530
1520
1530
1520
Thermal Shock (1100water cooling)
Issue actual value
8
8





Application:



Widely used for Coke oven, Blast furnace, hot Blast Stove, Tunnel kiln, steel Ladle, Steel smelting furnace,waste incinerators, Casting products, Boilers, Cement kilns, Carbon furnace, Glass kilns and a variety of furnace linings and thermal equipment.







Packaging & Shipping



Packing: Standard export wooden pallet with PET strap fixed,



         paper or non-woven fabrics between layers,



         finally wrapped with plastic shrink film from outside.





Shipping: By vessel or plane from any Chinese port

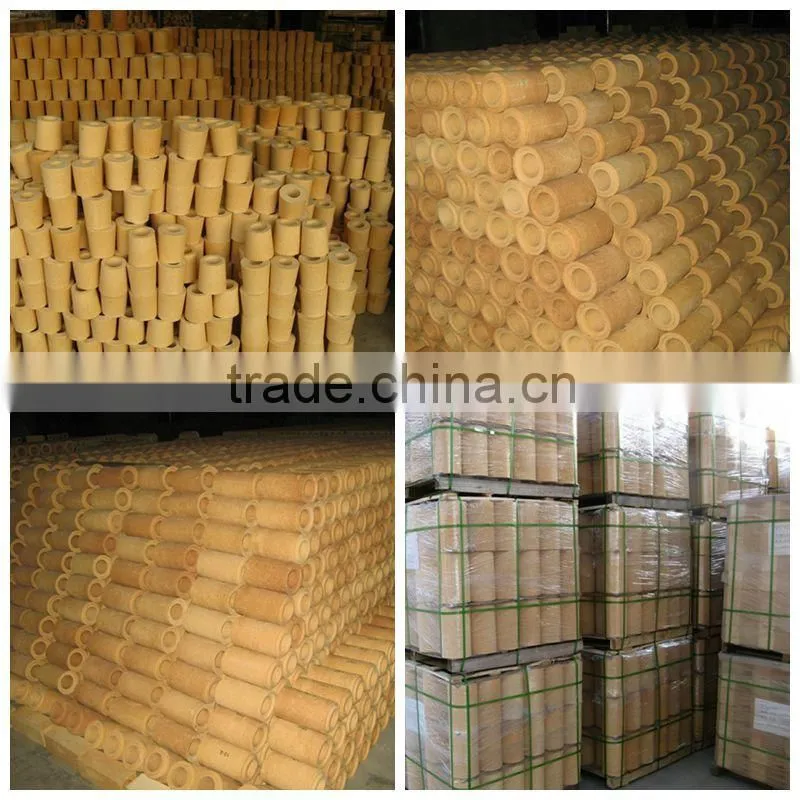

 High temperature casting steel brick for Steel casting furnace




Our Services



1.Timely response,

Timely response to your inquiry, multiple choice recommendations based on your demand,quickly respond mails and provide solutions.



2.Free sample

Sample and trial order are accepted for the quality evaluation



3.Strict quality control

Arrange production on time and control quality strictly.



4.Shorter delivery time.

Book the earliest vessel or plane to guarantee the delivery time.



5.Professional Services

Provide all the detailed news and pictures from order to delivery;

Offer relative export documents and original certificate if needed;

Warm and considerable after-sale service









Company Information





DKJL refractories exporting company is one of the most professional suppliers of refractories in China.Our main products are refractory bricks, thermal insulation material, heating elements, industrial ceramics and scientific instruments.They are available in various size and shapes. Our products enjoy a good reputation for their excellent quality and service in domestic and international markets.

High temperature casting steel brick for Steel casting furnace



FAQ



Q1.How can I get your prompt quotation?

A:We can give our offer quickly if  you kindly send the inquiry with following factors:drawing,dimension,service temperature,application and quantity.

We’d be appreciated if you can also provide the density and AL2O3 content of the brick.



Q2.What is the MOQ(minimum order quantity )?

500 pieces.



Q3.What is the HS code?

The HS code is 69022000



Q4. How can I contact you?
