Specifications
timber logs trailer1.Full hydraulic drive

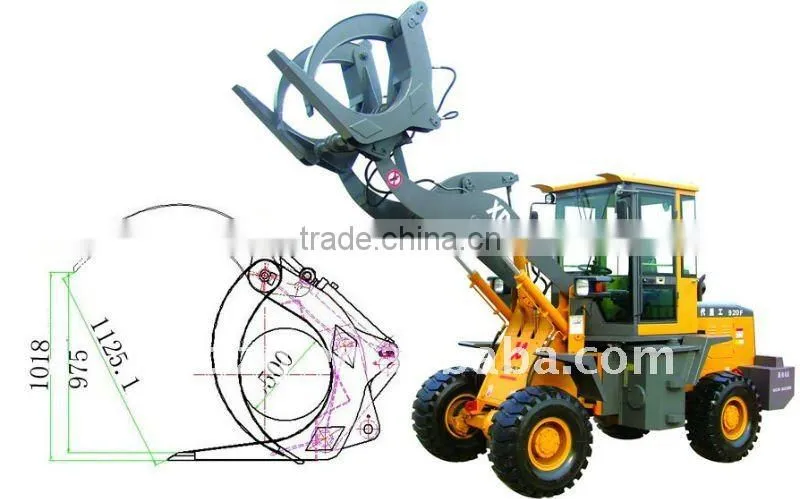

2.Wood diameter: 500mm to 1125.1mm
3.CE certificate
timber logs trailer
1.China famous brand YUNNEI engine.
2.Hydraulic transmission and hydraulic steering.
3.Countershaft power-shift gearbox ,torque converter.
4.Air over hydraulic break system ,caliper break system.
5.Wheel reduction axle, automatic bucket flat.
6.Over load protection system
Specification
Model |
XD918F |
Diameter (mm) |
500-1125.1 |
Rated load (t) |
1.6 |
Weight (t) |
4.6 |
Lifting time of the arms (s) |
≤6 |
The sum of three items(s) |
≤10 |
Forward gear(km) |
I 0-8 II 0-18 |
Reverse gear(km) |
I 0-8 II 0-18 |
Overall dimension(mm) |
5500*1900*2770 |
Wheel base (mm) |
2248 |
Wheel tread(mm) |
1385 |
Max. dumping height(mm) |
2800/3200 |
Dumping reach (mm) |
860 |
Engine model |
YUNNEI4100 |
Rated speed (r/min) |
2400 |
Rated power(kw) |
48 |
Tires type |
17.5-16 |
