Help CenterXD920F Loader With Fork
Related Products
Specifications
loader with fork1.Hydraulic control,
2.air brake;Optional
3.Pilot control,
4.Quick hitch

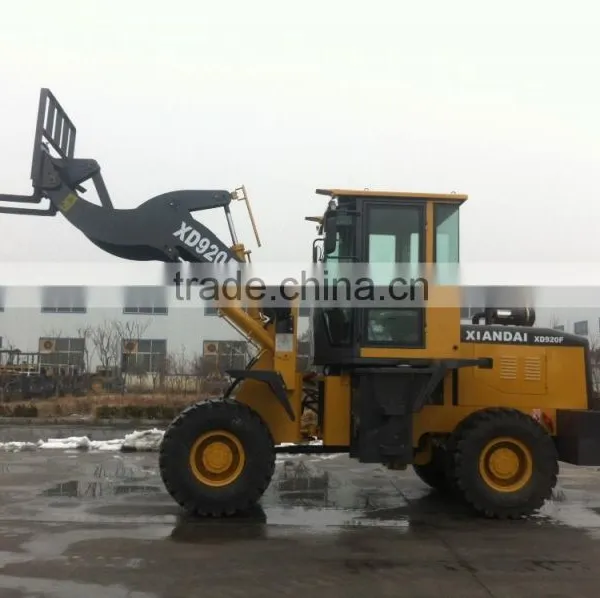

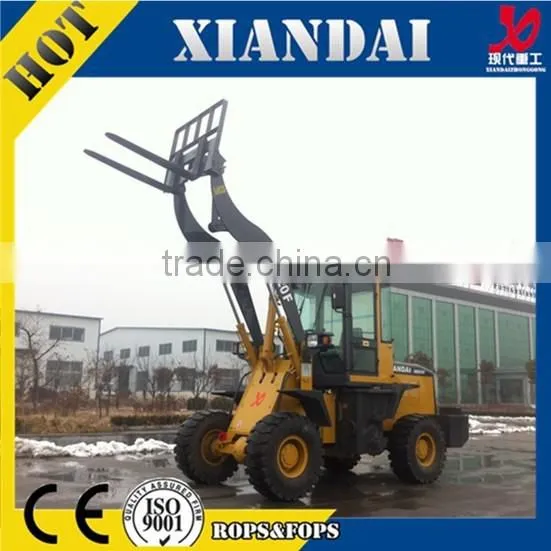

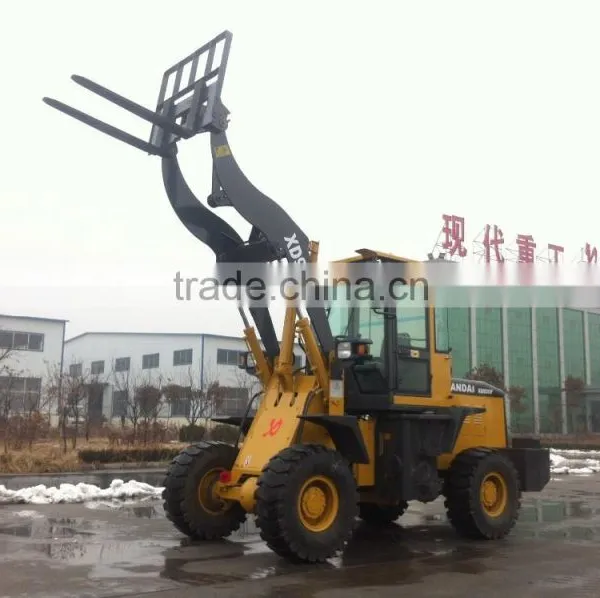

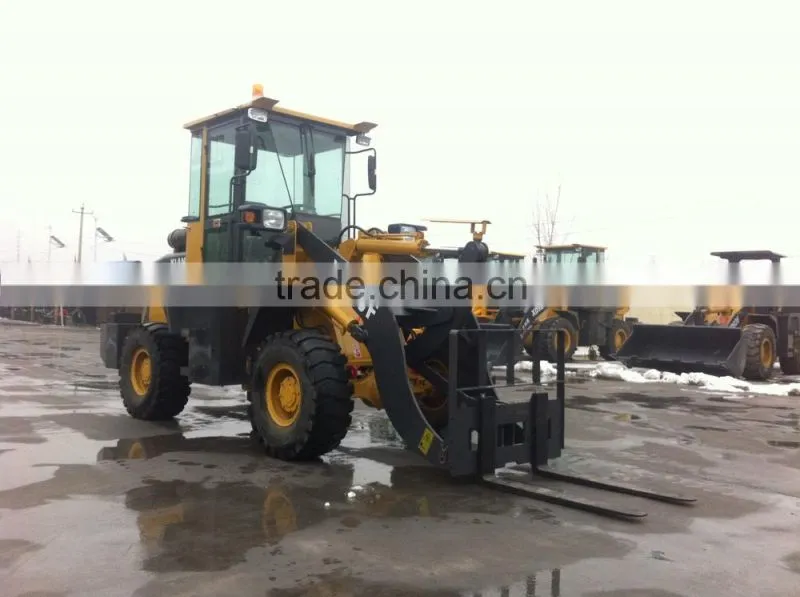

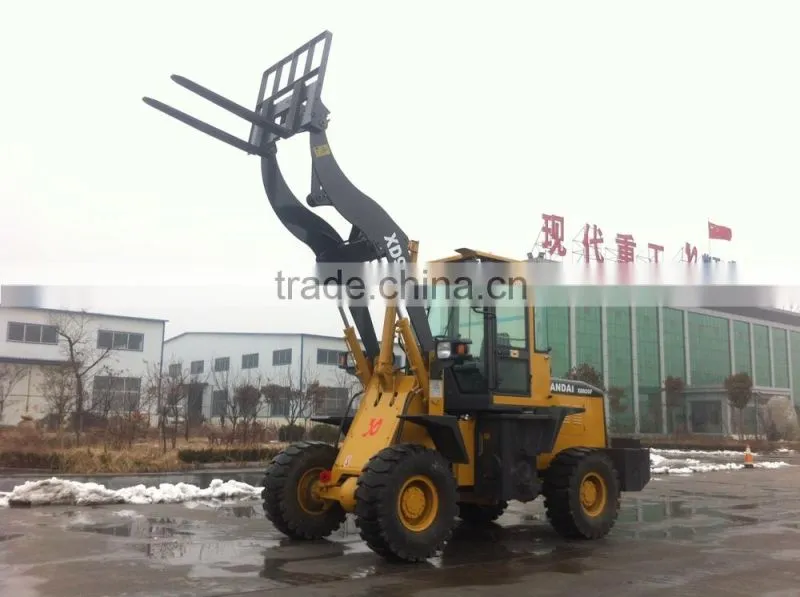

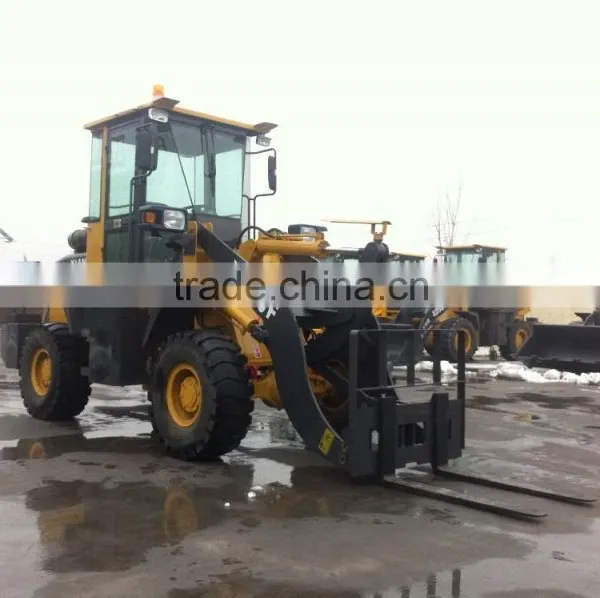

XD920F loader with fork
I.Features&Benifits
1.Heavy-duty frame structure with strong and thick steel is designed to resist twisting forces, torsional shock and stresses generated during the loading cycle while protecting drive line and hydraulic system components.
2.Automatic bucket flat to improve work efficiency.
3. Radio with USB key let drivers enjoy his working.
II.Specifications
Model |
XD920F |
Main specifications | |
Bucket capacity (m3 ) |
0.8 |
Rated load (t) |
1.6 |
Weight (t) |
4.6 |
Lifting time of the arms (s) |
≤6 |
The sum of three items(s) |
≤10 |
Forward gear(km/h) |
I 0-8 II 0-18 |
Reverse gear |
I 0-8 II 0-18 |
Max. climbing gradient |
30° |
Demensions | |
Overall dimension (mm) |
5500*1900*2770 |
Wheel base (mm) |
2248 |
Wheel tread(mm) |
1385 |
Max. dumping height(mm) |
2800/3200 |
Dumping reach (mm) |
860 |
Diesel engine | |
Engine model |
SIDA 4102G |
Engine type |
In-line,water-cooling,4-stroke,4cylinder,direct-injection |
Rated power(kw) |
50 |
Rated speed (r/min) |
2400 |
Total exhaust of cylinder(L) |
3.76 |
Type of starting |
Electric start |
Transmission system | |
Torque converter |
|
Model |
YJ280 |
Type |
Single stage, three elements |
Gearbox |
|
Model |
ZL15 |
Type |
Fix counter-shaft, power-shift |
Axle and tire |
|
Type of main reducer |
Spiral bevel gear,single stage |
Type of final reducer |
Single stage planetary |
Size of tire |
17.5-16 |
Working device of hydraulic system | |
Model of working pump |
CBG2050 |
Nominal displacement(ml/r) |
50 |
Multi-way directional valve |
ZL15 |
Rated flow(L/min) |
15 |
Steering system | |
Type |
Load-sensing hydraulic steering |
Displacement(ml/r) |
250 |
Max input pressure(Mpa) |
16 |
Brake system | |
Type of traveling break |
Air over hydraulic brake |
Type of parking break |
Manual disc brake |
