Help CenterXD920F Steel Grapple
Related Products
Specifications
XD920F steel grapple1.Hydraulic control, torque converter
2.Counter-shaft gearbox

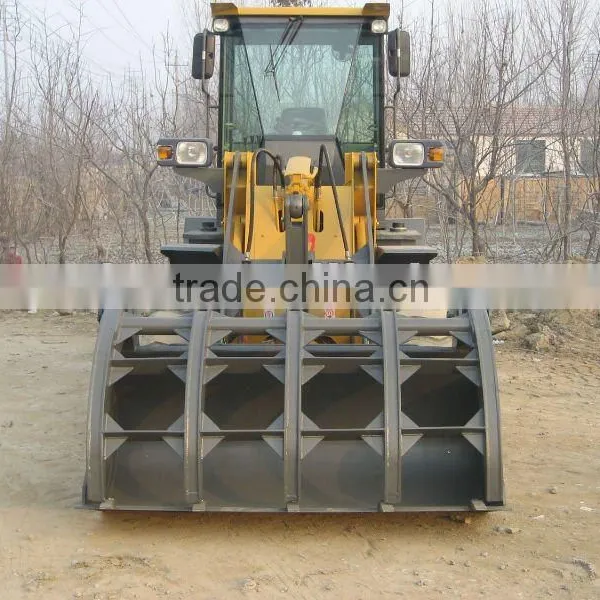

3.Bucket with grapple to grab steel
XD920F steel grapple
1. China famous brand Sida4102 engine.
2. Hydraulic transmission and hydraulic steering.
3. Countershaft power-shift gearbox ,torque converter.
4. Air over hydraulic break system ,caliper break system.
5. Wheel reduction axle, automatic bucket flat.
6. Over load protection system

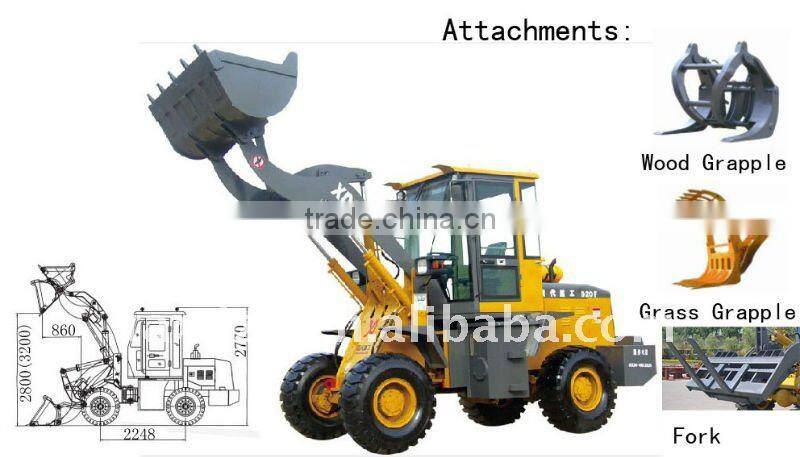

7. Optional attachments: wood grapple, grass grapple, fork, side dump bucket, 4 in 1 bucket etc.
Specification
Item |
XD920F |
Bucket capacity (m3 ) |
0.8 |
Rated load (t) |
1.6 |
Weight (t) |
4.6 |
Lifting time of the arms (s) |
≤6 |
The sum of three items(s) |
≤10 |
Traveling speed (km/h) |
0-18 |
Forward gear (km/h) |
I 0-6.5 II 0-18 |
Reverse gear (km/h) |
I 0-6.5 II 0-18 |
Max. climbing gradient |
30° |
Overall dimension (mm) |
5500*1900*2770 |
Wheel base (mm) |
2248 |
Wheel tread(mm) |
1385 |
Max. dumping height(mm) |
2800/3200 |
Dumping reach (mm) |
860 |
Engine model |
SD4102/4102 turbo-charge |
Rated power(kw) |
50/58 |
Rated speed(r/min) |
2400 |
Tires type |
17.5-16 |

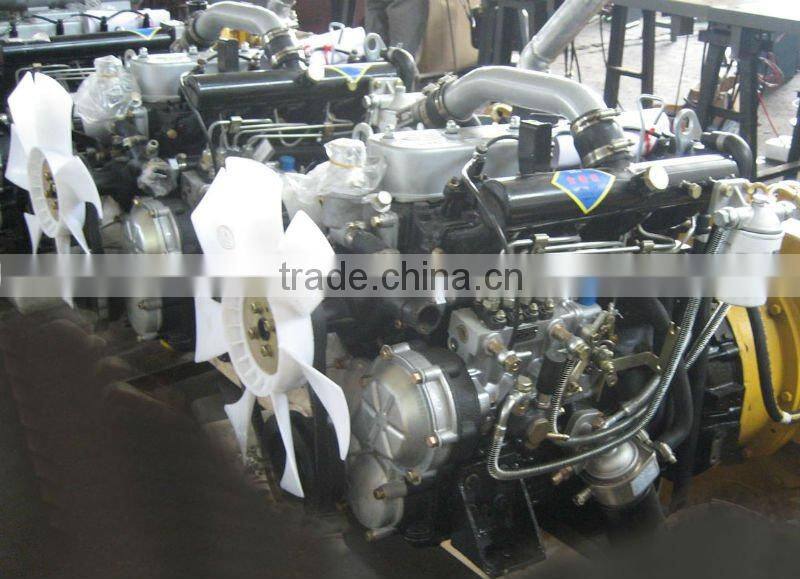

1.China Top Brand SIDA Engine

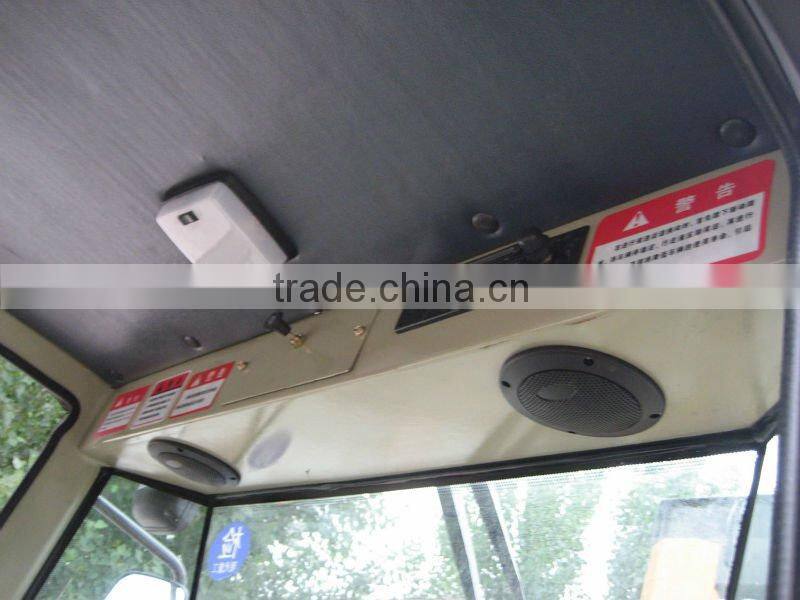

2.stereo receiver
3.
