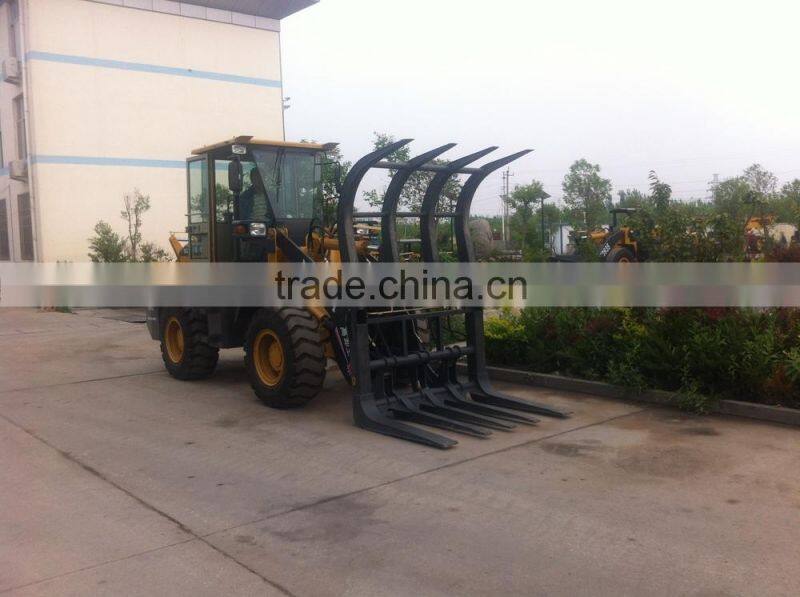

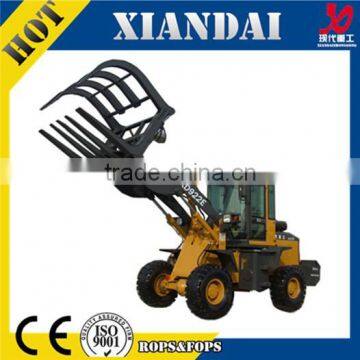

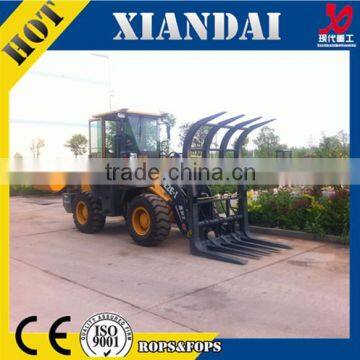

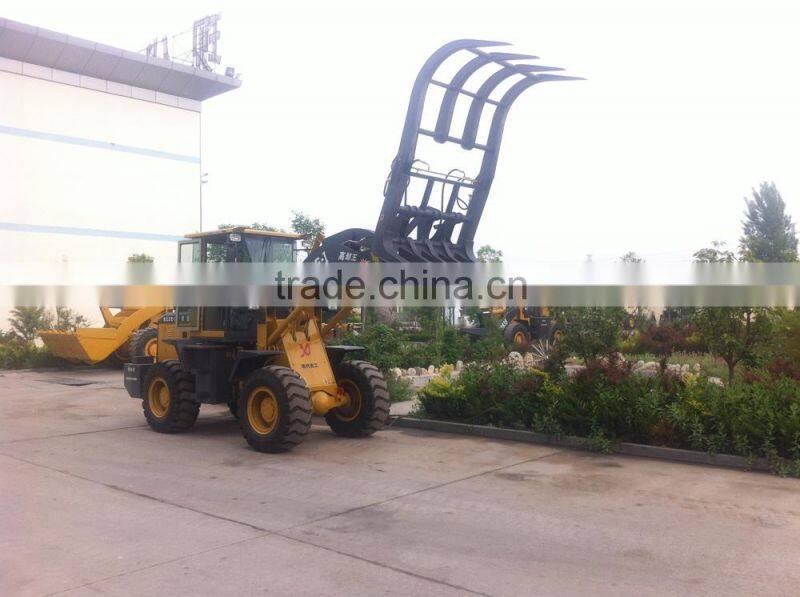

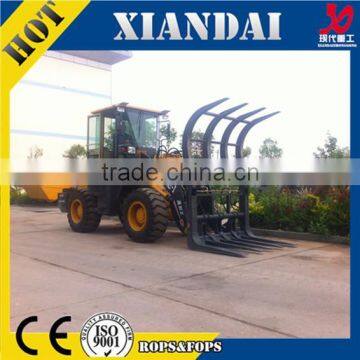

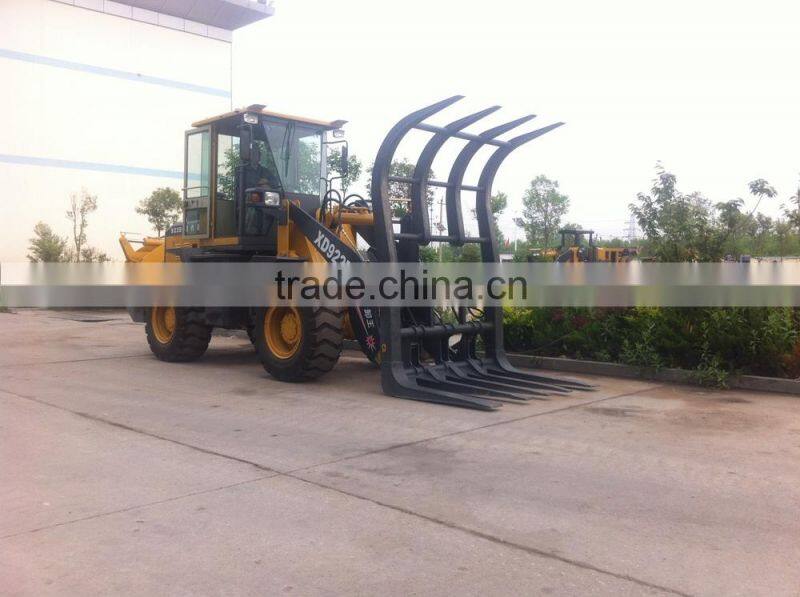

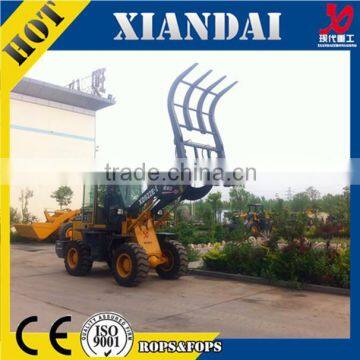

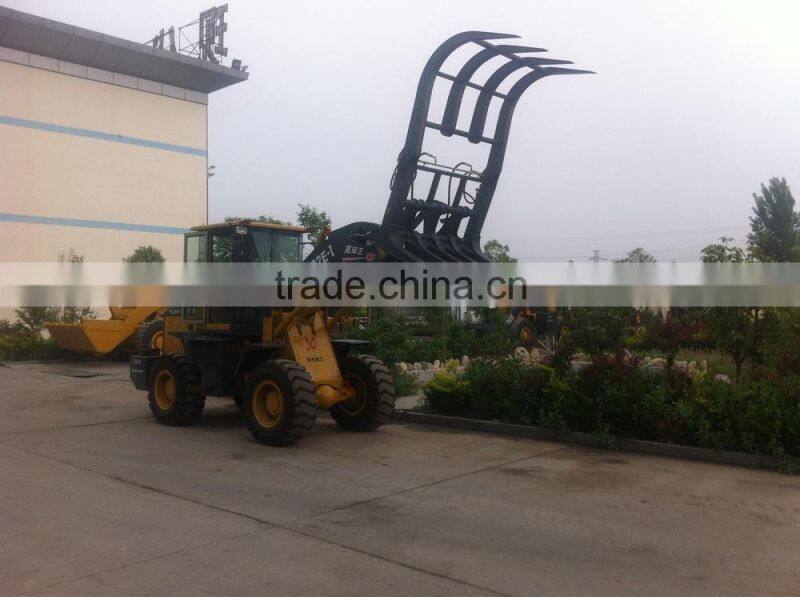

Help CenterXD922E 1.8T Express With CE FOR SALE (Fram Equipment Machinery)Grass Loader Suger Cane Loader MADE IN CHNA
Related Products
-
XD918F 1.6T Suger Cane LoaderUS$ 10,000 - 14,000MOQ: 1 Unit -
XD926G 2.0Ton Express Grass Grab Loader Clamp With CE FOR SALE Multifuntional Farm Machinery Made in ChinaUS$ 10,000 - 20,000MOQ: 1 Unit
-
XD922E 1.8Ton Wood Grab Loader (Log Loader Crane Trailer) With CE FOR SALE ( Express) Made in ChinaUS$ 13,000 - 16,000MOQ: 1 Unit
-
XD926G 2.0T Timber Crane Trailer Loader (Log Loader Wood Grab Loader )with CE FOR SALE MADE IN CHINA ExpressUS$ 10,000 - 20,000MOQ: 1 Unit
-
Grass GrabberNegotiableMOQ: 1 Set
Specifications
1.8T Grass Grabber Loader1.CE certificated
2.YN38 engine
3.option:A/C,joystick,quick hitch,
4.lifting height:3/3.2m
I.Features&Benefits
1.With new steel frame,the cab features wider view field, safety and low noise.
2.The low vibration suspending seat is designed specially for the operator that improve the human feeling.
3.Precise instrument system can supevise the parameters about fuel, watertemperature and air pressure.
II.Specifications
Model |
XD922E |
|||||
Main specifications | ||||||
Rated load (t) |
1.8 |
|||||
Operation Weight (t) |
5.5 |
|||||
Lifting time of the arms (s) |
≤6 |
|||||
The sum of three items(s) |
≤10 |
|||||
Forward gear(km/h) |
I 0-6.5 II 0-24 |
|||||
Reverse gear(km/h) |
I 0-6.5 II 0-24 |
|||||
Max. climbing gradient (°) |
30° |
|||||
Dimensions | ||||||
Overall dimension (L×W×H mm) |
5650×2000×2850 |
|||||
Wheel base (mm) |
2150 |
|||||
Wheel tread(mm) |
1440 |
|||||
Max. dumping height(mm) |
3000/3200 |
|||||
Dumping reach (mm) |
1050 |
|||||
Diesel engine | ||||||
Engine model |
YN38 |
|||||
Engine type |
In-line,water-cooling,4-stroke,4 cylinders,direct-injection |
|||||
Rated power(kw) |
70 |
|||||
Rated speed (r/min) |
2400 |
|||||
Total exhaust of cylinder(L) |
3.76 |
|||||
Type of starting |
Electric start |
|||||
Transmission system | ||||||
Torque converter |
|
|||||
Model |
YJ280 |
|||||
Type |
Single stage, three elements |
|||||
Gearbox |
|
|||||
Model |
ZL20 |
|||||
|
Type |
Fixed counter-shaft, power-shift |
||||
|
Axle and tire |
|
||||
|
Type of main reducer |
Spiral bevel gear,single stage |
||||
|
Type of final reducer |
Single stage planetary |
||||
|
Size of tire |
16/70-20 |
||||
|
Working device of hydraulic system |
|||||
|
Model of working pump |
CBG2050 |
||||
|
Nominal displacement(ml/r) |
50 |
||||
|
Working system pressure(Mpa) |
17 |
||||
|
Multi-way directional valve |
ZL15 |
||||
|
Rated flow(L/min) |
15 |
||||
|
Steering system |
|||||
|
Type |
Load-sensing hydraulic steering |
||||
|
Displacement(ml/r) |
250 |
||||
|
Max input pressure(Mpa) |
16 |
||||
|
Brake system |
|||||
|
Type of traveling brake |
Air over hydraulic brake |
||||
|
Type of parking brake |
Manual disc brake |
||||
Send Inquiry to This Supplier
