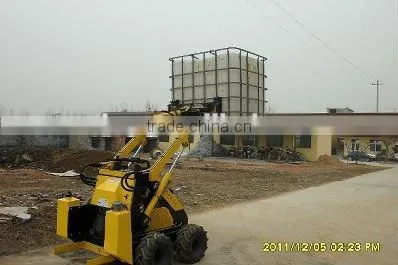

Pallet Fork for Skid Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XD
Model Number:
XD380
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
XD
Model Number
XD380
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Other, mini skid steer loader
Dimension(Long * Breadth * High)
2206*1033*1205mm
Rated Load
280kg
Specifications
pallet fork of skid steer1.engine:B&S(21HP/23HP)
2.lifting capacity:150kg
3.fork length:0.73M---1.1M
4.joystick,crawler

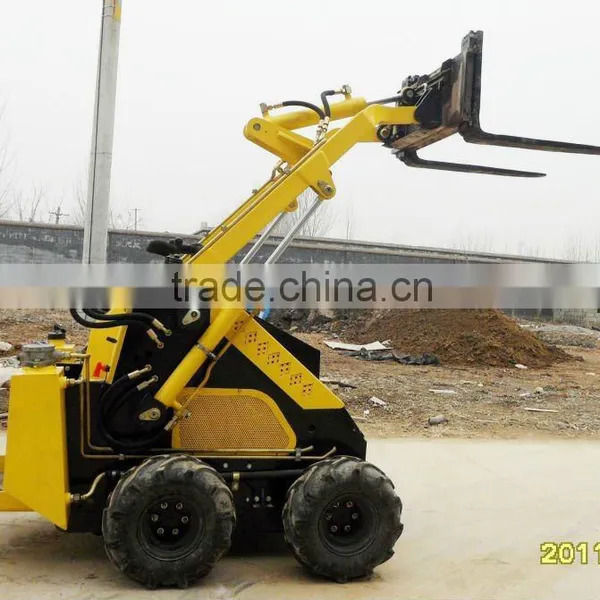

XD380 pallet fork of skid steer loader with 1.8M lifting height, 150kg load
1.engine:B&S,Kohler
2.multifunctional with fifteen kinds of attachments.
3.optional:joystick,four kinds of tires,fifteen kinds of tools,crawler,etc.
4.one year warranty.
5.fork length:730-1100mm
6.lifting capacity:150kg
Model |
XD380 |
Engine Model |
B&S 3854 |
Rated Power |
20HP |
lifting capacity |
150kg |
max lifting height: |
1.8m |
Operating Weight |
1100KG |
Engine Displacement |
627ML |
System Pressure |
17mpa |
Bucket Breakout Force ,Bucket Cylinder |
550KN |
Breakout Force,Lift Cylinder |
375KN |
Tipping Load |
325KG |
Grade Ability |
8 |
Fuel Tank Capacity |
21L |
OIL Tank Capacity |
27L |
Max.Travel Speed |
5.5Km/h |
Dimension(L*W*H) |
2206*1033*1205mm(loader with solid tires) |
