Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Loader > Earth Auger Mini Skid Loader

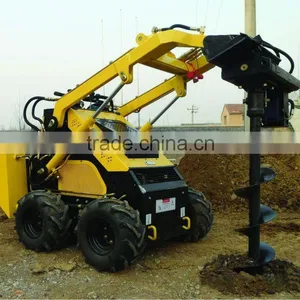

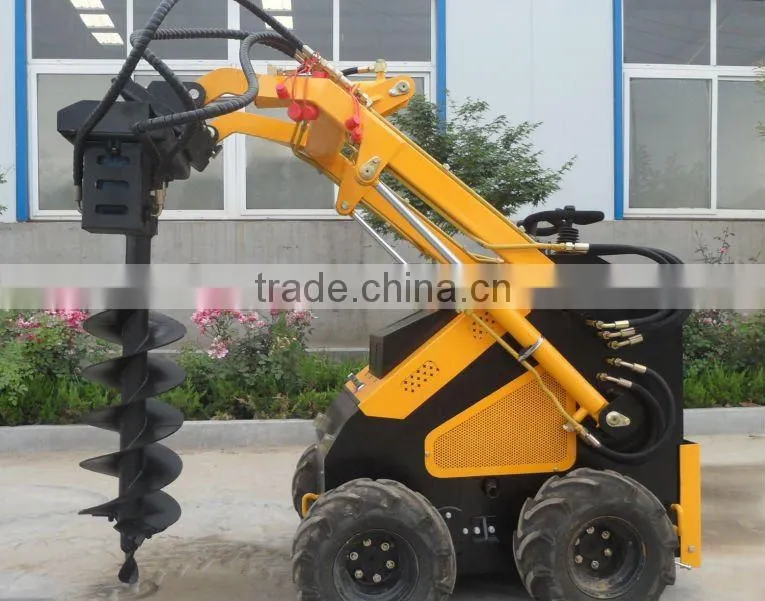

Earth Auger Mini Skid Loader
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
XD
Model Number:
XD380
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao or others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
XD
Model Number
XD380
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Other, mini skid steer loader
Dimension(Long * Breadth * High)
2206*1033*1205mm
Rated Load
280kg
Specifications
earth auger mini skid loader1B&S3854 engine
2.150mm--600mm drilling rod
3.max drilling depth:1000mm
4.tyres or tracks
earth auger post hole digger(Model XD380)
1.21HP or 23HP B&S engine
2. max drilling depth:1m
3.drilling rod diameter:150mm,200mm,300mm,450mm,600mm
4.wheeled or tracked for needs
5.machine can be coupled with other different attachments.
Model |
XD380 |
Engine Model |
B&S 3854/3864 |
Rated Power |
20HP/23HP |
max drilling depth |
1000mm |
drilling rod diameter |
150mm--600mm |
Operating Weight |
1100KG |
Engine Displacement |
627ML |
System Pressure |
17mpa |
Bucket Breakout Force ,Bucket Cylinder |
550KN |
Breakout Force,Lift Cylinder |
375KN |
Tipping Load |
325KG |
Grade Ability |
8 |
Fuel Tank Capacity |
21L |
OIL Tank Capacity |
27L |
Max.Travel Speed |
5.5Km/h |
Dimension(L*W*H) |
2206*1033*1205mm(loader with solid tires) |
