Help CenterMINI Wheel Loader Mini Loader Multifunctional Small Loader for Sale
Related Products
Specifications
mini loader1.B&S,HONDA engine
2.bucket:0.15M3,load:280kg
3.option:joystick,4tires,15tips

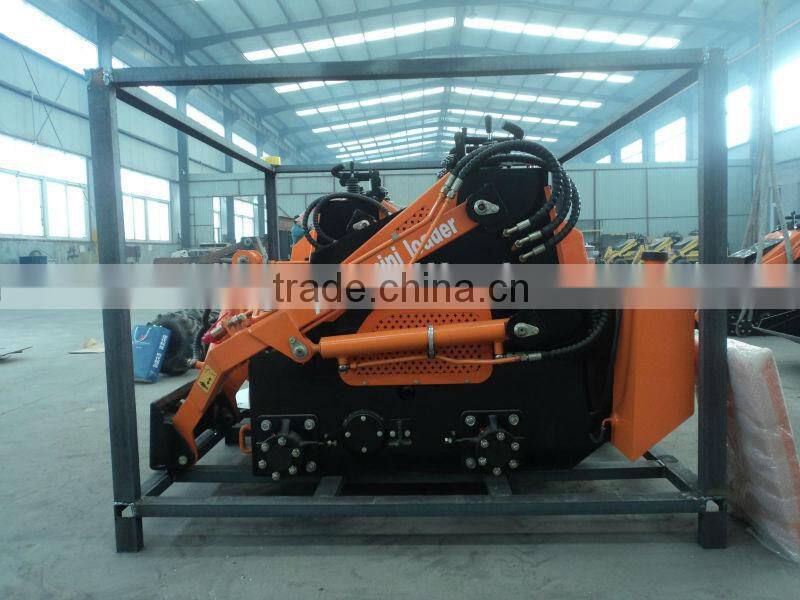

4.20'GP can load 5sets

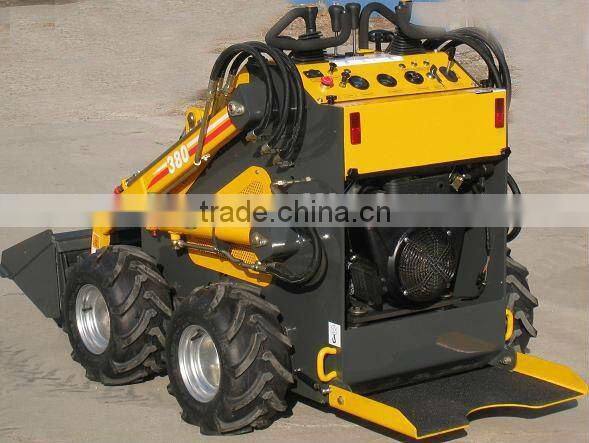

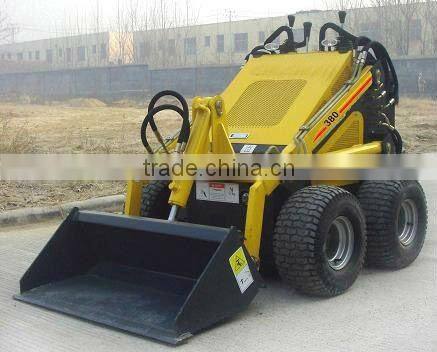

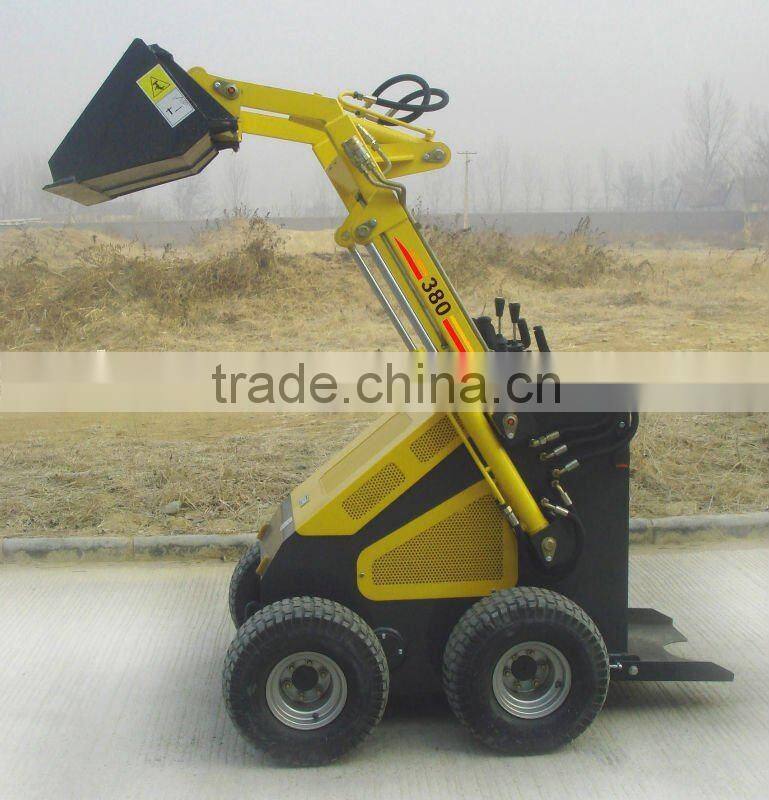

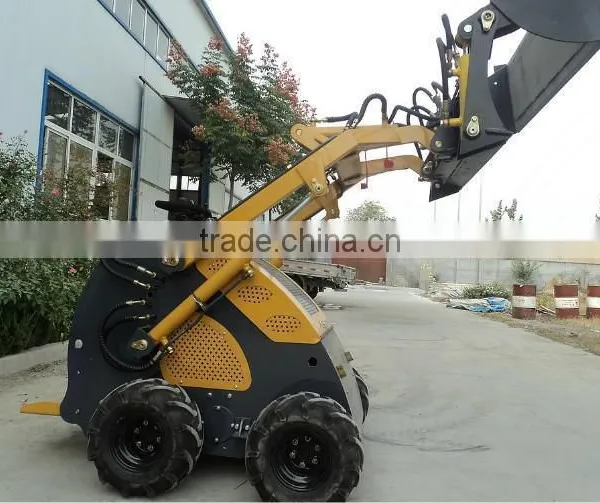

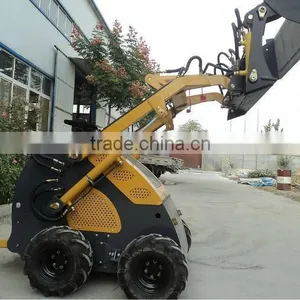

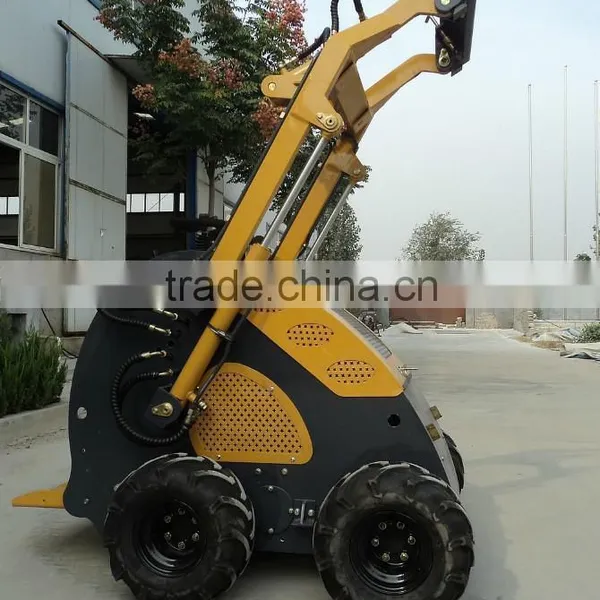

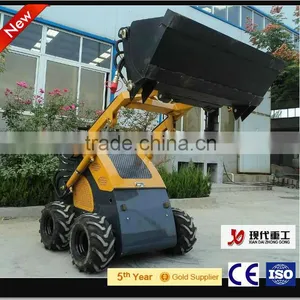

mini front end loader (Model XD380) for landscaping or farm cleaning.
1.multifunctional with different tools
2.engine:B&S3854,Kohler gas engine with EPA certification, EURO II displacement.
3.optional:crawler, four kinds of tires, fifteen kinds of tools,hydraulic servo handle
4.one year warranty
5.This kind of machine also can be installed Seat, Sunshade.
we will design for the customer's needs
Specification
Model |
XD380 |
Engine Model |
Briggs&Stratton 3854 gas |
Rated Power |
21HP/ 15.5kw |
Performance | |
Hydraulic pumps |
2 pumps |
Relief pressure(drive) |
170bar |
Relief pressure(aux ) |
170bar |
Attachment flow |
25 l/min |
Travel Speed |
0-5.5Km/h |
Rate lift capacity |
SWL:325kg |
Rate lift capacity | |
MWL:375kg | |
Auxiliary hydraulic outlets |
3 or 5 |
Dimensions | |
Overall length |
1752mm (without bucket) |
2206mm (With bucket) | |
Overall width |
1100mm |
Overall height |
1180mm |
Max operating height |
2143mm |
Track type |
180mm(width)*72mm((grouser gap)) |
Angle of departure |
11 |
Wheel base |
636mm |
Ground clearance |
110mm |
Dump height Std bucket |
1473mm |
Dump reach |
348mm |
Height to hinge pin |
1880mm |
Machine width |
1160mm |
Hydraulic reservoir capacity |
27L--50L |
Machine mass |
920kg |
Optional:
1.Kohler gas engine, Winsun diesel engine

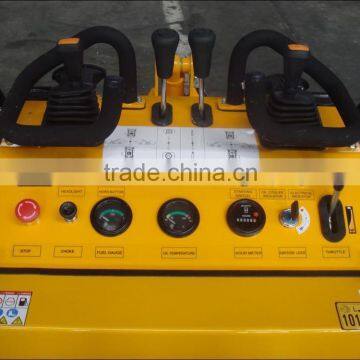

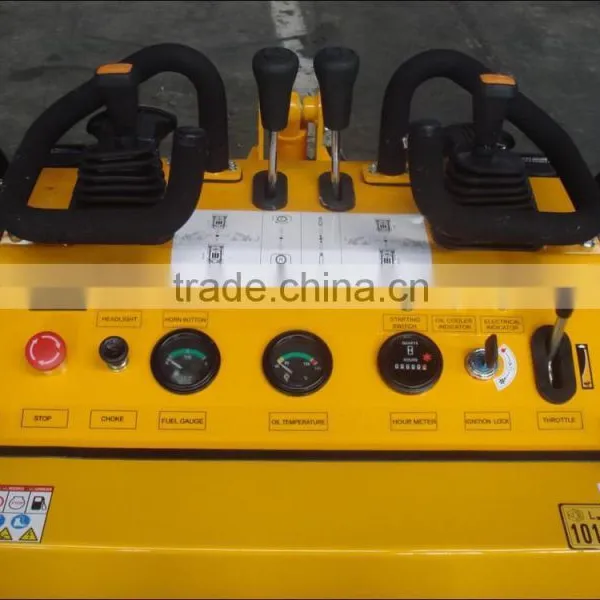

2. Italy hydraulic pilot control with joystick
3.optional tires: lawn tire(18*9.5-8), engineering tire(18*9.5-8), narrow tire(5.00-8),solid tire(16*6-8).

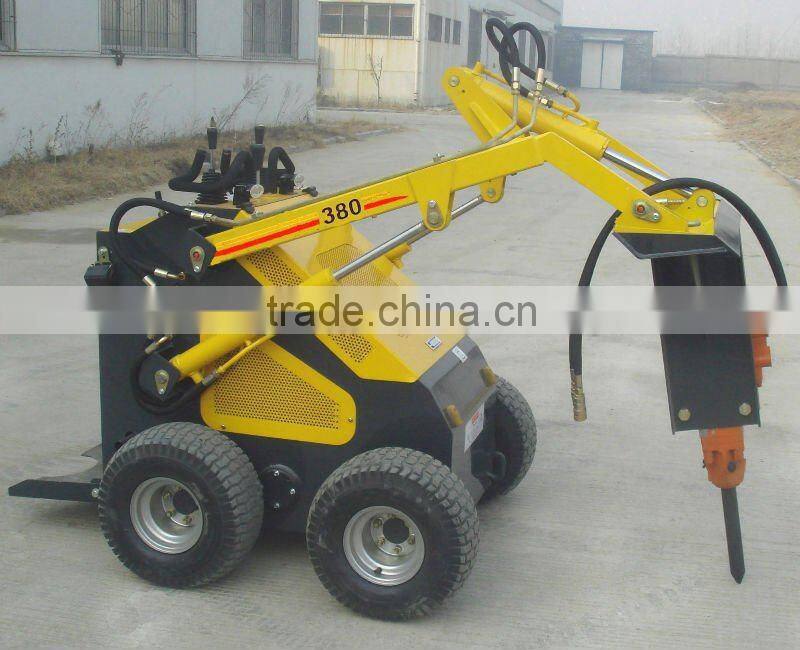

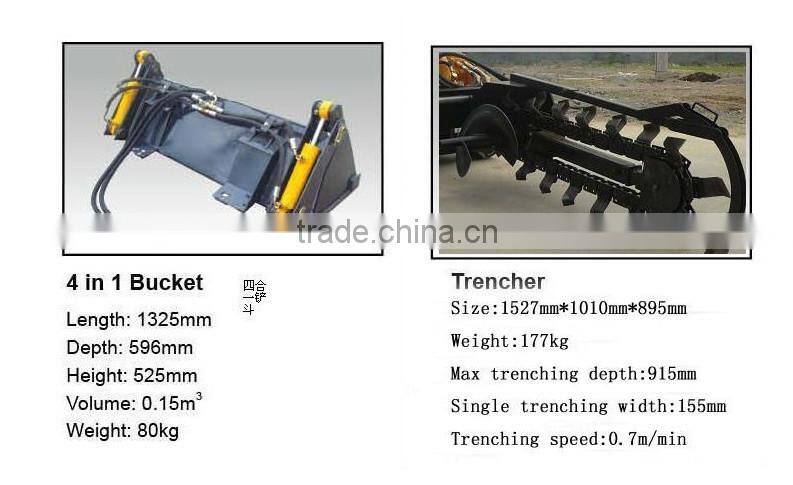

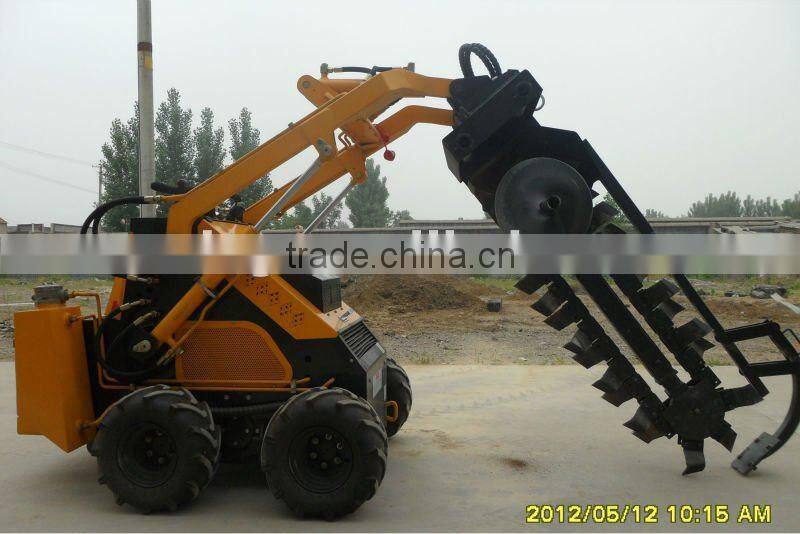

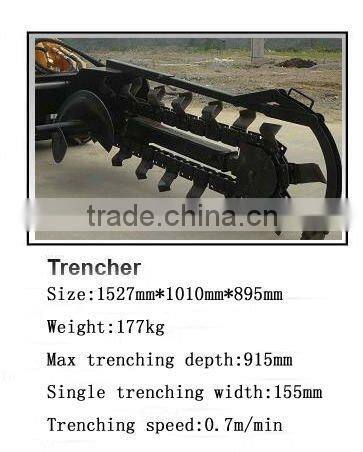

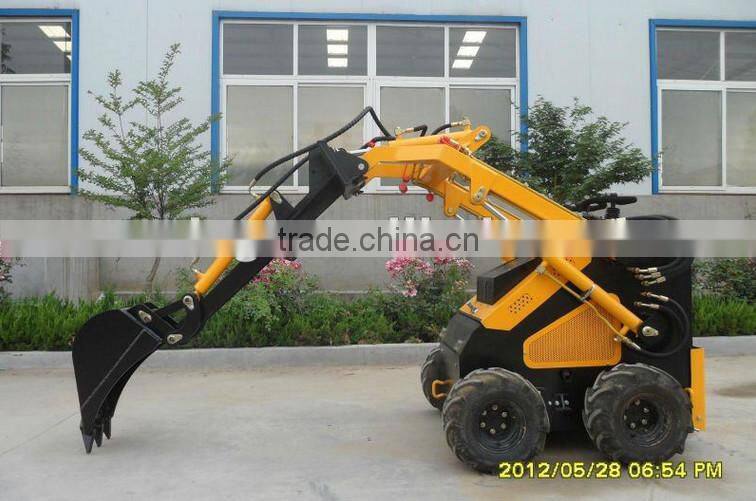

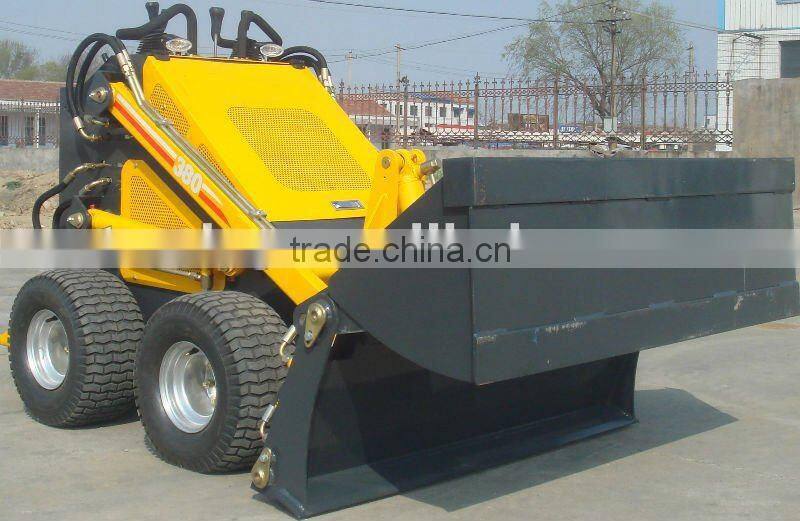

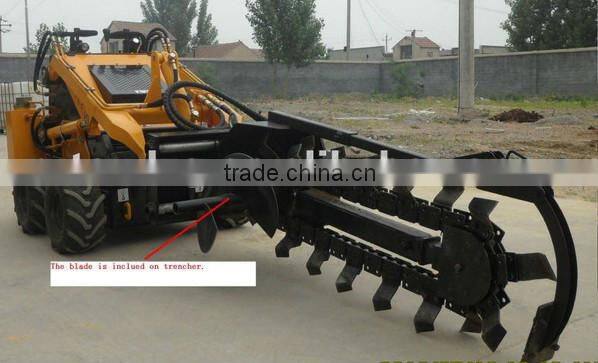

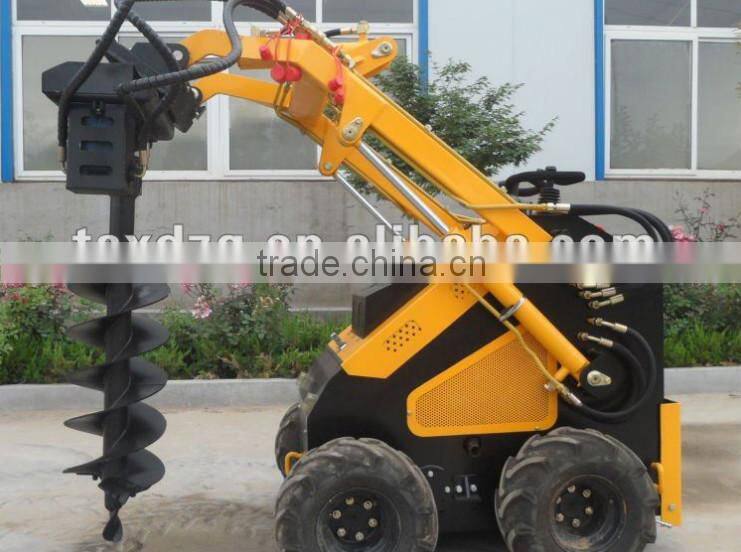

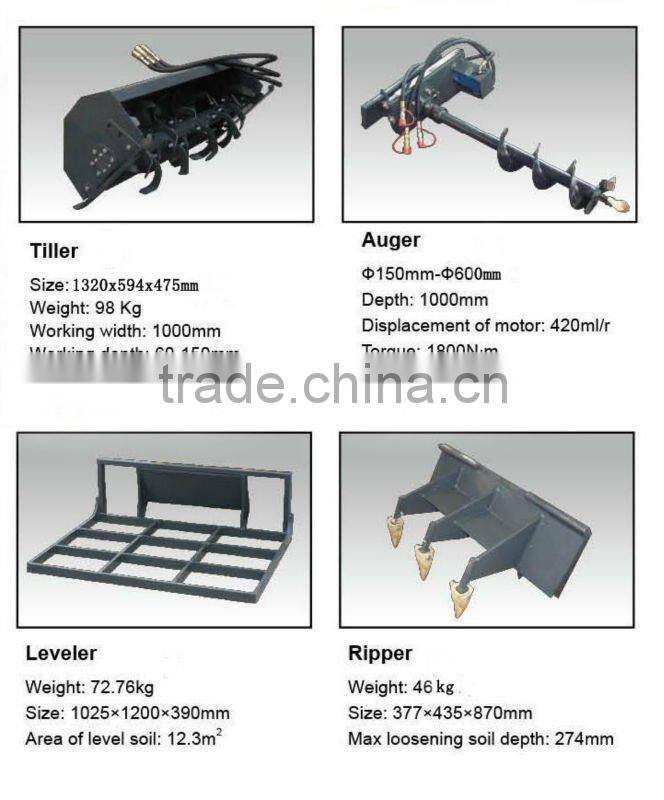

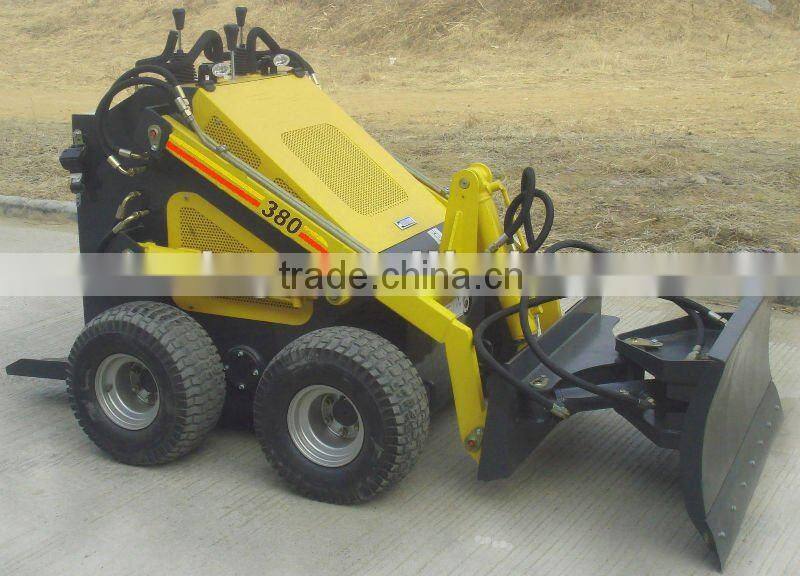

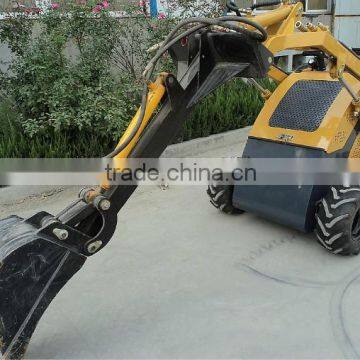

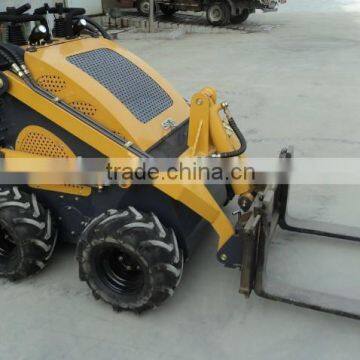

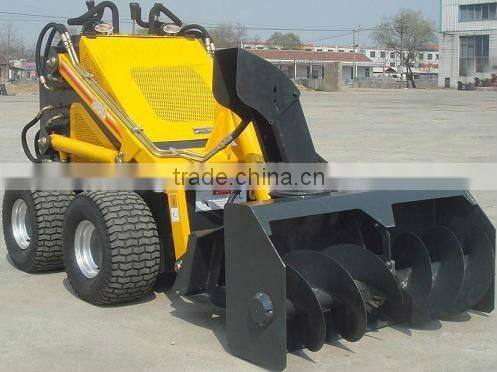

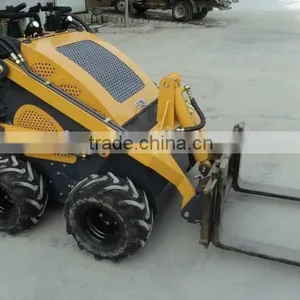

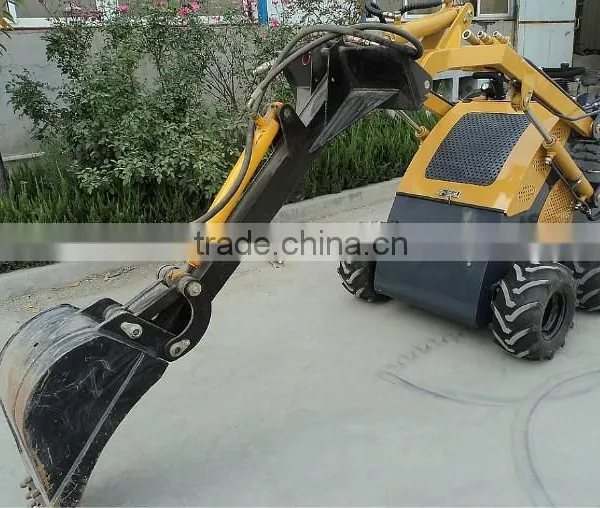

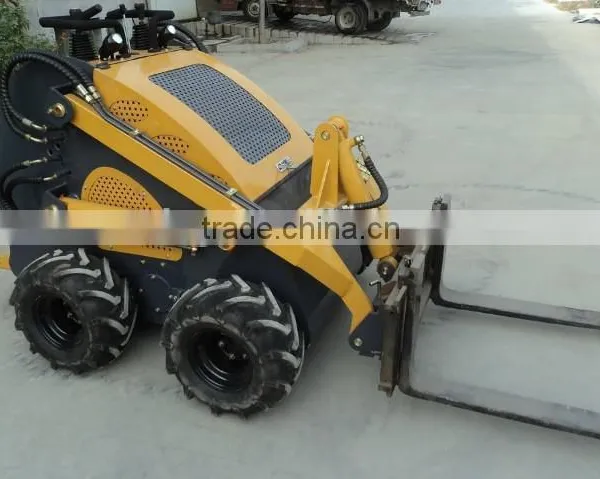

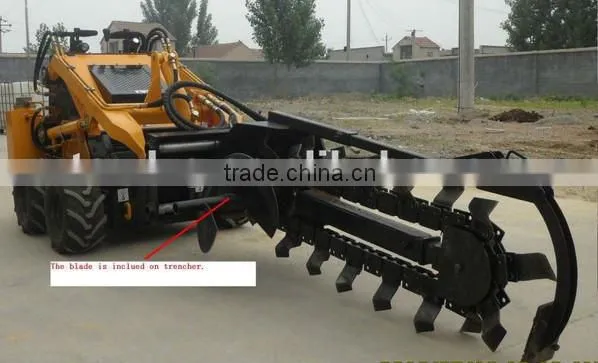

4.optional attachments: fork, auger, digger, angle blade, grapple, 4-in-1 bucket,breaker, lawn mover, trencher, snow blower, backhoe, tiller, mixer, leveler, ripper.
