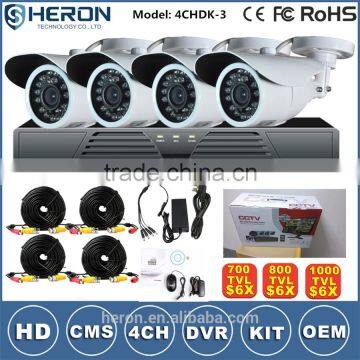

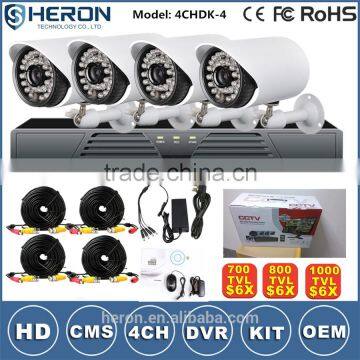

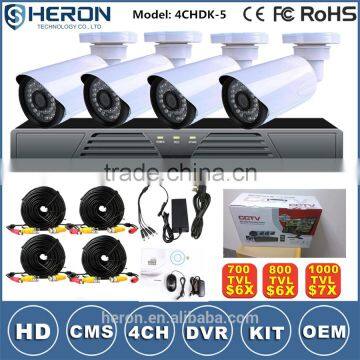

Cheap H.264 4CH DVR NVR CCTV Kit Combo DIY Wireless CCTV Camera System
Product features
-4/8CH DVR KIT
Products provides OEM services
provides screen printing LOGO service (product and packaging can be screen printing) (laser printing)
Orders over 1000pcs sent 5pcs. Send orders over 2000pcs 10pcs ...
Orders over 1000pcs product packaging design services provided free. upgrade the competitiveness of products.exclusive product package (enhance the competitiveness of products)
we wish we could provide the best services to you .
sincerely yours.
CAMERA DESCRIPTION
| Specification | Parameters | ||
| Camera Type | Analog cameras | ||
| Sensor | 1/3″ PixelPlus 7030 | 1/3″ PixelPlus 3089 | 1/3″ PixelPlus 1099 |
| Video Resolution | 648H) x 488(V) | PAL/NTSC : 768(H) x 494(V) | PAL/NTSC : 976(H) x 496(V) |
|
Minimum Illumination |
Color:0.1Lux@(F1.2,AGC ON), 0Lux with IR |
Color:0.1Lux@(F1.2,AGC ON), 0Lux with IR |
color:0.1Lux@(F1.2,AGC ON), 0Lux with IR |
|
Blank&White:0.1Lux@(F1.2, AGC ON),0Lux with IR |
Blank&White:0.1Lux@(F1.2, AGC ON),0Lux with IR |
Blank&White:0.1Lux@(F1.2, AGC ON),0Lux with IR |
|
| Resolution | 700TVL | 800TVL | 1000TVL |
| System | PAL/NTSC | ||
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds | ||
| Focal Length | 3.6/6mm Varifocus Lens | ||
| Max. IR LEDs Length | 24pcs IR LED, 20m, Smart IR | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Synchronous Mode | inter-sync | ||
| Noise-signal Ratio | >48dB | ||
|
Temperature and Humidity |
-30°C~+60°C / Less than 95%RH (no condensation) | ||
| Power Supply | DC12V±10% | ||
| Noise Reduction | 2D | ||
| Ingress Protection | IP66 | ||
| Dimensions(W×D×H) | |||
DVR DESCRIPTION
♦ Hisilicon Hi3520 chip
♦ H.264 standard compression format
♦ Surveillance quality PAL/NTSC,960H/D1
♦ Playback:One channel or multi-channel playback
♦ Space Occupation D1: 20G/DAY/CH 960H: 30G/DAY/CH
♦ Backup Mode:Network burn, mobile Hard disk and USB burn
♦ Video Input :4channel BNC
♦ Video Output :1 channel HDMI and 1 VGA output
♦ Audio Input:4 channel RCA
♦ Audio Output:1 channel RCA
♦ Alarm Input:no
♦ Alarm output:no
♦ Support six operations at the same time recording, playback,network transmission,backup, mobile monitoring, PTZ control etc
♦ Support IE and client, remote parameter settings / convenient remote network access function without need to apply for any Domain names, plug and play
♦ Dedicated high-reliability file system for special monitoring
♦ Simplified Chinese, English, Thai, Russian, French,etc. over twenty twenty languages
♦ A powerful mobile control and monitoring features to support Window Mobile,
♦ Symbian, Android, iPhone Blackberry etc
♦ Net Interface:RJ-45 (10M/100M)
♦ PTZ Control:1 RS485
♦ USB Interface:2*USB
♦ HDD:1*2T
♦ Support Cloud website
Accesories
-1*1 to5 power line cable splitter
-4*18.5m BNC+DC Cable
-1*12V 5A power
-1*DVR Power
-1*Mouse
-1*Manual
-1*CD
Ⅰ. ODM Service
1. Label Printing:
Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.
2. Manual Printing:
Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.
3. Logo Printing:
Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.
Please send us .JPG format Logo within 2 colours, we will help you print on products and box, double check with you before goods dispatch.
Ⅱ. OEM Service
1. Label Printing:
Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.
2. Manual Printing:
Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.
3. Logo Printing:
Please send us .JPG format Logo within 3 colours, we will help you print on products and box, double check with you before goods dispatch.
4. Box:
Please send us your designed box based on our box demision and graph paper, we will send our box demision and graph paper first.
As a high-tech enterprise, we are engaged in the R&D, manufacturing, and exporting of surveillance products. We focus on high-end CCTV Cameras, IP Cameras, DVRs, NVR, HD-SDI, HD-CVI Products and CCTV relatives, Heron always dedicated to the World’s safety market to create a better life
Established in Aug 2010, as a specialized manufacturer, Heron developed more than 200 different models of CCTV Products. With many years’ experience in exporting CCTV products, heron products have been accepted by customers in over 150 countries, especially in Europe , USA and South America.
1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.
2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.
3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.
4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.
5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.
6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.
7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
