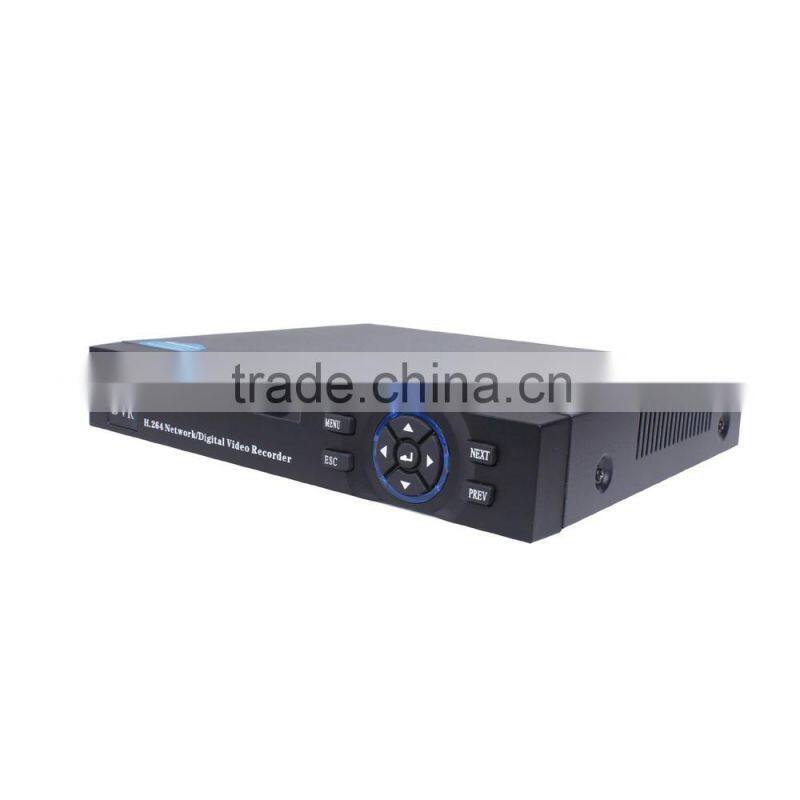

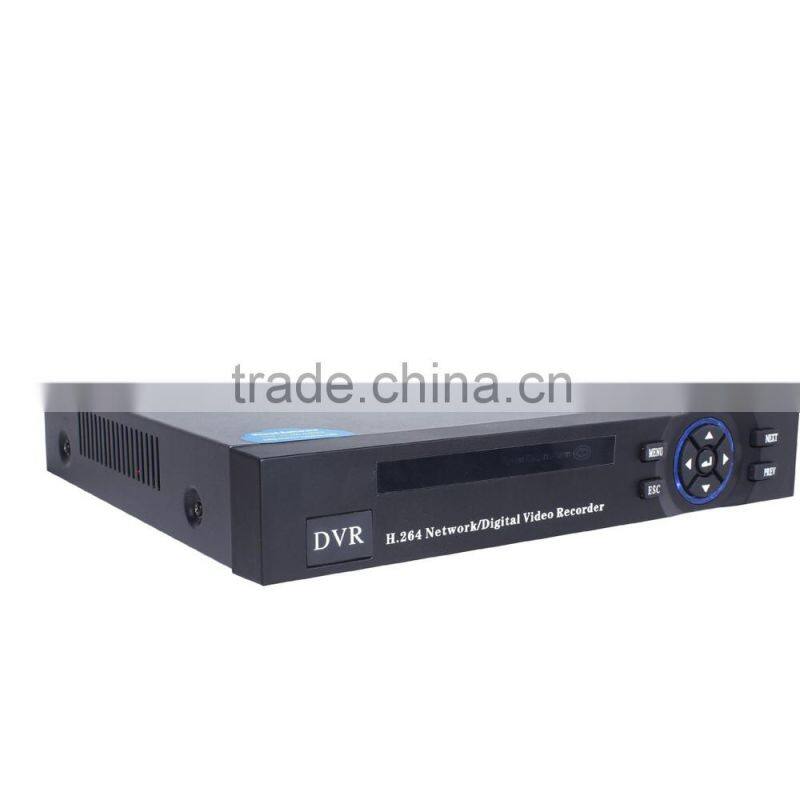

2016 new products standalone dvr 16 channel cctv dvr support ahd/tvi/ip/analog camera

Model

THB7004T-LM

System

Main processor

Hi3520D V200

Interface

Preview

1/4

Video

Codec

H.264

Monitor quality

VGA,HDMI:HD

Encode ability

4*1080N

Decode ability

1*1080N

Onvif

support

Multi-mode

input

analog: 4*1080N;4*AHD-M;4*AHD-L;
hybrid: 2* AHD-M(analog) +2*720P( network )
Network only:4*720P;4*1080P;8*720P;8*1080P;1*1080P

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)

Audio

Audio compression

G.711A

Intercom

support

Record & playback

Record mode

manual>alarm>motion detection>timing

Local Playback

4ch(local input mode)

Search mode

Search by time, calendar, event, channel

Storage & backup

Video storage

HDD, network

Backup mode

Network, USBhard disk, USB burner, SATA burner

External Interface

Video input

4ch BNC

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

0(Can be extended to 4ch)/0(Can be extended to 1ch)

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

2* USB ports

HDD

2*SATA ports (Max 6TB/per)

Wireless

3G, WIFI (extend via USB)

General

Power supply

12V/4A

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa

Dimension

Weight

1.5kg
