Specifications
Powder Coated Wire Mesh Panels for Warehouse BeamMany options on dimentions,USA standard or Euro standard for you reference

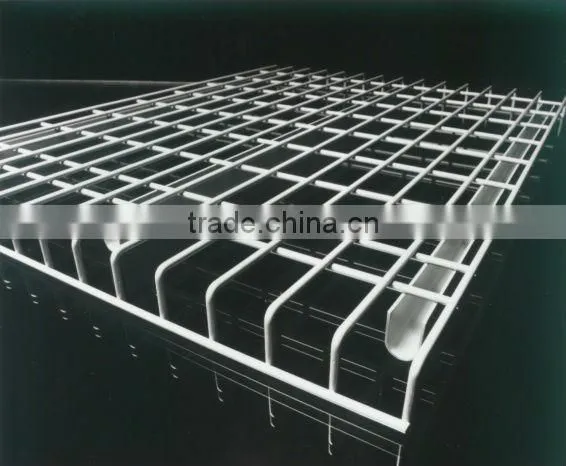

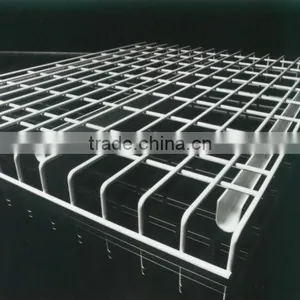

Powder Coated Wire Mesh Panels for Warehouse Beam
Specifications of Powder Coated Wire Mesh Panels for Warehouse Beam (Pls check below picture to know what is "W"&"D")
| Model No. | Specification(WxD)mm | Reinforcements no. | Mesh size | Loading capacity |
| 13023 | 600x800 | 3 | 50x150 | 300kg |
| 13017 | 1000x880 | 3 | 50x150 | |
| 13018 | 1050x880 | 3 | 50x150 | |
| 13019 | 1100x880 | 3 | 50x150 | |
| 13030 | 1000x880 | 3 | 50x125 | 500kg |
| 13031 | 1050x880 | 3 | 50x125 | |
| 13032 | 1100x880 | 3 | 50x125 | |
| 13001 | 1000x880 | 3 | 50x100 | 800kg |
| 13002 | 1050x880 | 3 | 50x100 | |
| 13003 | 1100x880 | 3 | 50x100 | |
| 13008 | 1000x1090 | 3 | 50x100 | |
| 13014 | 1050x1090 | 3 | 50x100 | |
| 13009 | 1100x1090 | 3 | 50x100 | |
| 13012 | 800x880 | 3 | 50x100 | |
| 13024 | 850x880 | 3 | 50x100 | |
| 13015 | 900x880 | 3 | 50x100 | |
| 13007 | 1200x880 | 3 | 50x100 | |
| 13010 | 1200x1090 | 3 | 50x100 | |
| 13004 | 1000x1340 | 4 | 50x100 | 1000kg |
| 13005 | 1050x1340 | 4 | 50x100 | |
| 13006 | 1100x1340 | 4 | 50x100 | |
| 13013 | 800x1340 | 4 | 50x100 | |
| 13011 | 1200x1340 | 4 | 50x100 |
Main features of Powder Coated Wire Mesh Panels for Warehouse Beam
1) 30~35mm waterfall bending
2)various design options for different beam
3)various loading capacity options for defferent application
4)We can design according to custom demand
5)Finish:zinc plating or powder coating
Why Powder Coated Wire Mesh Panels for Warehouse Beam ?
- safer:Better fire safty performance,meets stringent insurance requirements
- More durable:Does not warp,twist or sag,highly durable and maintenance free
- Hygienic:Does not allow dirt or dust to build up
- Easy to handle:Quick and easy to install,no fixing or fastening
- improves visibility:increases lighting and access for operators
- Versatile:Ideal for all storage,including cool rooms and freezers
- Flexible:Allow you to store skids,pallets or small parts in any loacation
Many options on reinforcement
Packing and loading way of Powder Coated Wire Mesh Panels for Warehouse Beam
Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack for Wire Storage Pallet Box
Welcome to Dalian Huameilong!
FAQ of Powder Coated Wire Mesh Panels for Warehouse Beam
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
Electro galvanized ,hot dip galanized, painting or powder coating is available.
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model and heavy duty(1000~1700kg) model available for your choice.
6, I have no much experience on the logisitcs products, any recommendation?
You could either choose from our hundreds of standard products or provide relevant information so we could design for you.
7, Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
8, I like your design, but couldnt find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
9, I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls understand the cost will be different.
10, I don' have drawing or picture available for th custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details - such as a) dimension b) loading capacity c)stackability d)operation environment e)what kind of stuff will be loaded in etc
11, What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size.
12, What is your average production lead time?
2-3 weeks against formal order and deposit.
13, Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/un-stacking
B) Overloading is prohibited
C) Environment request –indoor, dry and not humid circumstance, do not contact with any corrosive chemical material (for zn plated and powder coated proucts, no limitation for hot dip galvanized)
14, What happen in case any quality problem is identified after arrival?
We take full responsibility for any manufacturing defect, would either refund or reship good products to you.
------------FOR ANY OTHER INFORMATION, PLS DO NOT HESITATE TO CONTACT WITH OUR SALES TEAMS. WE ARE HERE 24HRS FOR YOU.----------
